The vacuum circuit breaker is named after its interrupting medium and the insulating medium of the contact gap after interrupting is high vacuum; it has the advantages of small size, light weight, suitable for frequent operation and interrupting without maintenance, and is more popularly used in the 3kV-40.5kV distribution network.
The components of vacuum circuit breaker are vacuum interrupter, electromagnetic or spring-operated mechanism, bracket and other parts.
Vacuum interrupter is the core component of vacuum circuit breaker, its main role is, through the excellent insulation of the vacuum inside the tube to make the medium and high voltage circuit cut off the power can quickly extinguish the arc and suppress the current to avoid accidents and accidents.
There are two kinds of operating mechanism: spring-operated mechanism and permanent magnetic operating mechanism.
The conductive circuit is divided into insulated cylinder form (vacuum interrupter is installed in the insulated cylinder) and sealed pole form (vacuum interrupter is installed in the epoxy resin).

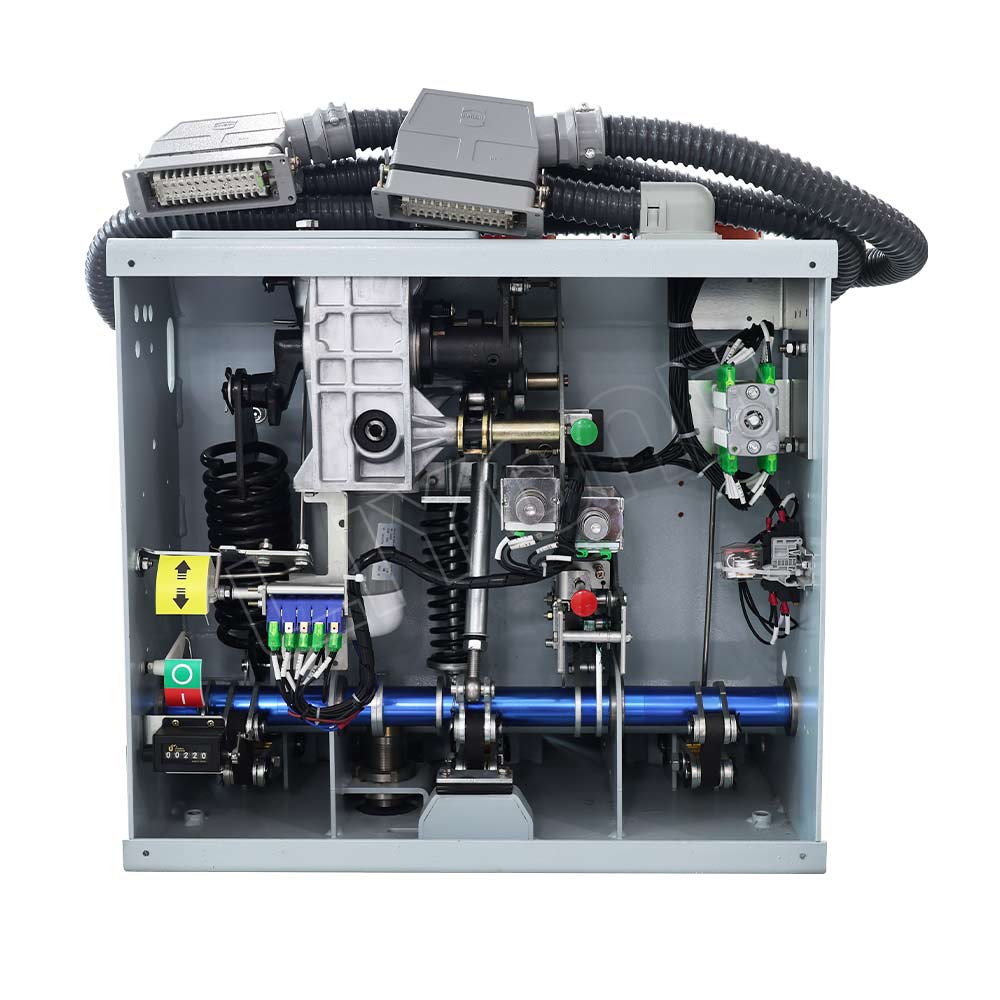

The VSG mechanism uses a cam (in the core module of the mechanism) to drive the spindle directly (in the frame spindle module) to reduce the transmission link and improve the transmission efficiency (no hinge connection). Reduce the energy input of the product and increase the service life of the product. Install the main circuit module, that is, complete the basic configuration of the vacuum circuit breaker. Then install the chassis car module, the contact arm, the contact, and the insulating sleeve to complete the configuration of the hand-cranked circuit breaker.

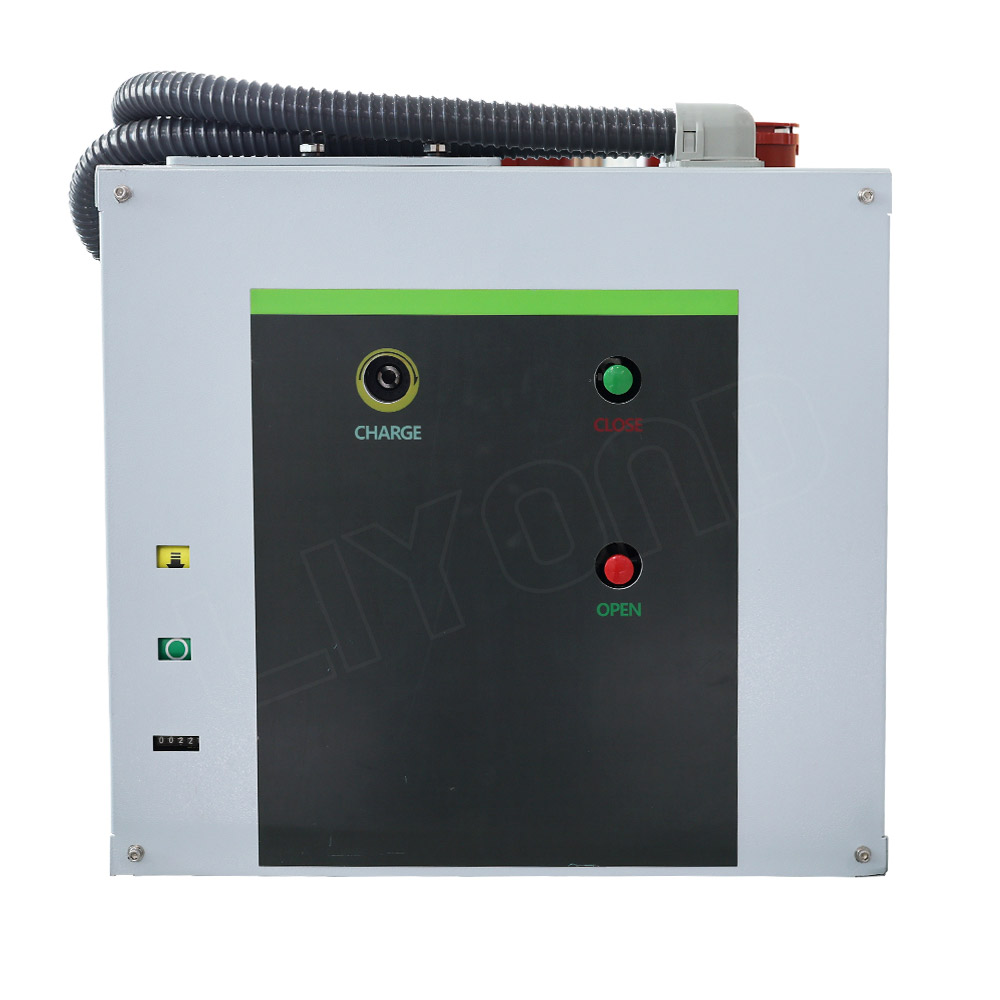

Features of CT68-12 vacuum circuit breaker
The CT68-12 vacuum circuit breaker adopts special contact material and interrupter with high breaking capacity and with very long electrical endurance.
The CT68-12 vacuum circuit breaker has simple structure, high breaking capacity, long endurance, all-round operating functions, no explosive danger and convenient maintenance. It is fit to control transport system and protect switch in powerhouse and transformer substation, especially fit to break important load or frequent operations in some places.
 |
 |
- Ambient temperature:-15ºC~+40ºC
- Altitude: ≤1000m
- Daily average relative humidity: ≤95%
- Monthly average relative humidity: ≤90%
- Earthquake intensity: ≤8 degree
- No fire, explosion, severe vibration, chemical corrosion and serious pollution
Q1: Are you a manufacturer or a trader?
A1: We are a leading professional manufacturer.
Q2: How long is your delivery cycle?
A2: It depends on your product requirements and quantity. Generally, 5 to 10 working days are required for delivery
Q3: What is your after-sales service?
A3: We can answer users' questions solve their problems 24 hours a day, and provide comprehensive technical support for all our products promptly.
Q4: How do you solve quality problems?
A4: Please provide detailed photos of the quality problems. Our technical and quality inspection departments will analyze them. We will give a satisfactory solution within 2 days.
Q5: Do you accept customized services?
A5: We provide OEM/ODM services and can print your logo on the products. Our professional technical and quotation team can provide satisfactory projects according to your drawings and parameters.
