Tubing & Fittings | Pneumatic Push-in Connectors & Air Hose (SOLH by Richge Technology)

     Brand: SOLH by Richge Technology (睿其格科技)

     Brand Advantage: Fully interchangeable with SMC and AirTAC standard pipeline systems, providing standardized, leak-proof and one-stop pneumatic piping solutions.

Overview

     Pneumatic tubing and push-in fittings are essential transmission components to connect FRL air units, solenoid valves, cylinders and vacuum assemblies. SOLH pipeline series adopts tool-free quick-plug structure to ensure stable air tightness, low pressure loss and fast on-site assembly. All specifications are fully compatible with mainstream international brands, supporting unified matching for the entire pneumatic system.

Main Product Series

1. Pneumatic Air Tubing

• PU Flexible Hose：High-flexibility polyurethane tube designed for drag chain reciprocating movement, cylinder wiring and vacuum circuits. Standard polyester PU fits general dry workshops; upgraded polyether PU resists hydrolysis and cutting fluid, suitable for food washing and humid working environments.
• PA12 Nylon Hard Hose：Rigid and pressure-resistant nylon tube for fixed high-pressure main air pipelines. Featuring excellent oil resistance and high-temperature stability, it maintains stable shaping under long-term pressure. Not applicable for frequent bending or drag chain movement.
• SPU Spiral Coiled Hose：Elastic retractable spring tube with 3-times stretching ratio and automatic shrinkage. It saves space and avoids messy wiring, perfectly matching foot valves and air blow guns for mobile workshop stations.

2. KQ2 Push-in Fittings

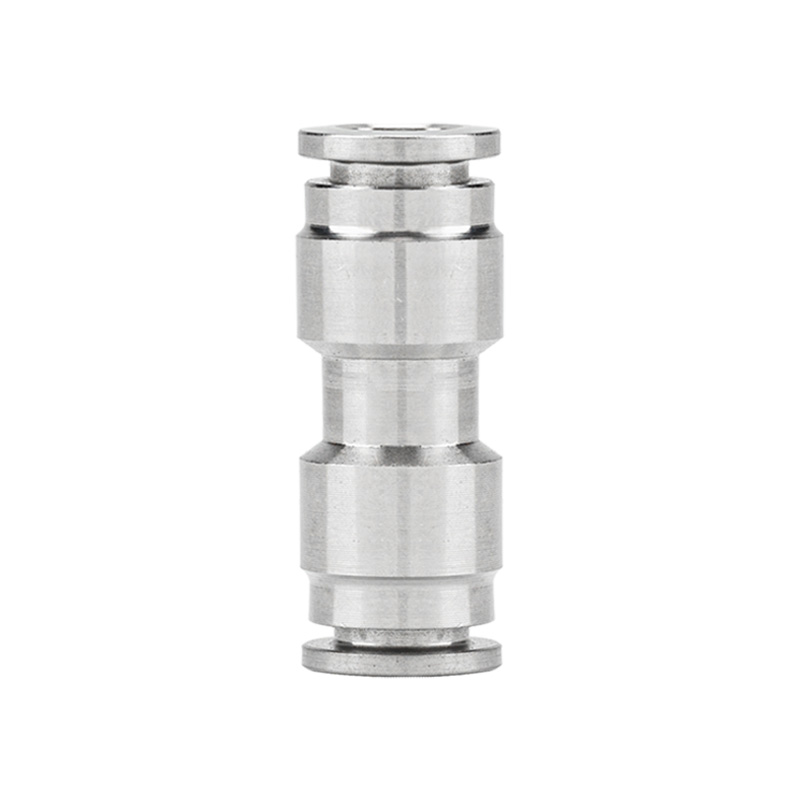

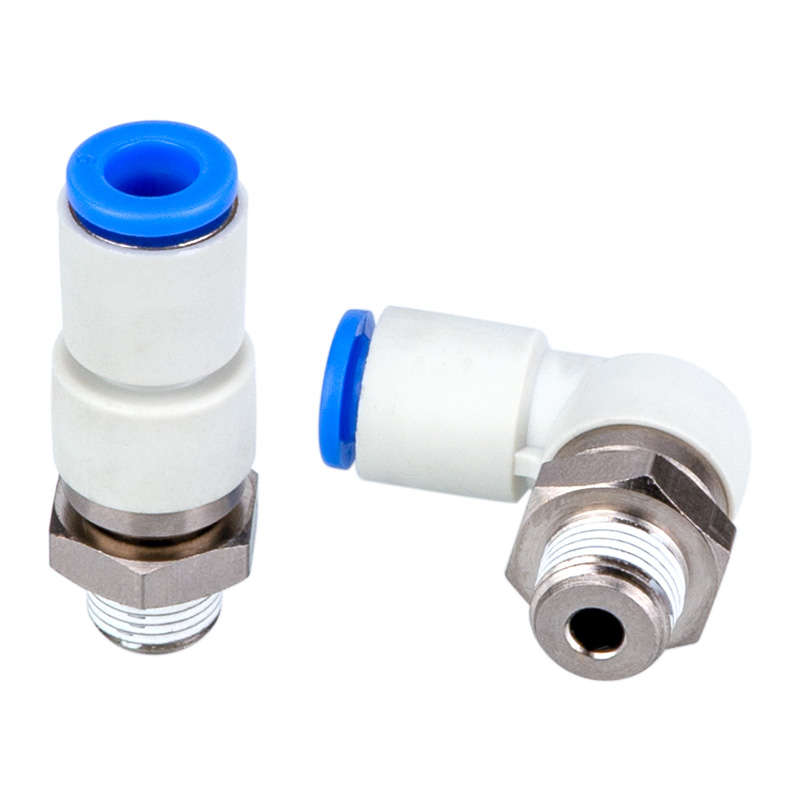

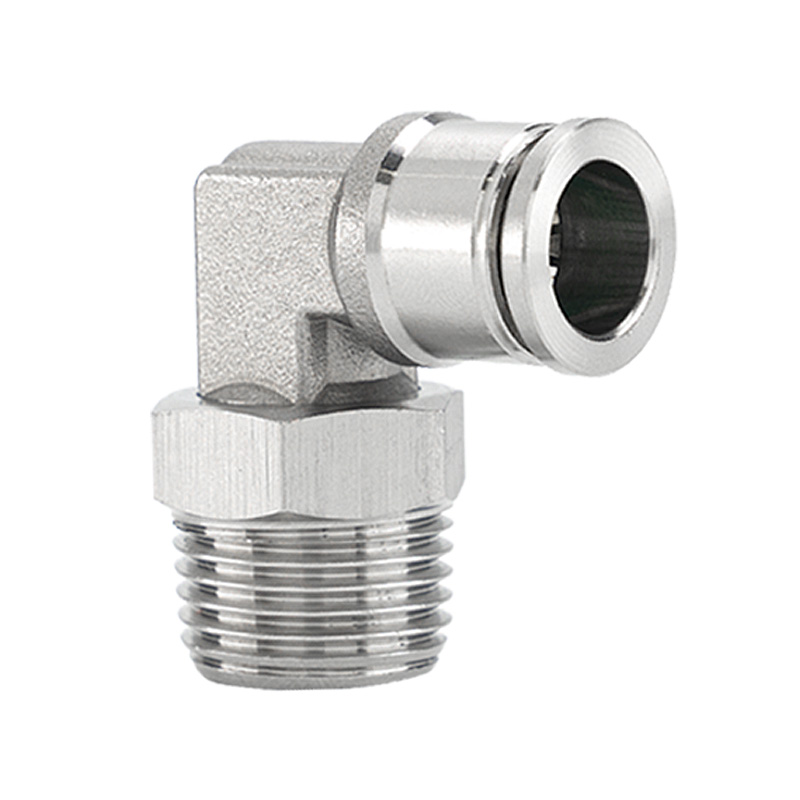

     Adopts nickel-plated brass thread and stainless steel collet structure, supporting vacuum negative pressure up to -100kPa and pneumatic pressure up to 1.0MPa. Full range types include straight, elbow, tee, cross and bulkhead fittings. Complete thread specifications cover M5, G1/8, G1/4 and G3/8. Tool-free plug-and-play design enables fast installation and disassembly by pressing the release collar.

3. Piping Auxiliary Accessories

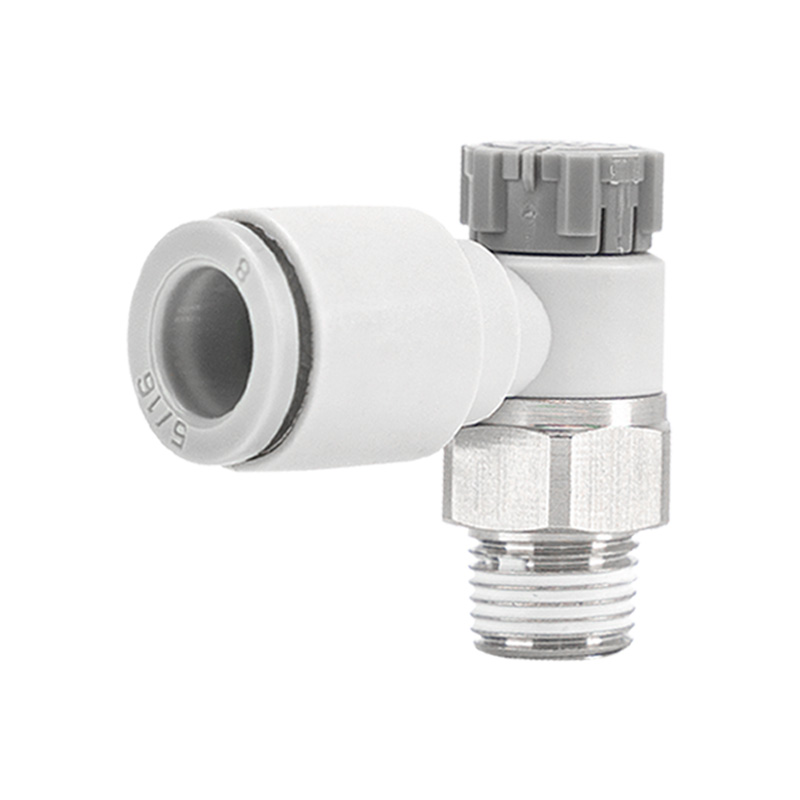

     Supporting full-system accessories including C110 air blow guns, AS flow control valves, AKH one-way check valves, plastic/metal silencers, ZFC vacuum filters and dedicated tube cutters。

General Technical Specifications

•  Working Pressure: PU Hose 0~0.8MPa; PA12 Nylon Hose 0~2.8MPa; Fittings -100kPa ~ 1.0MPa
•  Temperature Range: PU -25℃～+70℃; PA12 -40℃～+100℃
•  Sealing Material: Standard NBR; optional FKM oil-resistant and silicone food-grade seals

Core Product Advantages

•  Fully interchangeable with SMC and AirTAC, requiring no pipeline modification for direct replacement.
•  Tool-free quick plug assembly greatly reduces installation and maintenance time.
•  Three types of tubing cover flexible moving wiring, fixed high-pressure pipelines and mobile retractable scenarios.
•  Complete matching with SOLH FRL units, solenoid valves, cylinders and vacuum ejectors for one-stop pneumatic solutions.

Selection & Installation Notes

•  PU flexible hose is dedicated for drag chain and frequent moving wiring; PA12 rigid tube is only for fixed high-pressure main pipelines.
•  PA nylon hose is prohibited for vacuum circuits; vacuum piping must adopt oil-free dry PU tubing without lubricator oil mist.
•  Cut the tube flat vertically and insert fully into the fitting; never pull the tube out without pressing the release collar.

Application Industries

     Widely applied in 3C electronic automation, CNC machine tools, packaging machinery, food washing equipment, new energy production lines, logistics sorting systems and injection molding automation machinery.
