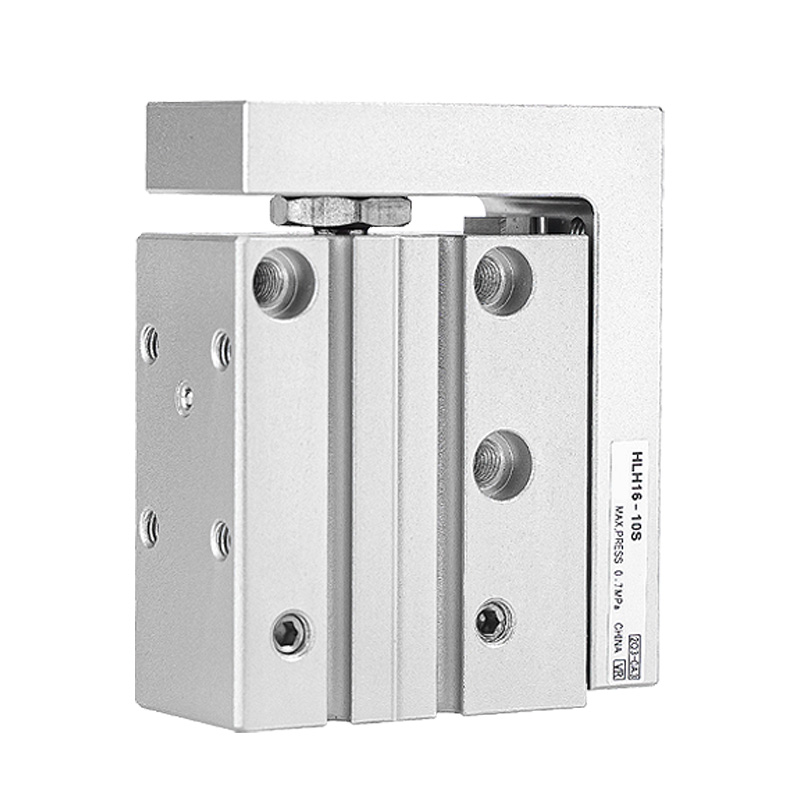

HLH Series Side Rail Precision Linear Slide Cylinder

HLH Series Side Rail Precision Linear Slide Cylinder (Recirculating Ball Guide)

Brand: SOLH by Richge Technology

Product Positioning

     SOLH HLH series is a low-profile linear slide cylinder equipped with integrated side-mounted L-shaped recirculating ball linear guide rail. Featuring ultra-thin slim body design to save installation space, it is specially developed for precision assembly, light-load positioning and automation equipment with confined mounting clearance.

Series Overview

     -- Series Code: HLH (single side rail design, no symmetrical twin rail variant)

     -- Guiding System: Side-mounted recirculating ball linear guide (L-type integrated rail)

     -- Operation Type: Double acting reciprocating cylinder

     -- Applicable Medium: Clean compressed air (filtration precision ≥40μm)

     -- Core Competitive Advantages: Ultra thin profile, 4-direction mounting holes, 3-direction air port layout, excellent space utilization

Core Technical Specification Table

Structural & Performance Advantages

  1. Integrated Side L-Type Recirculating Ball Guide Rail

     One-piece rail and slide carriage structure delivers superior straightness and anti-rotation precision; ultra-narrow thin body greatly reduces overall installation width.

  2. Universal 4-Way Mounting Layout

     Mounting tapped holes machined on bottom, side, front and rear end faces of main body; flexible fixing from four directions to fit complex compact equipment layout.

  3. Flexible 3-Way Air Port Configuration

     Air inlet/outlet ports available at rear end, lateral side and front face; highly free piping arrangement for neat and tidy circuit routing.

  4. Dual Fixture Mounting Surfaces

     Tapped holes for tooling mounting on both top surface and front side of slide carriage; positioning pin holes on top plane to guarantee accurate jig positioning.

  5. Pre-Machined Sensor Grooves

     Standard sliding slots on both sides of cylinder body for easy installation and adjustable positioning of magnetic reed switches.

  6. Built-In Floating Joint

     Floating connection between piston rod and slide carriage eliminates lateral side load stress and protects internal piston assembly from deflection damage.

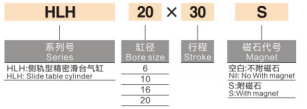

Model Code Naming Rule

   1. Example: HLH16×30S

     -- HLH: Series code for side rail thin slide cylinder

     -- 16: Cylinder bore diameter (mm)

     -- 30: Rated stroke length (mm)

     -- S: Built-in permanent magnetic ring (standard factory configuration)

Theoretical Output Force Table (Unit: N)

Model Selection Guidelines & Typical Applications

  1. Selection Key Points

     -- Space constraint priority: Choose HLH when installation clearance is extremely limited, requiring ultra-thin narrow slide actuator.

     -- Load characteristic: Suitable for light-duty reciprocating motion without obvious eccentric side load, high repeat positioning accuracy demand.

     -- Comparison with HLQ series: HLH thinner & space-saving; HLQ twin rail with higher rigidity and larger load capacity.

  2. Typical Industrial Application Scenarios

     -- Precision assembly equipment for 3C electronics & semiconductor manufacturing

     -- Mini automated testing jigs and inspection stations

     -- Light-duty precision clamping, pushing and positioning mechanisms

     -- Reciprocating light-load motion units installed inside narrow compact machinery

One Sentence Summary

     SOLH HLH ultra-thin side L rail linear slide cylinder adopts recirculating ball guide, supports 4-way mounting and 3-way air port layout with built-in magnetic ring as standard, the ideal light-load precision positioning pneumatic actuator for narrow-space 3C and semiconductor automation equipment.
