Pneumatic Components Series

Pneumatic Components Series | Complete Pneumatic Solutions (SOLH by Richge Technology)

Brand: SOLH by Richge Technology (睿其格科技)

Core Brand Positioning

SOLH is the proprietary full-series pneumatic brand of Richge Technology (睿其格科技). All SOLH pneumatic parts are self-developed, manufactured and quality-inspected in-house, fully 1:1 dimension & performance interchangeable with SMC, AirTAC, FESTO and other top global pneumatic brands for direct plug-and-play replacement without equipment modification. We deliver integrated closed-loop pneumatic systems and one-stop bulk sourcing service to lower clients’ procurement costs and shorten lead times.

Overview

Short Intro: SOLH by Richge Technology delivers full-series, fully interchangeable pneumatic components and one-stop automation solutions. Covering air treatment, control valves, cylinders, vacuum systems and piping accessories, our high-precision, low-leakage pneumatic parts perfectly replace SMC, AirTAC and FESTO. Stable performance and cost-effective for global industrial automation.

SOLH provides one-stop complete pneumatic automation solutions, covering air preparation units, control valves, pneumatic cylinders, vacuum components, tubing, fittings and full auxiliary parts. Suitable for 0.1–0.8MPa standard industrial air systems, widely used in electronics, packaging, machine tools, new energy and food machinery.

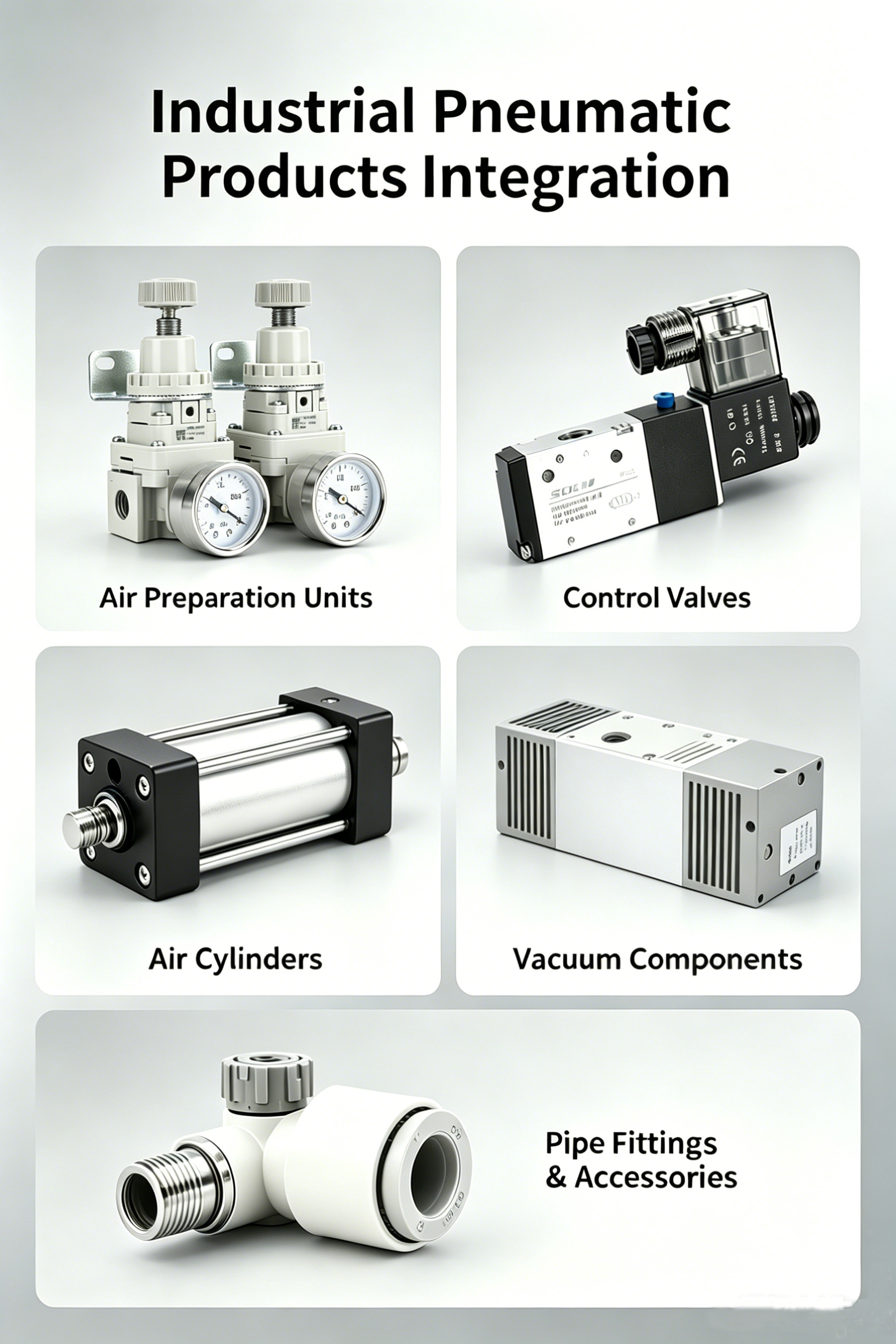

Main Product Range

1. Air Preparation Units

AF filter, AR regulator, AL lubricator, AFC 2-unit, AC 3-unit service unit for air cleaning, pressure stabilization and system protection.

2. Directional Control Valves

Solenoid Valves: 2P/2V 2/2-way, 3V 3/2-way, 4V 5/2-way, 4M NAMUR valve for cylinder & pipeline valve control.
Foot Valves: 3F/3FM 3/2-way, 4F 5/2-way with lock/safety cover options for manual station operation.
Manual & Mechanical Valves: VHK rotary valve, HSV slide shut-off valve, M5 mechanical limit valve.
Manifold Bases: Multi-station valve islands for centralized installation.

3. Pneumatic Cylinders

Standard SC/SI/SU, mini MAL/MA, ultra-thin SDA/CQ2, single-acting, clamping, stopper and rotary cylinders. Custom stroke, rod extension and high-temperature types available.

4. Vacuum Components

ZU/ZB vacuum ejectors, ZP/ZPT suction cups, inline filters and vacuum control valves for automatic handling.

5. Tubing & Fittings

PU straight/SPU coiled/PE-PU hydrolysis-resistant/PA12 hard tubing; full KQ2 push-in fittings; air blow guns, speed controllers and silencers.

6. Auxiliary Parts

Check valves, magnetic switches, rod joints, pressure gauges and mounting accessories.

General Specifications

Working Pressure: 0.1–0.8MPa (Recommended: 0.4–0.6MPa)
Temperature: -20℃～+70℃ (Custom high-temp up to 120℃)
Standard Seal: NBR; Optional FKM / Silicone
Medium: Filtered compressed air (≥40μm)
Durability: Valves ≥20 million cycles; Cylinders ≥10 million cycles

Core Advantages

Full-series one-stop procurement, cost & lead time saving
Fully interchangeable with international famous brands
Ultra-low leakage precision machining for energy saving
Multiple seals for dry, oily, humid and clean environments
Support standard & non-standard customization

Typical Circuit Matching

Double-acting cylinder: AFC Unit → 4V Manifold → PU Tube → SC/SDA Cylinder
Vacuum handling: Filter → 3V Valve → Vacuum Ejector + Suction Cup
Foot control station: AFC → HSV → SPU Hose → 4F Foot Valve + C110 Blow Gun
Pipeline valve control: Air Unit → 4M NAMUR Valve → Pneumatic Actuator

Application Industries

3C electronics, food packaging, machine tools, stamping equipment, logistics conveying, new energy, water treatment and general industrial automation.

Safety & Installation Precautions

Air Source Requirement: Equip with AFC air service unit to filter water, oil and dust; contaminated air will wear seals and shorten service life.
Pressure Limit: Continuous working pressure shall not exceed 0.8MPa; maximum test pressure 1.2MPa to avoid tube burst and seal damage.
Environment Adaptation: Standard parts are for -20℃～+70℃ dry/oily conventional conditions; customized high-temperature/corrosion-resistant models for extreme scenarios.
Tubing Selection Rules: PA12 hard tube for fixed high-pressure main pipelines; flexible PU tube for drag chain reciprocating movement, no cross use.
Vacuum Circuit Rule: Only direct-acting 3V and VHK valves apply to vacuum systems; pilot solenoid valves are not available for negative pressure.
Operation Safety: Adopt safety-covered foot valves for machine tools; cut off main air supply and exhaust residual pressure before maintenance to prevent accidental injury.
Assembly Standard: Seal idle manifold ports with blank plates; install buffer speed controllers for long-stroke cylinders to prevent impact failure.
Meta Title: SOLH Full Pneumatic Components | Valves, Cylinders, Vacuum & Tubing Solutions | Richge Technology
Meta Description: Richge Technology SOLH full-series pneumatic components, fully interchangeable with SMC AirTAC FESTO, one-stop industrial pneumatic automation solutions.

VBA Booster Regulator

VBA pneumatic booster valves are power-free air amplifiers built on self-developed piston area difference boosting technology, delivering stable 2× and 4× pressure amplification with matched VBAT air tanks for instant high-pressure airflow. Fully pneumatic automatic cycling ensures explosion-proof & energy-saving performance, while built-in buffers cut noise and extend service life to over 50 million cycles with easy installation. We maintain sufficient stock of 5L-38L air tanks with growing annual sales. Widely adopted for cylinder clamping reinforcement, riveting, dispensing and mold high-pressure blowing, they offer a cost-effective local boosting alternative without upgrading whole plant air systems.

VBA Energy Saving Compact type Booster Regulator

Richge Technology compact energy-saving VBA pneumatic booster regulator adopts self-optimized high-efficiency boosting air circuit independent R&D technology, cutting air consumption effectively. The ultra-small lightweight body supports dual mounting ways with stable low-ripple high-precision pressure output. Fully pneumatic explosion-proof structure realizes maintenance-free long service life. We keep sufficient inventory and rising annual sales volume. Widely applied to auto manufacturing, automated clamping and mold cleaning, it offers economical local pressure boost without overall factory air system transformation.
