MSQ Series Rack & Pinion Rotary Actuator Table (SOLH Richge Technology)

Brand: SOLH by Richge Technology

Product Overview

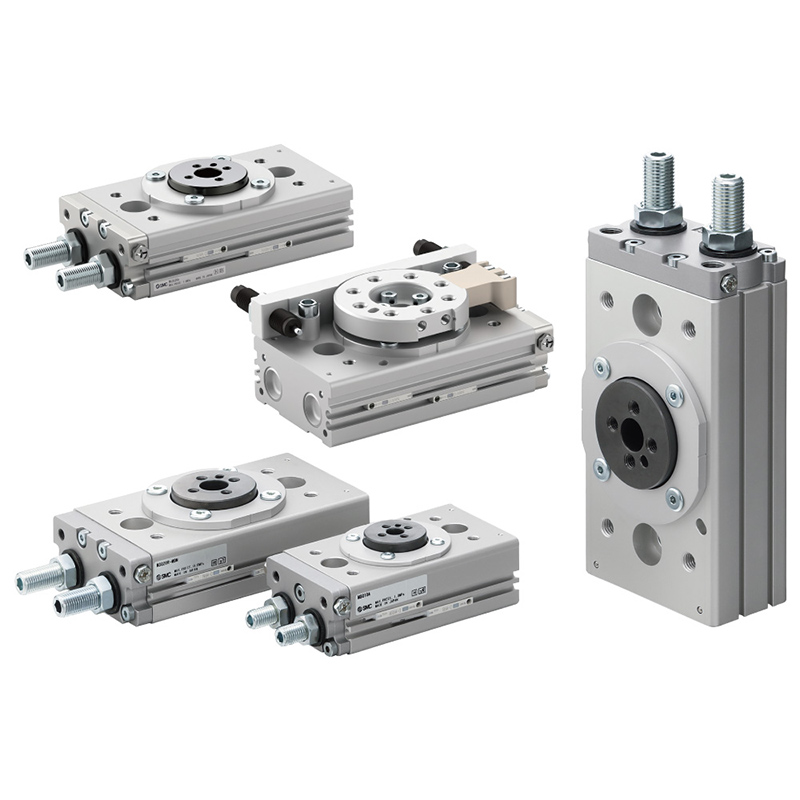

     SOLH MSQ series adopts dual piston symmetrical rack & pinion driving structure, split into two sub-series: MSQB standard grade and MSQA high precision grade. It features integrated circular mounting table with central hollow through hole, swing angle continuously adjustable from 0~190°.

Symmetric dual piston rack-pinion delivers 3~4 times larger output torque and superior radial/axial load capacity compared with vane-type CRQ rotary cylinders. Two shock absorption options available: built-in rubber buffer or integrated hydraulic buffer. Dual air port layout (end face / side front) simplifies tubing layout; compatible magnetic reed switches for rotary position signal feedback. Widely used for automated indexing, workpiece flipping and precision positioning stations.

Series Classification & Selection Table (Precision + Buffer Matching)

Complete Model Coding Rules

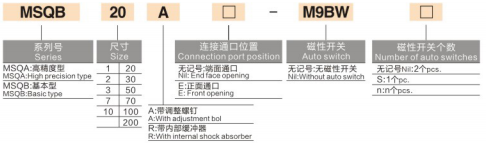

  1. Coding Rule 1: MSQB20A-□-M9BW-□

     Example: MSQB20A-M9BW

     -- MSQB / MSQA: Series identifier

        MSQB = Standard basic series; MSQA = High precision precision series

     -- 20: Frame size (available: 10 / 20 / 30 / 50 / 70 / 100 / 200)

     -- A / R: Angle adjustment & buffer code

        A = Dual end angle adjustment screws; R = Built-in hydraulic shock absorber; no suffix = only rubber buffer

     -- Middle box: Air port position

        Blank = End face air ports; E = Side front air ports

     -- M9BW: Magnetic switch model

        Blank = Without magnetic switch; M9BW / M9BL universal reed sensor compatible

     -- Last box: Magnetic switch quantity

        Blank = Standard 2 pcs; S = Single piece; Custom figure = customized quantity

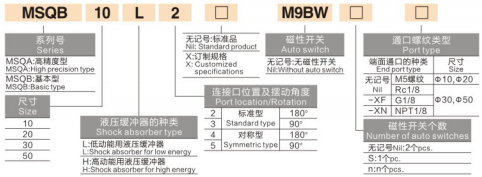

  2. Coding Rule 2: MSQB10L2-□-M9BW-□-□

     Example: MSQB10L2-M9BW

     -- MSQB: Standard series; frame size 10/20/30/50

     -- L / H: Hydraulic buffer kinetic energy grade (only for R hydraulic version)

        L = Low kinetic energy hydraulic buffer; H = High kinetic energy hydraulic buffer

     -- Digit 2/3/4/5: Fixed swing angle specification

        2 = Standard 180°; 3 = 90°; 4 = Symmetric 180°; 5 = Symmetric 90°

     -- Middle box: Custom marking X, blank = standard stock model

     -- M9BW: Magnetic switch, blank = no sensor equipped

     -- Penultimate box: Magnetic switch quantity; blank=2pcs, S=1pc

     -- Last box: Air port thread specification

        Blank = M5 thread (only for size 10/20); XF = G1/8; XN = NPT1/8 American thread

Core Structural Advantages

  1. Symmetric Dual Piston Rack & Pinion Drive

     -- Dual synchronous pistons push gear synchronously, eliminating unilateral backlash; uniform torque output with zero rotation jitter, far higher load capacity than single-piston vane cylinders.

  2. Integrated Rotary Table with Locating Pin Holes

     -- Table pre-machined positioning pin holes and standard mounting tapped holes for direct jig/workpiece locking, easy alignment and high integral rigidity. Central hollow through hole (φ6~φ24) allows air tubing and sensor wiring to pass through center, neat internal machine layout.

  3. Dual Air Port Layout

     -- Two piping options: end face air inlet or side front E-type port, flexible tubing routing for compact confined equipment without mechanical interference.

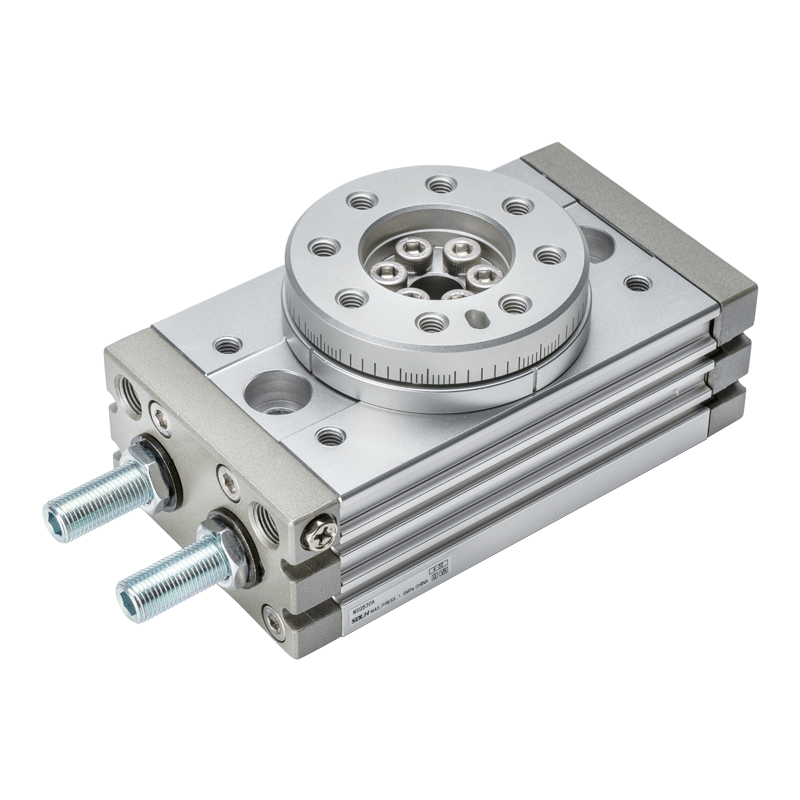

  4. Independent Dual-End Angle Adjustment Screws (Suffix A)

     -- Separate limit screws on both ends to independently restrict clockwise and counter-clockwise stroke; swing range infinitely adjustable within 0~190°, factory default preset to 190°.

  5. Two Optional Shock Absorption Systems

     -- Standard version: Dual-end rubber bump buffer for noise reduction under low-speed light load

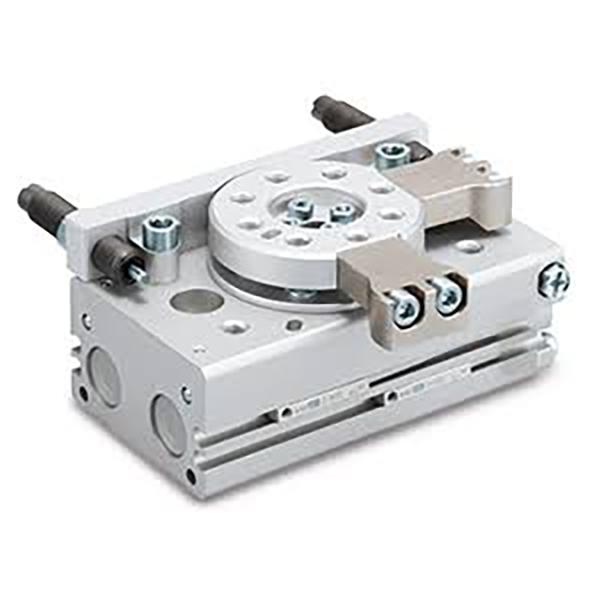

     -- -R hydraulic buffer version: Integrated oil shock absorber (L low kinetic / H high kinetic grades) absorbs heavy impact at high speed, minimizes stop vibration and protects fixtures & workpieces

  6. Magnetic Position Feedback Compatible

     -- Built-in permanent magnetic ring inside cylinder body, compatible with M9BW / M9BL reed switches to transmit 0°/90°/180° in-place signals to PLC for automatic interlock logic.

  7. Precision Ball Bearing Support for MSQA

     -- MSQA high-precision model adopts class precision ball bearing assembly; radial & axial runout ≤0.01mm, repeat positioning accuracy ±0.01mm. MSQB basic version meets general automation positioning requirements.

Universal Standard Technical Specifications

  1. Drive Mode: Double acting dual piston rack & pinion

  2. Operating Pressure Range

    -- Rubber buffer type: 0.1~1.0 MPa

     -- -R hydraulic buffer type: 0.1~0.6 MPa

  3. Proof Test Pressure: 1.05 MPa

  4. Ambient Temperature: 0~60℃ (no ice inside air circuit)

  5. Adjustable Swing Range: 0~190° infinitely adjustable, factory preset 190°; fixed angle 90° / 180° optional

  6. Lubrication: Pre-filled long-life grease at factory, lubrication-free design compatible with oil-free clean dry air

  7. Applicable Medium: Filtered dry compressed air (≥40μm filtration precision)

Torque & Load Bearing Capacity Table (0.5MPa Supply Air)

Buffer Max Kinetic Energy Comparison Table

Complete Model Selection Rules

  1. Precision Grade Selection

     -- Chip positioning, PCB optical inspection, precision assembly → MSQA high precision series

     -- General workpiece flipping, material diverting & sorting → MSQB standard basic series

  2. Buffer Matching Rule

     -- Low speed light load, cost control: Non-R rubber buffer model

     -- High-frequency fast cycle, heavy workpiece impact: Select -R hydraulic buffer; light impact L grade, heavy impact H grade

  3. Swing Angle Selection

     -- 90° flipping loading/unloading: Suffix 3 / 5

     -- 180° reciprocating indexing, double-sided detection: Suffix 2 / 4

     -- Custom arbitrary limited swing range: Universal model with A adjustment screw

  4. Air Port Layout

     -- Compact confined internal machine space: E side front port version

     -- Standard external exposed piping: Default end face port

  5. Position Signal Feedback

     -- In-place signal required for PLC interlock: Equip M9BW magnetic switches (2pcs standard); only single-side detection select S single switch

  6. Thread Specification

     -- Size 10 / 20 small frames default M5 thread; medium-large 30/50 optional G1/8 (XF), NPT1/8 (XN) American thread

Typical Industrial Application Scenarios

     -- 3C Electronics Precision Automation: Chip rotary positioning, PCB multi-angle optical inspection, micro-component indexing assembly

     -- Packaging Production Lines: Bottle capping stations, carton 90° direction change, rotary label attaching

     -- Machine Tool Fixtures: Workpiece flipping, stamping jig indexing positioning

     -- Logistic Sorting Equipment: Material diverting, pipeline rotary stop mechanism

     -- End Effector of Mini Manipulators: Robot joint rotation, vacuum chuck pick-and-place flipping

     -- Precision Testing Equipment: Vision inspection rotary table, multi-angle air tightness test jig

Supporting Pneumatic Circuit Matching Solutions

  1. Standard General Circuit

     -- AFC air source two-point combination → 4V210 5/2 solenoid valve → PU air tubing → MSQ rotary table (M9BW magnetic switch wired to PLC)

  2. Explosion-Proof Workshop Circuit

     -- Explosion-proof air source treatment unit → 50-VFE explosion-proof 5-way solenoid valve → PU flexible hose → MSQB/MSQA rotary cylinder for hazardous environment

  3. Mini Precision Micro Station

     --AC1500 mini air regulator filter → 3V series 3/2 solenoid valve → PU4 thin tubing → MSQ10 / MSQ20 small rotary table

One Sentence Summary

     SOLH MSQ dual piston rack & pinion rotary table splits into MSQB standard and MSQA high precision grades, supports 0~190° adjustable swing, dual rubber/hydraulic shock absorption, dual end/side air port layout and central hollow wiring hole, delivering 3~4x higher torque than vane cylinders as universal rotary indexing actuator for electronics, packaging, machine tool and testing automation lines.
