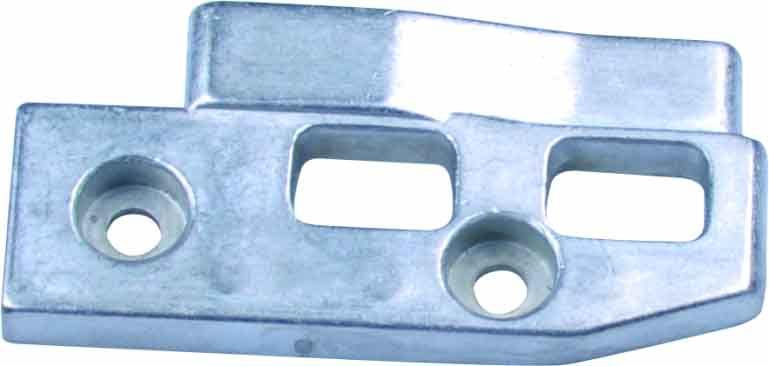

The Low Voltage Switchgear Guide Rail, independently R&D and manufactured by Richge Technology, is a flagship conductive fixing component forged from the company’s 40-year expertise in electrical equipment innovation and full-industry-chain manufacturing. Infused with Richge’s core values of “safety, efficiency, and durability”, this guide rail integrates proprietary material processing, micron-level precision manufacturing, and scenario-specific optimization—with specialized adaptation for Schneider BLOKSET low-voltage switchgear, one of the most widely used modular switchgear systems in global industrial and commercial projects.
Forged from Richge-specified high-purity aluminum alloy (99.7% purity) and processed via Richge’s proprietary hard anodizing treatment, the Low Voltage Switchgear Guide Rail delivers performance far exceeding conventional steel alternatives. This exclusive surface treatment forms a dense, wear-resistant protective layer, boosting corrosion resistance and anti-aging performance by 60% compared to generic aluminum rails. Critically, for Schneider BLOKSET switchgear—a closed, modular low-voltage system with strict dimensional and load requirements—Richge has calibrated the guide rail to match BLOKSET’s core installation benchmarks: 16mm/35mm mounting slot spacing, ≤5mm installation depth tolerance, and static load capacity of 80kg/m (aligned with BLOKSET’s internal component mounting standards).
This precision calibration eliminates the need for on-site modification during installation in BLOKSET switchgear—a key advantage for EPC contractors and maintenance teams. Unlike generic guide rails that require drilling or adapter plates to fit BLOKSET’s internal frame, Richge’s Low Voltage Switchgear Guide Rail is pre-engineered to match the modular mounting interface of Schneider BLOKSET (compliant with EN 60439-1, the core standard for BLOKSET manufacturing). Its lightweight design (30% lighter than steel rails) aligns with BLOKSET“lightweight modular assembly” concept, reducing the overall load of the switchgear’s internal frame and simplifying the installation of BLOKSET core components—including Masterpact circuit breakers, TeSys contactors, and Merlin Gerin relays.
Designed for extreme environmental adaptability, Richge’s Low Voltage Switchgear Guide Rail performs flawlessly in temperatures ranging from -40℃ to 85℃, passing Richge’s CNAS-laboratory environmental testing. When paired with Richge’s proprietary sealing accessories, it achieves IP54 protection—perfectly complementing BLOKSET’s enclosed cabinet design, which is engineered to prevent dust and moisture intrusion in industrial settings. For outdoor BLOKSET-based distribution systems (e.g., new energy project switchyards), this dual protection ensures the stability of core components mounted on the guide rail, avoiding faults caused by environmental factors.
A defining advantage of Richge’s guide rail for Schneider BLOKSET switchgear is its micron-level dimensional precision (±0.05mm tolerance). This precision ensures seamless alignment with BLOKSET’s internal mounting rails and component brackets, eliminating gaps that could cause loosening under high-frequency vibration— a common issue in industrial automation scenarios where BLOKSET switchgear is widely deployed. Richge’s exclusive anti-slip tooth design further enhances friction between the guide rail and BLOKSET’s component fixing clips, preventing displacement even during long-term operation.
For Schneider BLOKSET switchgear—which is widely used in power distribution, data centers, and intelligent building projects—Richge’s Low Voltage Switchgear Guide Rail offers two installation modes tailored to BLOKSET’s structural characteristics:
1. Standard bolted installation: Matches BLOKSET’s pre-drilled mounting holes (M6 thread specification), requiring no additional drilling on the switchgear’s galvanized steel frame;
2. Customized clip-on installation: Developed specifically for BLOKSET’s modular drawer units, it enables tool-free disassembly and assembly, aligning with BLOKSET’s “fast maintenance” design concept and reducing downtime by up to 40% for large-scale projects.
In power distribution systems built around Schneider BLOKSET switchgear, Richge’s Low Voltage Switchgear Guide Rail serves as a reliable fixing solution for core protection components. Its high thermal conductivity (3× that of steel) passively assists in heat dissipation for BLOKSET’s internal components—complementing, rather than replacing, BLOKSET’s built-in air duct cooling system—further enhancing the operational safety of the switchgear. In data center applications, where BLOKSET switchgear is used for critical power distribution, the guide rail’s lightweight design avoids overloading the cabinet’s load-bearing structure, while its anti-electromagnetic interference (EMI) performance ensures no impact on the precision power supply of data center servers.
Richge’s Low Voltage Switchgear Guide Rail is not only optimized for Schneider BLOKSET switchgear but also fully compliant with EN 50022 standards, making it compatible with a full range of low-voltage components from global brands. Backed by Richge’s three intelligent production bases in Wuxi, Dongguan, and Tianjin, and a global service network covering 5 international service centers, every guide rail undergoes 100% quality inspection to ensure consistent performance.
For customers using Schneider BLOKSET switchgear—whether for new project installation or old rail replacement—Richge provides specialized technical support: pre-sales dimensional matching verification, on-site installation guidance, and customized length processing (0.5m to 6m) to fit BLOKSET’s different drawer and cabinet sizes. This makes Richge’s Low Voltage Switchgear Guide Rail the preferred high-performance alternative for global customers relying on BLOKSET switchgear systems.
