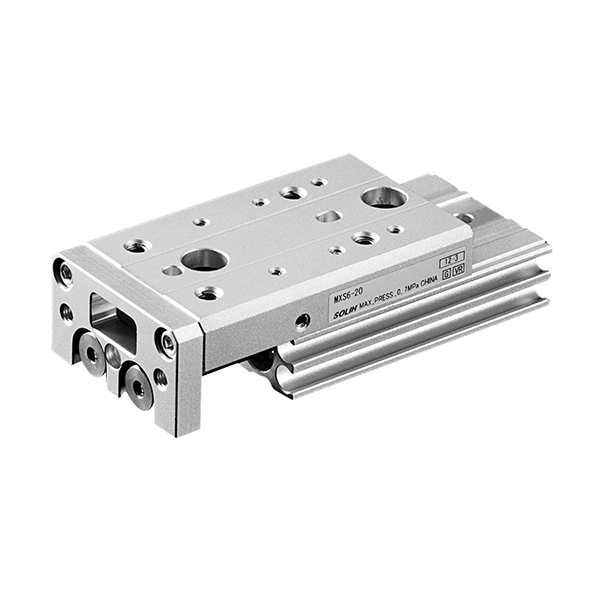

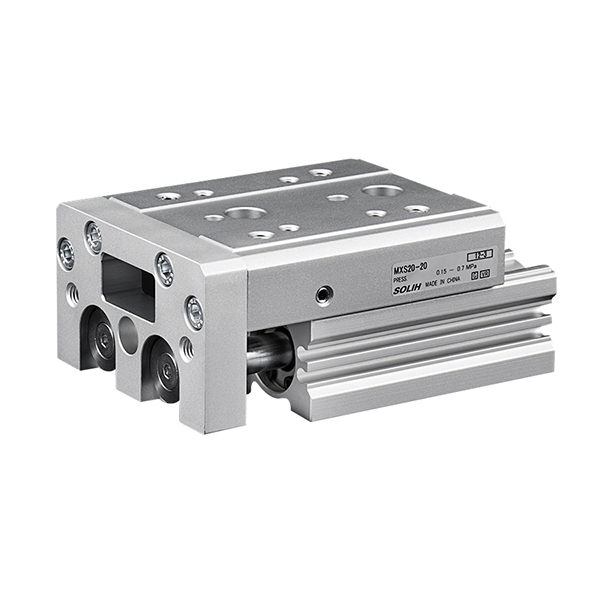

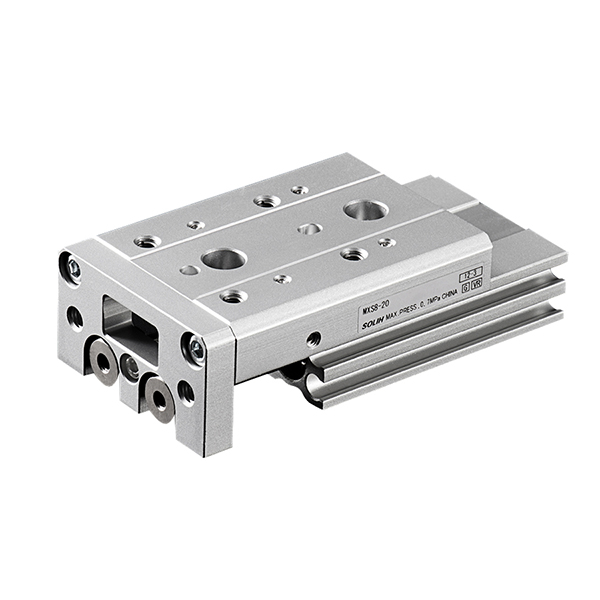

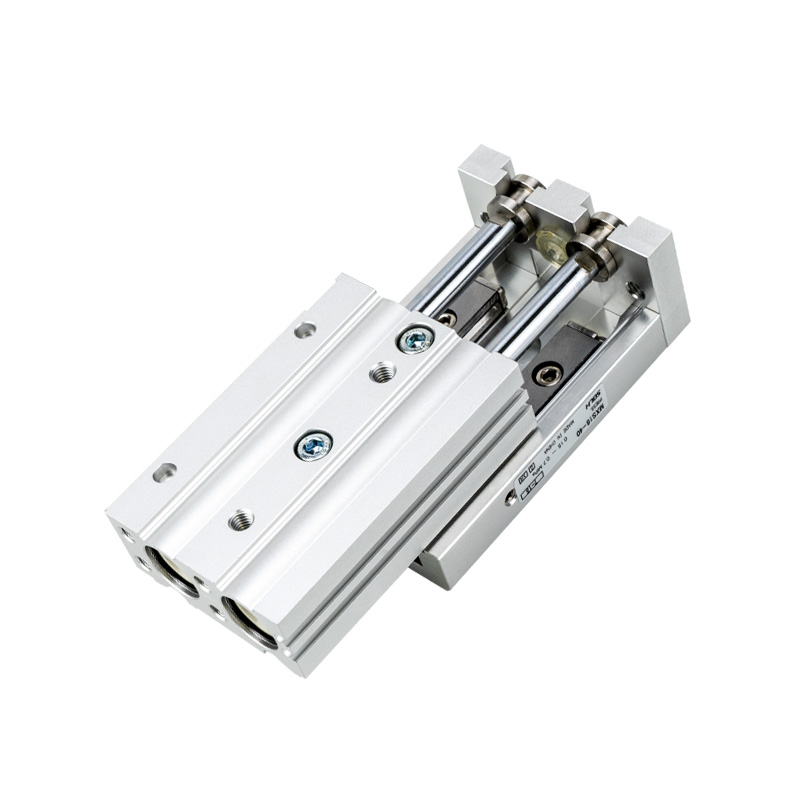

MXS Series Pneumatic Slide Table | Cross Roller Guide Dual-Cylinder Type

Brand: SOLH by Richge Technology

Product Overview

     The SOLH MXS series is a high-rigidity, high-precision integrated pneumatic slide table equipped with dual-piston driving structure and professional cross roller guide rails. Featuring ultra-thin compact body, zero-clearance preloaded guide system and doubled output thrust, it delivers ultra-stable linear motion with repeat accuracy up to ±0.01mm. The all-in-one integrated design greatly reduces equipment volume compared with traditional split cylinder + external guide combinations. It is widely applied in precision linear transfer, alignment assembly, electronic and semiconductor tooling, serving as the optimal upgraded replacement for conventional linear driving solutions.

Core Structure & Working Principle

     -- Dual-Piston Driving System: Adopts double-acting dual-piston structure, providing twice the thrust of single-cylinder slides with the same bore size. It ensures highly synchronous operation and effectively eliminates motion deflection and swinging during high-frequency movement.

     -- Premium Cross Roller Guide Rail: Built-in high-precision cross roller guide with preload design, zero running clearance, excellent structural rigidity and strong resistance to radial load and torque deflection. It stably maintains ±0.01mm ultra-high repeat positioning accuracy for long-term cyclic operation.

     -- Integrated All-in-One Design: The cylinder and slide table are perfectly integrated as a single unit, reducing overall installation volume by 30%~50% compared with split-type structures. It requires no manual alignment during installation, greatly improving assembly efficiency and structural consistency.

     -- Flexible Three-Sided Mounting: Supports bottom, side and axial three-direction installation with preset precision positioning pin holes. It supports direct stacking installation and side fixed mounting, adapting to diversified compact equipment layout demands.

     -- Built-In Sensor Adaptation: Equipped with standard internal magnetic ring, with reserved embedded grooves on the body compatible with D-M9□ and A93 series magnetic switches. The flush-mounted design avoids structural interference and ensures accurate stroke position feedback.

Complete Model Coding Rule

   1. Model Example: MXS16-50AS-M9BW

   2. Standard Order Reference Example

     -- MXS20-75A-FR-M9NL: Bore 20mm, stroke 75mm, dual-end stroke adjustment, axial piping, PNP magnetic switch with 3m wire length

General Core Technical Specifications

Output Force & Load Reference Chart (@0.5MPa, Horizontal Installation)

Note: Load capacity decreases with longer stroke and higher speed; safety factor ≥2; vertical load requires allowable torque verification

Application Scenarios & Selection Guidelines

   1. Priority Application Scenarios for MXS Series

     --  Ultra-High Precision Positioning & Transfer: Ideal for precise linear transfer and alignment of electronic components, terminals, optical lenses and miniature modules with strict ±0.01mm positioning requirements.

     -- Space-Limited Compact Equipment: Ultra-thin integrated structure reduces equipment height by 30% compared with ordinary slide tables, perfectly fitting miniaturized and highly compact automated stations.

     -- High-Rigidity & Anti-Deflection Working Conditions: Cross roller guide design delivers excellent torque resistance and eccentric load tolerance, suitable for robot Z-axis driving and high-precision assembly stations with complex force conditions.

     -- High-Frequency Short-Stroke Cyclic Operation: Stable for long-term high-frequency operation within 10~50mm short stroke, maintaining consistent precision without offset or jitter.

     -- Structural Simplification & Cost Reduction: Integrated cylinder and guide structure completely replaces traditional split "cylinder + external guide" combination, simplifying mechanical design and lowering assembly and maintenance costs.

Professional Selection Key Points

     -- Bore Size Selection: Match bore size according to workpiece weight and installation mode. Control horizontal load within 50% of rated value and vertical load within 25% of rated value to ensure stable operation.

     -- Stroke Selection: Reserve 5~10mm stroke margin during model selection. Choose AS/AT/A stroke adjuster (0~5mm fine adjustment) if precise stroke trimming is required.

     -- Mounting Direction Matching: Bottom mounting for horizontal material handling; side mounting for lateral fixed installation; axial mounting for Z-axis stacking and multi-layer assembly.

     -- Buffer Configuration Optimization: Standard rubber buffer for conventional operation. Equip with hydraulic buffer when operating speed exceeds 300mm/s or load weight exceeds 5kg to reduce terminal impact and vibration.

     -- Position Detection Setup: Compatible with M9B/M9N magnetic switches. Dual-side embedded grooves support installation of 2 switches to realize accurate in-place signal detection for both extend and retract strokes.

One Sentence Summary

     SOLH MXS series dual-cylinder pneumatic slide table adopts premium cross roller guide and integrated all-in-one structure, featuring doubled thrust, ±0.01mm ultra-high precision, superior rigidity and anti-deflection capacity, serving as the high-end precision linear driving solution for semiconductor, electronic precision assembly and high-frequency positioning automation.
