Modular low voltage distribution systems dominate modern industrial, commercial construction and new energy power distribution markets, and R-8PT Switchgear Accessories serve as core supporting components to realize standardized assembly of SIVACON 8PT complete switchgear sets. Proper matching of these accessory parts directly determines cabinet assembly precision, long-term running stability and compliance with international electrical specifications. This comprehensive analysis elaborates core component classification, raw material selection criteria, technical compliance standards, on-site matching principles and after-sale maintenance guidance, providing actionable procurement references for electrical integrators, cabinet manufacturers and engineering contractors across global markets.
SIVACON 8 is globally recognized standardized low voltage switchgear solution developed following international IEC specification framework, with maximum rated working current reaching 7400A to cover diversified power distribution demands from civil building, industrial factory and new energy station projects. The whole cabinet abandons traditional customized integral production mode and adopts split modular assembly structure, where every independent functional unit relies on standardized auxiliary fittings to realize quick splicing and fixed installation. Such modular design effectively shortens cabinet production cycle, reduces on-site construction difficulty and facilitates later-stage unit replacement and circuit transformation work for finished power distribution rooms. Many international general contracting engineering firms prefer this cabinet type for large-scale centralized procurement thanks to its high interchangeability of internal spare parts.
All structural dimension and electrical performance indicators of original matched spare parts are formulated strictly in accordance with Siemens original design standards, ensuring seamless assembly compatibility between homemade alternative accessories and original imported cabinet frames. Any dimensional deviation or material performance decline will lead to drawer jamming, poor contact of conductive terminals and abnormal cabinet operation after assembly. Global electrical testing institutions have released multiple test reports showing non-standard mismatched accessories account for over 58% of low voltage cabinet hidden safety faults in actual operation accidents.
Different functional units including incoming cabinet, outgoing cabinet and compensation cabinet can be freely combined via unified accessory system according to project power distribution layout scheme. Project designers no longer need to redesign cabinet internal frame structure for single customized demand, greatly improving drawing efficiency and shortening equipment delivery cycle for whole engineering projects. This flexible combination characteristic also brings stable incremental market demand for standardized supporting spare parts all over the world.
Complete accessory portfolio covers structural enclosure parts, operating functional fittings and conductive connection components three major categories, each category contains multiple subdivided products to satisfy different unit configuration requirements of fixed type, withdrawable type and movable SIVACON 8PT cabinet. Every single spare part has unified installation benchmark size to realize cross-unit interchange within same specification cabinet system, which is the core competitiveness of standardized accessory series in international procurement market, the second practical feature summarized from long-term application data of R-8PT Switchgear Accessories.

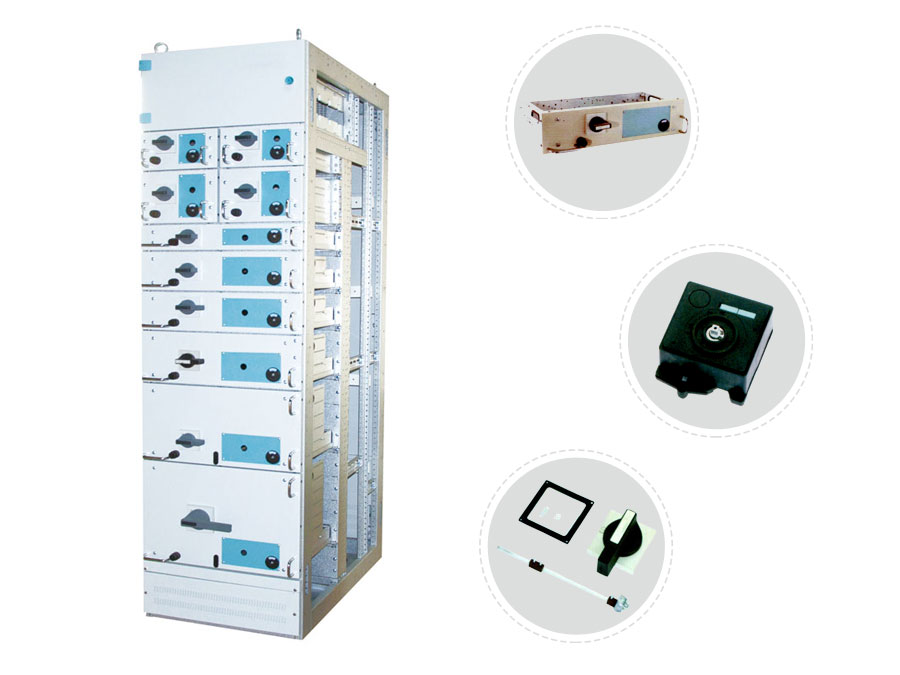

Unit drawer serves as the core movable carrier of internal circuit breaker, contactor and measuring elements, with precision stamping size to guarantee smooth push-pull movement and reliable locking after in-place installation. Left and right side panels and peripheral enclosure boards adopt bending integrated forming craft to improve cabinet overall rigidity and prevent deformation under long-term equipment self-weight and ambient temperature variation. Most mid-to-high end projects prefer galvanized or stainless steel raw material for these shell fittings to cope with humid and corrosive industrial workshop environment.
Operating handle and matched guide sleeve form complete drawer locking control system, realizing safe isolation between live state and maintenance state of internal electrical components. Incoming and outgoing contact boxes adopt high-insulation engineering plastic as base material, effectively blocking creepage risk caused by humid air and conductive dust inside cabinet, which is critical to improve long-term running safety coefficient of whole power distribution system.
Raw material directly determines accessory mechanical strength, insulation performance and anti-aging service life, and mainstream raw material options are divided into metal structural material and insulating engineering plastic two major types following original Siemens material technical indicators. Different material combinations correspond to indoor conventional environment, high-humidity chemical plant and coastal salt fog environment three differentiated application scenes respectively, helping purchasers optimize material configuration to balance project input cost and long-term equipment stability.
Galvanized steel needs to reach specified zinc layer thickness to avoid premature rust peeling under damp environment, while stainless steel material requires stable chromium content to guarantee long-term anti-corrosion property without extra surface coating. Unqualified thin galvanized sheet will produce rust spot within one year of use in underground power distribution room with high humidity, leading to cabinet structural deformation and hidden circuit short-circuit risk.
All insulating accessories must pass UL94 V0 grade flame retardant test, stopping spontaneous combustion spread when local short-circuit high temperature occurs inside cabinet. Inferior recycled plastic accessories will soften and deform under abnormal high temperature, easily triggering inter-phase short-circuit fault of adjacent busbar components and causing whole loop power outage accident.
As a professional manufacturer focusing on SIVACON 8PT matched spare parts development and production, Ningbo Richge Technology Co., Ltd. implements full incoming material inspection procedure, conducting mechanical property and insulation flame retardant test for every raw material batch before putting into formal production to keep finished product consistent with original design specification standards for global bulk customers.
SIVACON 8PT cabinet gains widespread market recognition across Europe, Southeast Asia, Middle East and Australia, covering real estate construction, industrial manufacturing, photovoltaic energy storage and municipal public engineering multiple core fields, and diversified project environments put forward differentiated accessory matching requirement on material grade and configuration quantity, the third core application rule related to R-8PT Switchgear Accessories.
Civil building power distribution room mostly arranges centralized incoming cabinet and multi-group outgoing cabinets, requiring standardized drawer accessories with unified dimension for convenient later household circuit transformation and maintenance. Most European real estate developers fix unified accessory procurement standard in project bidding document to reduce later after-sale maintenance input cost of delivered properties.
New energy storage power station and chemical plant have higher requirement on accessory anti-corrosion and high-temperature resistance, so customized upgraded material scheme becomes mainstream procurement choice for such large-scale engineering projects. These high-value projects usually sign long-term framework supply contract with qualified accessory manufacturers to guarantee stable spare parts replenishment during later equipment operation period.
Different rated current grades from low current 630A up to maximum 7400A correspond to differentiated busbar specification and contact box internal structure design, and matching accessory size and conductive component thickness change synchronously following current upgrade to guarantee safe heat dissipation and stable conductive connection under full-load long-term running condition. Improper parameter matching will lead to abnormal heating of conductive parts and accelerate insulation material aging damage.
Experienced electrical design engineers suggest reserving 15%~20% specification margin when selecting accessories for large current cabinet to cope with instantaneous overload impact during equipment startup, the fourth practical matching tip summarized from numerous engineering construction cases of R-8PT Switchgear Accessories.
Standardized installation operation can effectively reduce assembly gap and later running fault rate of whole cabinet set, and most installation errors originate from non-standard positioning drilling and disordered part assembly sequence during on-site construction. Strict following unified installation flow can greatly improve cabinet assembly efficiency and finished product operating stability.
After whole cabinet assembly finishes, carry out no-load push-pull test of every drawer unit and insulation resistance detection of internal conductive parts before formal power transmission to eliminate hidden assembly faults in advance.
Global cabinet manufacturers and electrical engineering companies need to complete multi-dimensional qualification audit before large-batch accessory procurement, and selecting qualified production source is the core premise to obtain specification-compliant R-8PT Switchgear Accessories and stable after-sale technical support. Many small trading intermediaries source non-standard inferior spare parts from scattered small workshops, bringing long-term operation hidden danger for finished switchgear projects.
