China Auxiliary Socket for Switchgear Manufacturer, Supplier, Factory

The Switchgear Unit Drawer is an essential component of medium and low voltage electrical distribution systems, designed to house various protection, control, and metering equipment. It provides a modular and safe platform for the installation of circuit breakers, contactors, relays, and other electrical devices that control and protect the electrical network.

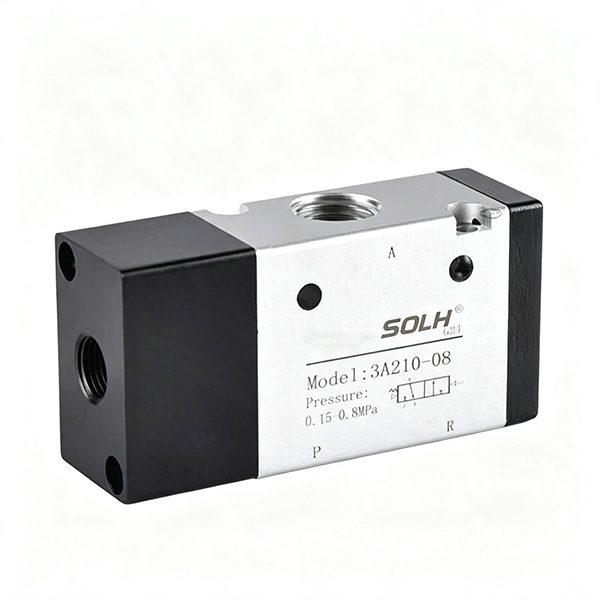

SOLH 3A series 3/2-way externally air-operated directional control valves are manufactured in accordance with mainstream industry standards. Driven entirely by pneumatic signal input without any electromagnetic coils, this series is engineered to govern extension, retraction and pressure retention of single-acting pneumatic cylinders. It serves as the critical safety control element for all-electric-free pneumatic circuits, hazardous explosive atmospheres and fail-safe industrial machinery. The standard three-port layout follows universal industrial definitions: P for main compressed air supply inlet, A for working outlet connected directly to single-acting cylinders, and R for exhaust port for pressure relief and rapid spring reset. Two control configurations are available. Single pneumatic control models (3A×10) switch upon receiving external air signals and automatically reset via built-in springs once the control air signal is removed to guarantee fail-safe reset performance. Double pneumatic control variants (3A×20) adopt latching spool structure, locking the valve position persistently even after control air is disconnected to sustain long-term clamping and positioning. Constructed with high-strength aluminum alloy valve bodies and precision-machined spools, the valves support oil-free operation under filtered compressed air with filtration precision above 40 μm within the working pressure range of 0.15~0.8 MPa. Four dimensional specifications from miniature 3A100 up to heavy-duty high-flow 3A400 cover M5 to G1/2 thread connections, and NPT threads are optional for overseas projects. Without internal electrical parts, the valve features intrinsic explosion-proof performance, perfectly suited for flammable, dusty and humid working environments. It supports random multi-angle installation and manifold assembly for modular valve banks, widely deployed in workpiece clamping mechanisms, pneumatic safety interlock systems and long-duration positioning stations.

Switchgear Spring Blade – Product Details and Application Introduction The Switchgear Spring Blade is an essential component used in medium and low-voltage switchgear systems, designed to provide reliable contact pressure and ensure smooth electrical connectivity between conductive parts. These spring blades are typically made from high-quality materials such as stainless steel, copper alloys, or beryllium copper to offer both high electrical conductivity and corrosion resistance. Their design ensures longevity even under harsh environmental conditions and frequent mechanical stress.

Our company is dedicated to providing high-quality switchgear components, including switchgear front protection solutions. Designed to safeguard switchgear systems, our front protection products offer robust defense against environmental factors and accidental damage. Utilizing advanced materials and engineering techniques, our solutions ensure durability and reliability in demanding conditions. We adhere to rigorous quality standards to deliver products that enhance the safety and longevity of electrical equipment. Committed to innovation and customer satisfaction, we provide tailored solutions that meet the unique needs of our clients, ensuring optimal performance and protection for their switchgear systems.

Switch cabinet support Product Details and Application of Switchgear Trademark Base The Switchgear Trademark Base is an essential component designed to support and enhance the functionality of electrical switchgear systems. Crafted from high-quality, durable materials, this base provides a stable foundation for various switchgear applications, ensuring optimal performance and reliability.

The 8PT Guiding Part is an essential component in switchgear systems, designed to provide precise alignment and smooth operation of moving elements within the switchgear assembly. This guiding part plays a crucial role in ensuring the accurate positioning and secure movement of drawers, circuit breakers, and other mobile parts, enhancing the overall reliability and safety of the electrical distribution system.
