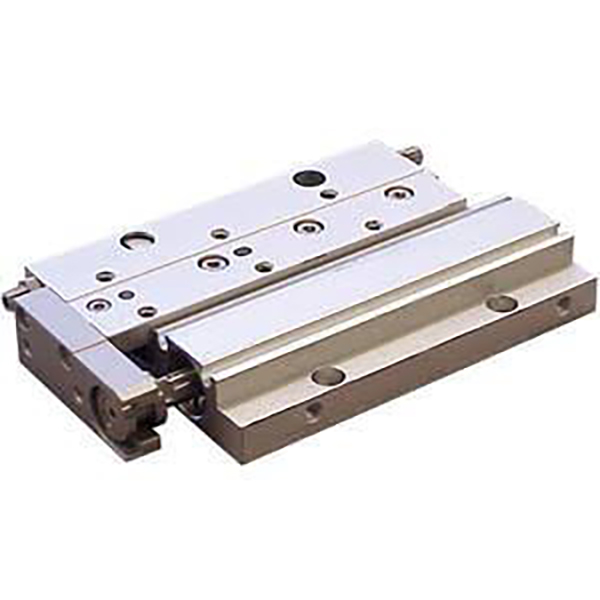

MXF Series Ultra-Thin High-Rigidity Pneumatic Slide Table

Brand: SOLH by Richge Technology

Product Overview

     The SOLH MXF series is an ultra-thin, high-rigidity, long-stroke pneumatic slide table designed for height-limited automation equipment. Featuring a parallel layout of cylinder and cross roller guide rail, dual-sided top/bottom mounting structure and medium-load carrying capacity, it achieves an ultra-low body height that is 40% slimmer than conventional MXS slides of the same specification. With stable medium-precision positioning, smooth long-stroke operation and high-frequency cyclic durability, it serves as the core mainstream low-profile slide solution for precision material handling, assembly and station switching in compact automated systems.

Core Positioning & Structural Features

     -- Dual-Acting Driving Structure: Adopts stable double-acting operation with bore sizes ranging from φ8 to φ20mm, providing reliable medium load output of 20~180N, perfectly matching medium-duty precision handling scenarios.

     -- Parallel Cylinder & Cross Roller Guide Design: The guide rail and cylinder are arranged in parallel, separating load bearing from piston rod sealing movement. This structure delivers high rigidity, low friction, zero-gap operation and extremely smooth linear motion.

     -- Ultra-Thin Low-Profile Body: The body height is only 16~27mm, 40% lower than equivalent MXS models. It is the optimal choice for ultra-low clearance and highly compact equipment layout.

     --Reliable Medium Precision Performance: Ensures 0.03mm running parallelism, 0.05mm verticality and ±0.02mm repeat positioning accuracy, fully meeting standard medium-precision automation positioning requirements.

     -- Dual-Sided High-Precision Mounting: Equipped with top through holes and bottom tapped holes, plus precision positioning pin holes. Supports positive and reverse installation, guaranteeing high repeat mounting accuracy after disassembly and reassembly.

     -- Flexible Piping & Sensor Installation: Compatible with transverse and axial bidirectional piping. Built-in magnetic ring with concealed slider groove design for magnetic switch installation, saving installation space without structural interference.

     -- Adjustable Stroke & Multi-Buffer Options: Standard polyurethane buffers at both ends for stable cushioning. Features 5mm adjustable stroke per end (10mm total standard trimming range), with optional X11 specification for 15mm ultra-long fine adjustment and optional hydraulic buffers for high-frequency impact scenarios.

Complete Model Coding Rule

   1. Model Example: MXF12-50-M9BW

   2. Standard Order Reference Examples

     -- MXF8-20: Standard model without switch, 8mm bore, 20mm stroke, double acting

     -- MXF20-100-2M9B: 20mm bore, 100mm long stroke, dual magnetic switches for bidirectional position monitoring

     -- MXF16-75-X11: 16mm bore, 75mm stroke, 15mm extended stroke adjustment

Core Technical Specifications (@0.5MPa, Double Acting)

Core Performance & Product Advantages

     -- Ultra-Thin Compact Structure for Extreme Space Saving: With an ultra-low body height of 16~27mm, 40% slimmer than MXS series, it perfectly adapts to ultra-low clearance equipment and dense modular layout scenarios where conventional slides cannot be installed.

     -- High Rigidity & Stable Long-Stroke Operation: The cross roller guide paired with integrated monolithic body eliminates running gaps and deformation. It maintains jitter-free stable operation under maximum 100mm long stroke and high-frequency cycling conditions.

     -- Dual-Sided Mounting with Strong Adaptability: Supports top through-hole fixing and bottom tapped hole installation, compatible with both positive and reverse mounting. Equipped with precision positioning pin holes to ensure high repeat accuracy after repeated disassembly and assembly.

     -- Flexible Adjustable Stroke & Multi-Station Adaptation: Standard 5mm fine adjustment per end (10mm total trimming range). Optional X11 specification provides 15mm extended stroke adjustment, meeting precise stroke calibration requirements for multi-station automated processes.

     -- Oil-Free & Long Service Life with Low Maintenance: Adopts low-friction sealing and oil-free operating design, with a service life of over 5 million cycles. It is applicable to both clean industrial environments and conventional automated production lines with minimal daily maintenance requirements.

Mounting Methods & Typical Application Scenarios

   1. Dual Mounting Methods

     -- Top Mounting: Fixed via top through holes with upper load arrangement. Matched with positioning pins for high-precision positioning and stable load bearing.

     -- Bottom Mounting: Fixed via bottom tapped holes for direct equipment surface installation. Features firm assembly and is ideal for reverse mounting applications.

   2.Typical Industrial Applications

     -- 3C Electronics Industry: Screen lamination, module handling, PCB board transfer, detection station switching and precision electronic component positioning.

     -- Precision Assembly Automation: Small part pressing, terminal assembly, screw locking fixture driving and lightweight tooling cyclic operation.

     -- Packaging Machinery: Material pushing, cutting tool driving, label laminating and short-distance material conveying.

     -- General Automation Equipment: Equipment door body sliding, production line station switching and medium-load high-frequency cyclic linear driving.

MXF vs MXH vs MXS | Low-Profile & Compact Slide Table Comparison

Three-Step Quick Selection Guide

   1. Bore Size Selection by Load: Match bore diameter according to workpiece weight: φ8 ≤ 2kg, φ12=2~5kg, φ16=5~10kg, φ20=10~15kg. Reserve no less than 50% load margin to ensure stable long-term operation.

   2. Stroke Confirmation: Standard stroke ranges from 10mm to 100mm. Prefer MXF series for long-stroke scenarios (≥50mm); select MXH series for short-stroke and high-frequency cycling working conditions.

   3. Configuration Matching:
     --  Position Detection: Equip with dual M9B magnetic switches for accurate bidirectional stroke position monitoring.

     -- Stroke Fine Adjustment: Choose standard -X10 (5mm trimming) for regular use; select -X11 (15mm extended trimming) for multi-stroke precise calibration.

     --  Buffering Optimization: Adopt standard polyurethane buffers for conventional operation; upgrade to hydraulic buffers for high-frequency impact and noise reduction scenarios.

One Sentence Summary

     SOLH MXF series ultra-thin high-rigidity pneumatic slide table features 40% lower body height than MXS, cross roller high-rigidity guide, dual-sided mounting and long-stroke medium-load stability, serving as the high cost-performance core solution for height-limited compact automation and medium-precision high-frequency handling.
