Brand: SOLH by Richge Technology | KQ2Z Multi-outlet Pneumatic Manifold One-Touch Fittings
 |
 |
 |
 |
 |
 |
KQ2Z series belongs to SOLH KQ2 pneumatic one-touch fitting family. It is male thread multi-branch manifold fitting, featuring single air inlet and multiple simultaneous tube outlets. Push-to-connect design for tool-free tubing insertion & removal, used for centralized air distribution in pneumatic systems. Four sub-models available:

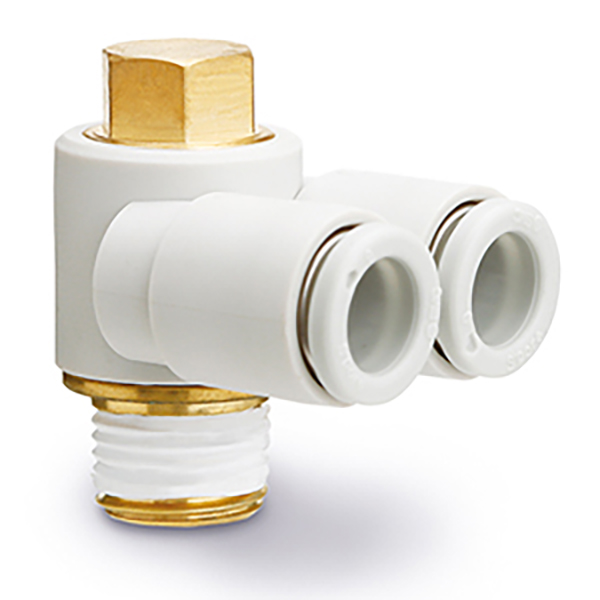

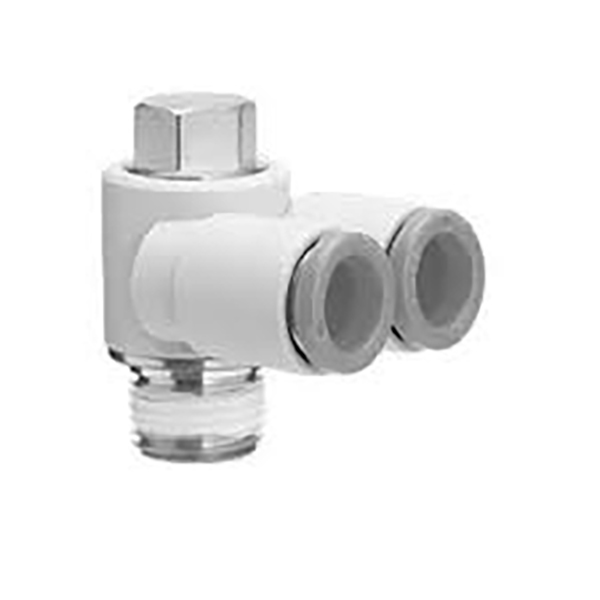

KQ2Z: 1-in 2-out dual port, external hex mounting

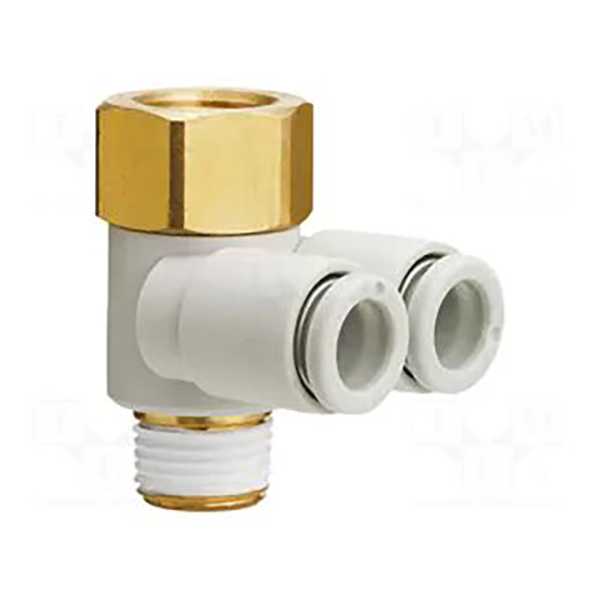

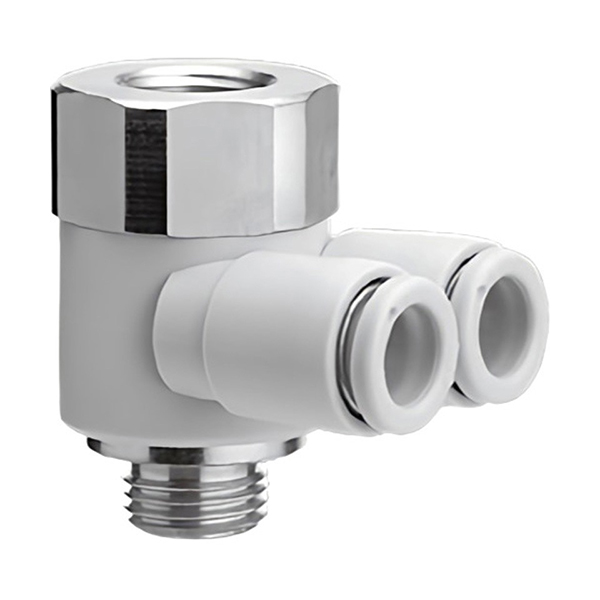

KQ2ZF: 1-in 2-out stackable manifold, upper Rc female thread for cascading extra manifolds

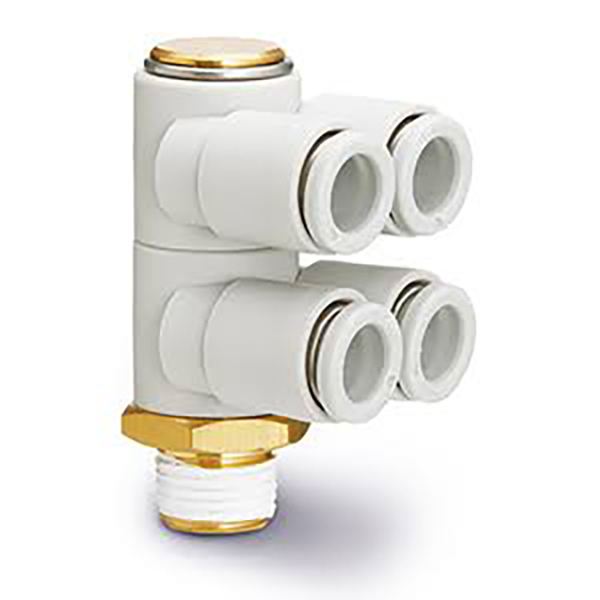

KQ2ZD: 1-in 4-out four-way branch manifold

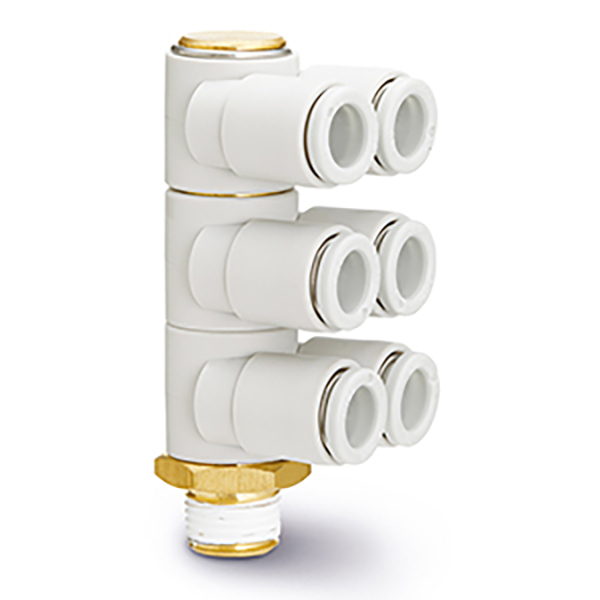

KQ2ZT: 1-in 6-out six-way branch manifold
Core Advantages: Compact manifold design to save installation space. PBT body with nickel-plated brass thread. Compatible with PU / PA pneumatic tubing, works for both positive pressure and vacuum circuits. Direct drop-in replacement for original SMC KQ2Z fittings.
Format: KQ2Z □□ - □□S
KQ2Z: Series code for multi-port branch manifold fitting
□□: Tube outer diameter ΦD (04=4mm,06=6mm,08=8mm,10=10mm,12=12mm)
Suffix:
01S02S/03S/04S: Imperial R male taper thread (1/8",1/4",3/8",1/2")
M5: Metric male thread M5×0.8
KQ2ZF: Stackable version, lower R male thread + upper Rc female thread. Multiple KQ2ZF can be connected end-to-end to expand outlet quantity.
3.1 KQ2Z (1-in 2-out, External Hex Mount)
|
Model |
Male Thread R |
Tube ΦD |
|
KQ2Z04-01S |
R1/8 |
4 |
|
KQ2Z04-M5 |
M5×0.8 |
4 |
|
KQ2Z06-01S |
R1/8 |
6 |
|
KQ2Z06-02S |
R1/4 |
6 |
|
KQ2Z06-03S |
R3/8 |
6 |
|
KQ2Z08-01S |
R1/8 |
8 |
|
KQ2Z08-02S |
R1/4 |
8 |
|
KQ2Z08-03S |
R3/8 |
8 |
|
KQ2Z10-02S |
R1/4 |
10 |
|
KQ2Z10-03S |
R3/8 |
10 |
|
KQ2Z12-03S |
R3/8 |
12 |
|
KQ2Z12-04S |
R1/2 |
12 |
3.2 KQ2ZF (1-in 2-out Stackable Type, R + Rc Thread)
|
Model |
R/Rc Thread |
Tube ΦD |
|
KQ2ZF04-M5 |
M5×0.8 |
4 |
|
KQ2ZF04-01S |
R1/8 |
4 |
|
KQ2ZF06-01S |
R1/8 |
6 |
|
KQ2ZF06-02S |
R1/4 |
6 |
|
KQ2ZF08-01S |
R1/8 |
8 |
|
KQ2ZF08-02S |
R1/4 |
8 |
|
KQ2ZF10-02S |
R1/4 |
10 |
|
KQ2ZF10-03S |
R3/8 |
10 |
|
KQ2ZF12-03S |
R3/8 |
12 |
|
KQ2ZF12-04S |
R1/2 |
12 |

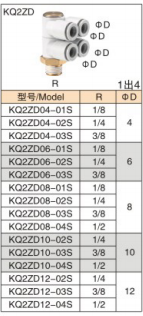

3.3 KQ2ZD (1-in 4-out)
|
Model |
Male Thread R |
Tube ΦD |
|
KQ2ZD04-01S |
R1/8 |
4 |
|
KQ2ZD04-02S |
R1/4 |
4 |
|
KQ2ZD04-03S |
R3/8 |
4 |
|
KQ2ZD06-01S |
R1/8 |
6 |
|
KQ2ZD06-02S |
R1/4 |
6 |
|
KQ2ZD06-03S |
R3/8 |
6 |
|
KQ2ZD08-01S |
R1/8 |
8 |
|
KQ2ZD08-02S |
R1/4 |
8 |
|
KQ2ZD08-03S |
R3/8 |
8 |
|
KQ2ZD08-04S |
R1/2 |
8 |
|
KQ2ZD10-02S |
R1/4 |
10 |
|
KQ2ZD10-03S |
R3/8 |
10 |
|
KQ2ZD10-04S |
R1/2 |
10 |
|
KQ2ZD12-02S |
R1/4 |
12 |
|
KQ2ZD12-03S |
R3/8 |
12 |
|
KQ2ZD12-04S |
R1/2 |
12 |

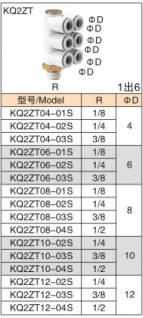

3.4 KQ2ZT (1-in 6-out)
|
Model |
Male Thread R |
Tube ΦD |
|
KQ2ZT04-01S |
R1/8 |
4 |
|
KQ2ZT04-02S |
R1/4 |
4 |
|
KQ2ZT04-03S |
R3/8 |
4 |
|
KQ2ZT06-01S |
R1/8 |
6 |
|
KQ2ZT06-02S |
R1/4 |
6 |
|
KQ2ZT06-03S |
R3/8 |
6 |
|
KQ2ZT08-01S |
R1/8 |
8 |
|
KQ2ZT08-02S |
R1/4 |
8 |
|
KQ2ZT08-03S |
R3/8 |
8 |
|
KQ2ZT08-04S |
R1/2 |
8 |
|
KQ2ZT10-02S |
R1/4 |
10 |
|
KQ2ZT10-03S |
R3/8 |
10 |
|
KQ2ZT10-04S |
R1/2 |
10 |
|
KQ2ZT12-02S |
R1/4 |
12 |
|
KQ2ZT12-03S |
R3/8 |
12 |
|
KQ2ZT12-04S |
R1/2 |
12 |
|
Item |
Parameter |
|
Body Material |
PBT engineering plastic, high strength & impact resistance |
|
Thread Component |
Nickel-plated brass, anti-rust & corrosion resistant |
|
Seal Ring |
NBR nitrile rubber |
|
Compatible Tubing |
PU tube, PA nylon pneumatic tube |
|
Working Pressure |
0~1.0MPa, applicable for vacuum negative pressure |
|
Operating Temperature |
-20℃ ~ +60℃ |
|
Connection Method |
Push-in fitting; press release ring to insert / remove tubing |
• Automation machinery, robotic suction cup arrays: single air source multi-path distribution, replace traditional manifold blocks and save installation footprint
• Synchronized air supply for multiple cylinders, centralized piping around compact valve islands
• KQ2ZF can be stacked in series to expand outlet quantity on demand, flexible manifold assembly
• Import substitution, drop-in replacement for SMC KQ2Z series manifold fittings
• Cut tube end vertically flat, fully insert tubing into fitting bottom for reliable sealing.
• Wrap a small amount of PTFE tape on male threads, apply moderate tightening torque to avoid cracking plastic body.
• Tube removal: press white release ring and pull tube outward simultaneously.
• For cascaded KQ2ZF application, guarantee thread sealing. Do not exceed rated pressure after multi-stage stacking.
