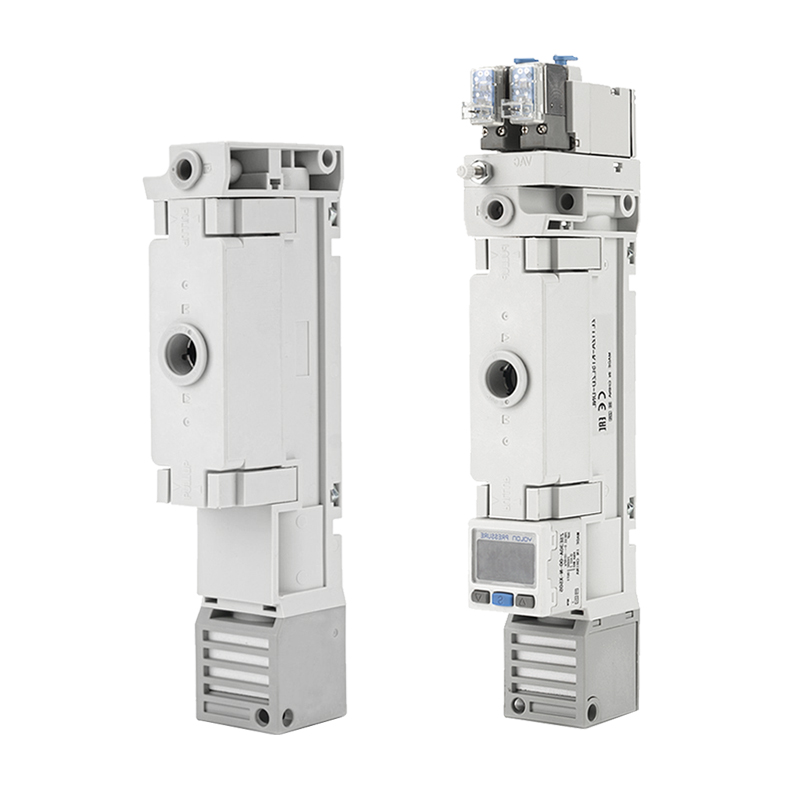

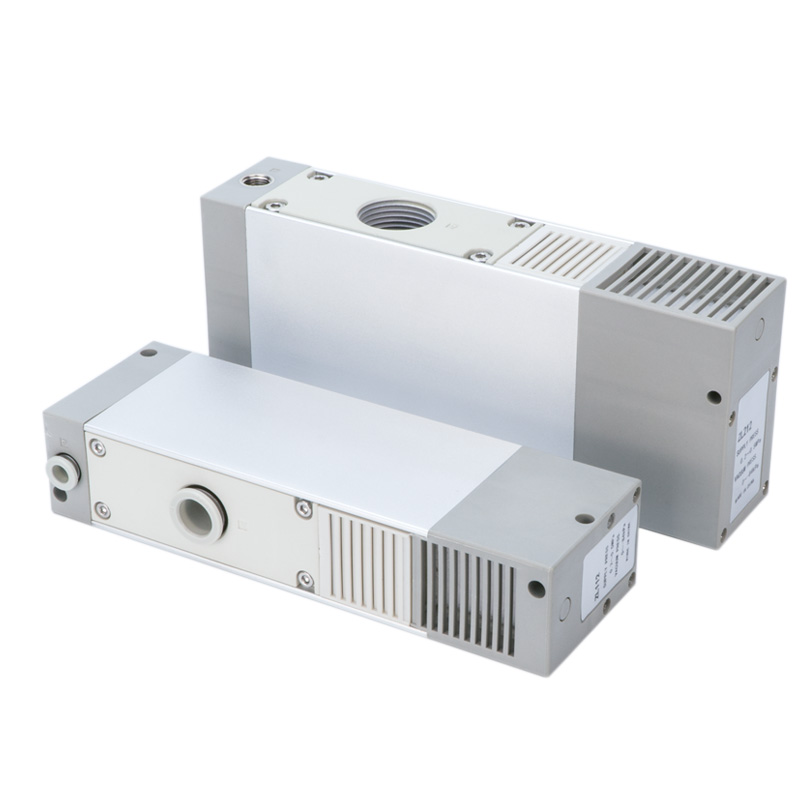

Brand: SOLH by Richge Technology | Full Mechanical & Interface Interchangeable with SMC ZL1 Original Series
 |
SOLIH ZL1‑series adopts multi‑stage diffuser venturi energy‑saving vacuum ejector structure, fully interchangeable with SMC ZL1 original dimension and port layout. Under identical air consumption condition, it delivers higher suction flow and lower energy loss. Widely deployed for high‑speed pick‑and‑place robot manipulators and strong adsorption applications for porous breathable workpieces.

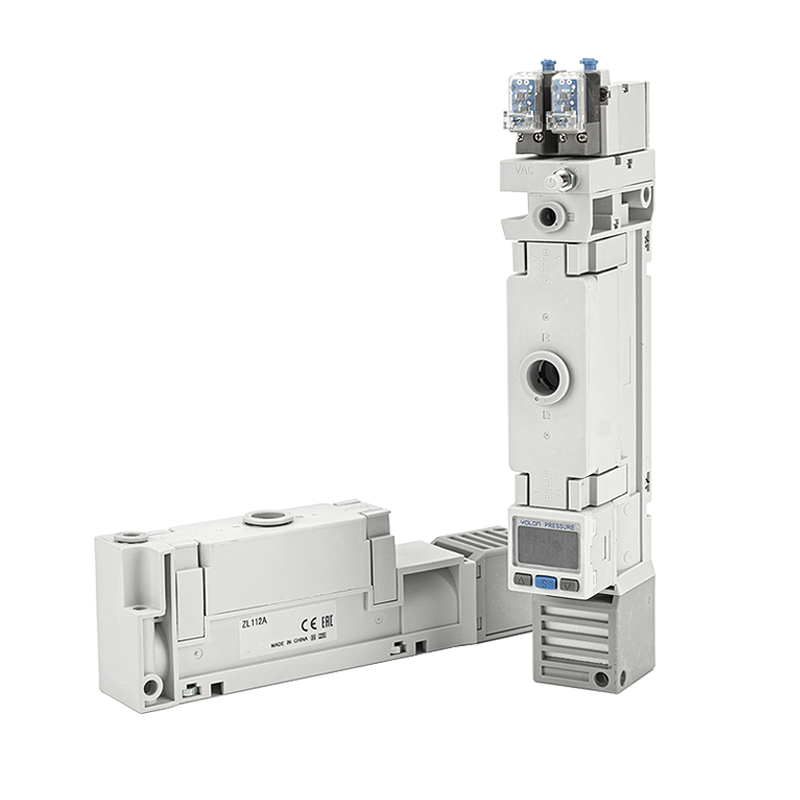

Two core configurations for selection:
• Valveless Type (Without valve): Pure ejector body only, controlled by external solenoid valves. Low‑cost and highly flexible for custom system integration.
• With‑Valve Type: Integrated supply valve, release valve and vacuum pressure detection module. No extra external valve components required, simplified piping and faster response. Preferred mainstream solution for robot end‑of‑arm tooling (EOAT).
Model 12A specification: Max suction flow 100 L/min (ANR), working supply air pressure 0.4~0.6 MPa clean compressed air. Supply port and vacuum port equipped with one‑touch fittings: Φ6 metric or Φ1/2‑inch imperial optional.

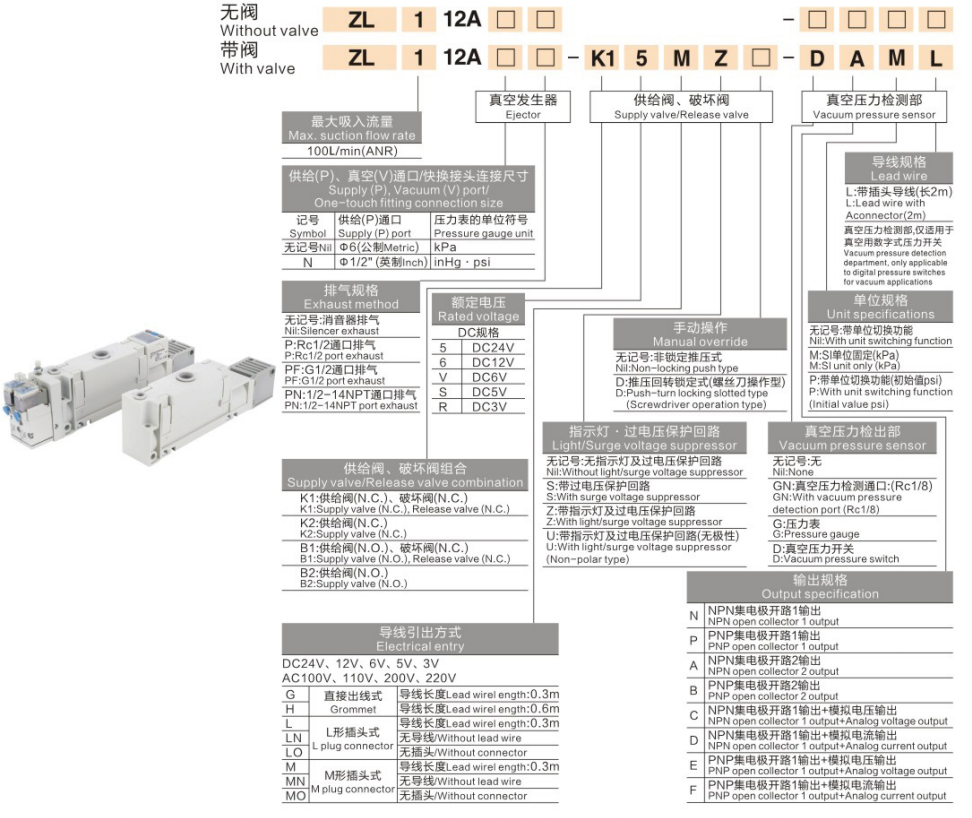

2.1 Valveless Basic Coding
ZL1‑12A
• ZL1: Multi‑stage vacuum ejector series code
• 12A: Size code, max suction flow 100 L/min (ANR)
Full example: ZL1‑12A‑K15MZ‑DAML
|
Code Segment |
Corresponding Module & Definition |
|
ZL1‑12A |
Series + size code (100 L/min) vacuum ejector main body |
|
K1 |
Supply Valve N.C. + Release Valve N.C. combination, supply / release valve assembly |
|
5 |
Rated coil voltage DC24V |
|
M |
M‑shape plug‑type wire outlet, cable length 0.3 m |
|
Z |
With indicator lamp & over‑voltage protection circuit |
|
D |
Built‑in vacuum pressure switch detection unit |
|
A |
NPN open‑collector dual‑channel output specification |
|
M(L) |
Pressure‑switch cable: 0.3 m / 2 m with plug, select one only |
3.1 Supply(P) / Vacuum(V) Port One‑Touch Fitting Size
|
Mark |
Supply(P) Port |
Pressure Unit Options |
|
No mark / N |
Φ6 Metric one‑touch fitting |
kPa |
|
Inch version |
Φ1/2" Imperial one‑touch fitting |
inHg, psi |
3.2 Exhaust Method
|
Mark |
Exhaust Description |
|
No mark |
Silencer exhaust (standard, low‑noise performance) |
|
PR |
1/4" port exhaust, external piping for centralized exhaust |
|
PG1/2 |
G1/2 port exhaust, large‑flow centralized exhaust |
|
PN1/2‑14NPT |
NPT 1/2‑14 port exhaust for North‑American equipment |
3.3 Rated Voltage
|
Code |
Voltage Specification |
|
5 |
DC24V (industrial mainstream) |
|
6 |
DC12V |
|
V |
DC6V (optional) |
|
VDC |
DC5V (custom‑made only) |
3.4 Supply Valve & Release Valve Combinations (For With‑Valve Models)
|
Code |
Valve Combination |
Function Description |
|
K1 |
Supply Valve N.C. + Release Valve N.C. |
Energize supply for vacuum build‑up; energize release for fast break‑vacuum. Standard mainstream selection. |
|
K2 |
Supply Valve N.C. (no release valve) |
Only supply control; vacuum released naturally, cost‑optimized solution. |
|
B1 |
Supply Valve N.O. + Release Valve N.C. |
Normally‑open supply valve, continuous air supply upon power‑off, for special vacuum‑holding working conditions. |
|
B2 |
Supply Valve N.O. (no release valve) |
Basic normally‑open supply configuration. |
3.5 Manual Override Function
|
Mark |
Manual‑Override Operation Mode |
|
No mark |
Non‑latching push‑button: push to energize, release for reset. |
|
D |
Push‑turn locking type (screwdriver operable), lock for continuous air supply during commissioning & debugging. |
3.6 Indicator Lamp & Over‑Voltage Protection Circuit
|
Mark |
Configuration Description |
|
No mark |
No indicator lamp and no over‑voltage protection circuit. |
|
S |
Built‑in over‑voltage surge‑suppression circuit to extend coil service life. |
|
Z |
Indicator lamp plus over‑voltage protection circuit for power‑on status visualization. |
|
U |
Polarity‑free indicator lamp & over‑voltage protection circuit, arbitrary wiring allowed. |
3.7 Electrical Entry / Wire Outlet Mode
|
Code |
Cable Outlet Definition |
|
G |
Grommet cable entry, cable length:0.3 m |
|
H |
L‑shape plug‑type outlet, cable length:0.6 m |
|
LN |
L‑shape plug‑type, no cable supplied (customer self‑prepare wiring harness) |
|
M |
M‑shape plug‑type outlet, cable length:0.3 m |
|
MN |
M‑shape plug‑type, no cable supplied (customer self‑prepare wiring harness) |
3.8 Vacuum Pressure Unit (Only valid for vacuum‑detection equipped units)
|
Mark |
Unit Setting |
|
No mark |
Multi‑unit switchable: kPa / inHg / psi selectable |
|
M |
Fixed‑unit, kPa only |
|
S |
Multi‑unit switchable, factory preset to psi |
|
P |
Multi‑unit switchable, factory preset to psi |
3.9 Vacuum Pressure Detection Module
|
Mark |
Detection Function & Application |
|
No mark |
No detection unit; pure ejector body, connect external sensor separately. |
|
GN |
Vacuum‑detection port (Rc1/8), connect external digital pressure gauge or PLC acquisition module. |
|
G |
Built‑in analog pressure gauge for local on‑site visual vacuum‑level reading. |
|
D |
Built‑in vacuum pressure switch, outputs switch / analog signal for missing‑part alarm & workpiece‑in‑place feedback. |
3.10 Output Specification (For D‑type Vacuum Pressure Switch)
|
Code |
Output Mode Description |
|
N |
NPN open‑collector 1‑channel output, standard for PLC NPN input channel |
|
P |
PNP open‑collector 1‑channel output |
|
A |
NPN open‑collector dual‑channel independent output |
|
W |
PNP open‑collector dual‑channel independent output |
|
C |
NPN 1‑channel switch + analog voltage output |
|
D |
NPN 1‑channel switch + analog current output |
|
E |
PNP 1‑channel switch + analog voltage output |
|
F |
PNP 1‑channel switch + analog current output |
3.11 Pressure‑Switch Cable Specification (For D‑type)
|
Code |
Cable Definition |
|
L |
Pre‑assembled plug‑in cable, total length: 2 m |
|
M |
Pre‑assembled plug‑in cable, total length: 0.3 m |
|
Parameter Item |
Standard Specification |
|
Working Principle |
Multi‑stage diffuser venturi vacuum ejector, high‑efficiency energy‑saving structure |
|
Max Suction Flow(12A size) |
100 L/min (ANR) |
|
Standard Supply Air Pressure |
0.4 ~ 0.6 MPa |
|
Supply / Vacuum Port |
One‑touch fitting: Φ6 Metric / Φ1/2" Imperial optional |
|
Exhaust Options |
Standard silencer exhaust; PR / PG / PN port‑type centralized external exhaust optional |
|
Rated Coil Voltage |
DC24V / DC12V / DC6V; DC5V available upon custom request |
|
Electrical Entry Options |
G grommet / H‑L shape plug / M‑M shape plug; LN / MN cable‑less version for customer wiring |
|
Vacuum Detection Unit |
No detection / GN detection port(Rc1/8) / G local pressure gauge / D built‑in vacuum pressure switch |
|
Signal Output |
NPN / PNP single‑dual channel switch output; analog voltage / current output optional |
|
Indicator & Surge‑Protection |
No protection / S surge‑protection / Z indicator+protection / U polarity‑free indicator+protection |
|
Comparison Item |
Valveless Type ZL1‑12A |
With‑Valve Type ZL1‑12A‑K1… |
|
Integrated Valves |
No built‑in valves, external 3‑way solenoid valve required |
Integrated supply valve + release valve (K1/K2/B1/B2 series) |
|
Vacuum Break Method |
Controlled by external valve or natural release |
Instant vacuum break by built‑in release valve for fast workpiece drop‑off |
|
Response Speed |
Dependent on external valve and pipe‑line layout |
Faster integrated response for high‑cycle‑rate robot application |
|
Piping Complexity |
Requires separate valves, fittings and filter accessories |
Highly integrated, minimal on‑site piping work |
|
Cost & Flexibility |
Lowest cost, maximum system‑design flexibility |
Higher integration level, preferred for robot EOAT end effector |
|
Pressure‑Detection |
External vacuum pressure switch required |
Optional built‑in G pressure gauge / D vacuum pressure switch |
Solution 1: Valveless Cost‑Optimized Circuit
AFC2000 non‑oil two‑unit air source treatment → 3V110 3‑way solenoid valve → ZL1‑12A valveless vacuum ejector → ZPT vacuum suction cup
Solution 2: With‑Valve High‑Speed Robot Pick‑and‑Place Circuit
AR pressure regulator → ZL1‑12A‑K15MZ‑DAML (integrated supply valve, release valve & vacuum pressure switch) → robot end‑effector suction cup, automatic missing‑workpiece alarm function supported.
Solution 3: Multi‑Bank Centralized Air Supply Circuit
AFC large‑flow non‑oil two‑unit → multiple ZL1 with‑valve ejector manifold assembly → multi‑suction‑cup synchronous material picking.
• Port size: For standard PU6 / Φ6 tubing, select no‑mark metric port. For imperial Φ1/2" tubing, specify imperial port together with inHg / psi pressure unit.
• Exhaust: For low‑noise workshop environment, keep standard silencer exhaust. For exhausting to designated safe area, adopt PR / PG / PN port‑type centralized exhaust.
• Voltage: DC24V(code 5) for domestic automation equipment; DC12V / DC6V for European export or low‑voltage‑device projects.
• Valve combination: K1 (N.C. supply + N.C. release) for standard high‑speed pick‑and‑place; K2 for cost‑reduction; B1/B2 for special normally‑open vacuum‑holding working conditions.
• Detection requirement: Choose D vacuum pressure switch(NPN/PNP match PLC input type) for PLC missing‑part alarm; G local pressure gauge for on‑site visual inspection; GN detection port for third‑party external data acquisition.
• Indicator & Surge‑protection: Select Z / U version for cabinet diagnostic indication; S over‑voltage‑protection for humid harsh working environment.
• Manual override: Choose D push‑turn locking manual‑override for frequent commissioning & debugging scenarios, support locked continuous air supply.
• 3C electronics PCB & chip high‑speed pick‑and‑place handling
• Lithium‑ion battery electrode sheet material transfer
• Carton & porous‑material strong‑force adsorption
• Glass & sheet‑metal heavy‑duty robotic picking
• Injection‑molding robot part removal & demolding
• Food‑processing packaging grabbing application
• Logistics sorting high‑speed robotic transfer systems
• Do NOT use oil‑mist FRL units (AC / BC series three‑unit) for vacuum ejector air supply. Lubrication oil will clog multi‑stage diffuser nozzles, must adopt AFC non‑oil two‑unit air‑source treatment unit.
• Mandatorily install ZFC inline vacuum filter on upstream side. Tiny multi‑stage nozzles are sensitive to dust; suction flow will degrade heavily once clogged by particle contamination.
• Keep hose length between ejector and suction cup as short as possible to guarantee fast vacuum build‑up and stable suction performance.
• Optimal supply air pressure range 0.4~0.6 MPa. Insufficient pressure leads to weak suction; excessive pressure increases compressed‑air consumption.
• For with‑valve models, select Z / S / U versions with built‑in surge‑protection circuit to extend solenoid coil service life inside control cabinets.
• For PR / PG / PN centralized exhaust configurations, maintain unobstructed exhaust piping, back‑pressure will severely degrade vacuum‑building performance.
