Brand: SOLH by Richge Technology

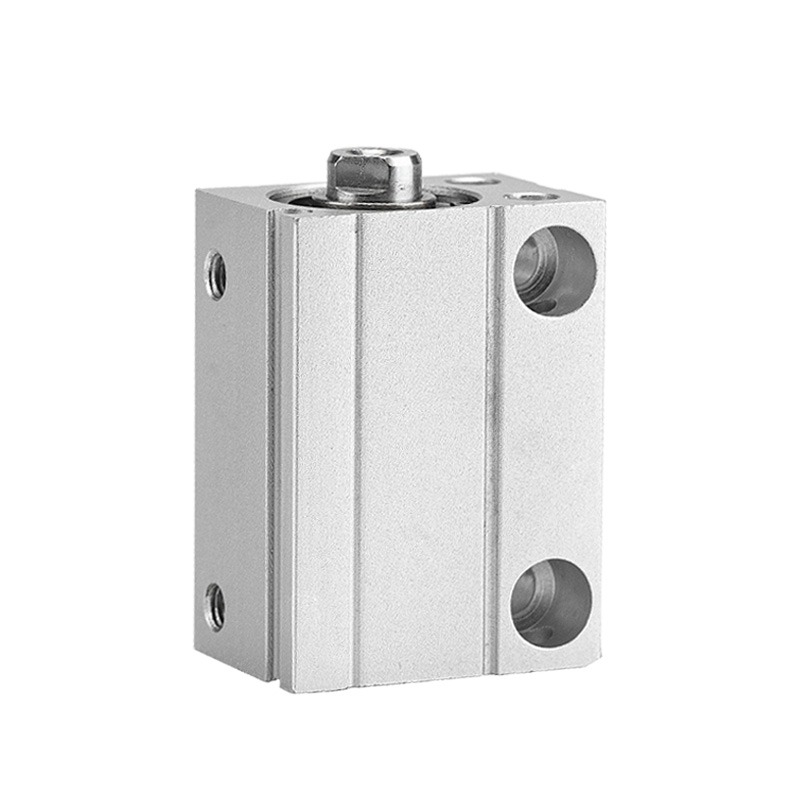

SOLH CDUJB series ultra-mini free mount cylinder is designed for equipment with limited installation space. Compared with standard CU series, overall length reduced by 64% and volume cut by 70%. Square compact body allows multi-surface direct mounting without brackets. CDUJB equipped with built-in magnet for position detection. Widely adopted in 3C electronics, medical instruments and semiconductor precision automation.
|
Model |
Features |
Application |
|
CUJB |
Without magnet ring, no sensor mounting |
Low-cost micro light load without position feedback |
|
CDUJB |
Built-in magnet, compatible with CMSH/DMSH, D-M9BV switches |
Automation requiring stroke position signal |
|
CDUJS |
Clean version, copper-free material |
Medical device, semiconductor clean room |
-- Super compact square body, suitable for dense layout and embedded jig;
-- Multi-side mounting holes on bottom, side and end face, install from any orientation;
-- Built-in magnet (CDUJB), dual sensor slots for detecting extend/retract position;
-- MU-S025 magnetic shield plate optional to avoid mutual interference for closely arranged cylinders;
-- Optional rubber end cushion to reduce impact for tiny workpieces;
-- CDUJS copper-free design avoids metal precipitation for clean environment.

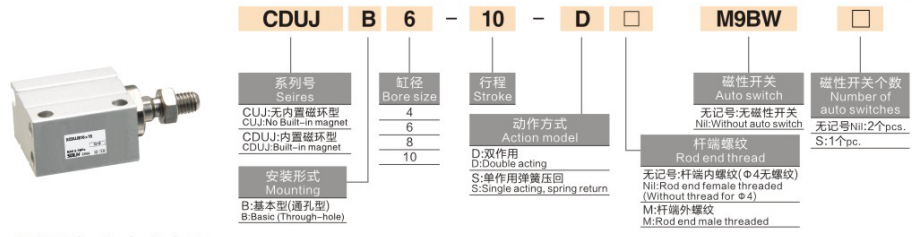

1. Example: CDUJB8×15D-M
-- CDUJB: Series code (C = built-in magnet; CUJB = non-magnet)
-- 8: Bore size (mm):4,6,8,10,12,16,20
-- 15: Stroke length (mm)
-- D: Double acting; S: Single acting spring return
-- M: External thread rod; No mark = internal thread; φ4/φ6 without rod thread
|
Parameter |
Specification |
|
Bore Size |
4,6,8,10,12,16,20 mm |
|
Standard Stroke |
4/6/8/10:4~30mm;12/16:5~30mm;20:5~50mm |
|
Acting Type |
Double acting (main), single acting spring return |
|
Operating Pressure |
Double acting:0.15~0.7MPa (φ4/φ6);0.1~0.7MPa (≥φ8) ; Single acting:0.35~0.7MPa (φ4) |
|
Proof Pressure |
1.0 MPa |
|
Temperature Range |
Non-magnet: -10~70℃; Magnet version: -10~60℃ |
|
Piston Speed |
50~500 mm/s |
|
Cushion |
No cushion /rubber buffer optional |
|
Port Thread |
M3×0.5 (φ4/φ6); M5×0.8 (φ8/φ10) |
|
Lubrication |
Oil-free operation |
|
Stroke Tolerance |
±0.5 mm |
|
Bore (mm) |
Area (mm²) |
0.2MPa |
0.4MPa |
0.6MPa |
0.7MPa |
|
4 |
12.6 |
2.5 |
5.0 |
7.6 |
8.8 |
|
6 |
28.3 |
5.7 |
11.3 |
17.0 |
19.8 |
|
8 |
50.3 |
10.1 |
20.1 |
30.2 |
35.2 |
|
10 |
78.5 |
15.7 |
31.4 |
47.1 |
54.9 |
|
12 |
113.1 |
22.6 |
45.2 |
67.9 |
79.2 |
|
16 |
201.1 |
40.2 |
80.4 |
120.7 |
140.8 |
|
20 |
314.2 |
62.8 |
125.7 |
188.5 |
219.9 |
✅ Typical Applications
-- 3C electronics micro jig, chip transportation, connector insertion;
-- Medical equipment sample processing, micro pushing mechanism;
-- Semiconductor wafer positioning, clean room miniature actuator;
-- Automation stopper, short stroke clamping and positioning.
⚠️ Selection Reminders
-- Not suitable for heavy side offset load; add guide if lateral force exists.
-- Magnetic shield plate required when multiple cylinders installed side by side.
SOLH CDUJB ultra compact free mount pneumatic cylinder enables multi-direction bracketless installation, ideal micro linear actuator for limited-space precision automation in 3C, medical and semiconductor industries.
