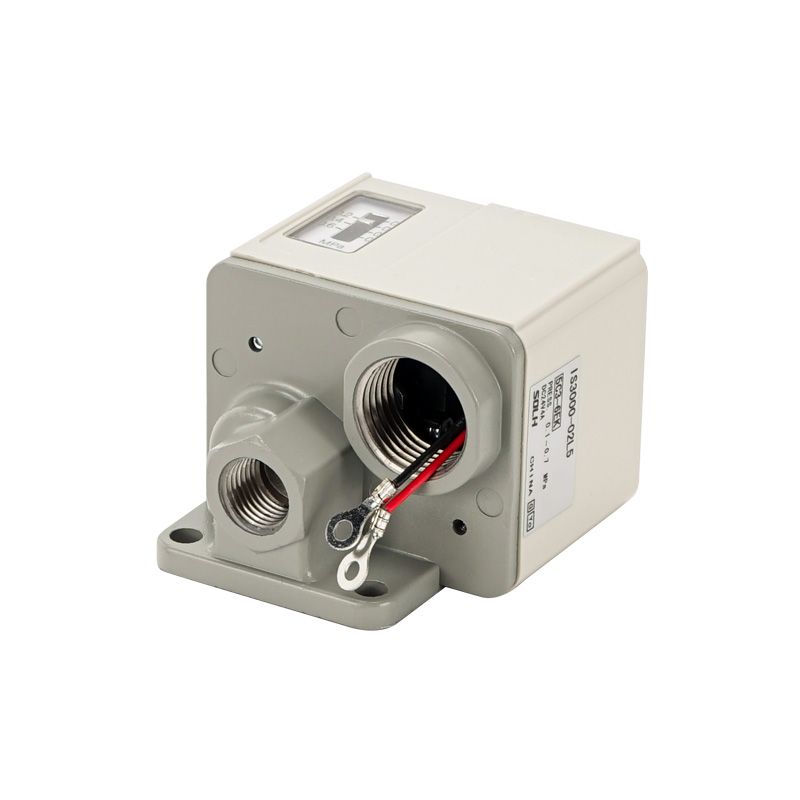

IS3000 Series Mechanical Micro Pneumatic Pressure Switch

Brand: SOLH by Richge Technology

Product Positioning

     SOLH IS3000 series is a classic piston-driven mechanical micro pressure switch. It pushes an internal micro contact switch via air pressure acting on a spring piston, delivering robust direct electrical output. Mainly used for air circuit over/under pressure protection and automatic trigger control, same grade & compatible replacement as IS10 reed switch series. Perfect for heavy vibration environments where electronic digital switches are unstable.

Working Principle & Core Structure

  1. Operating Principle

     -- Compressed air pushes the spring-loaded piston; once air pressure reaches the preset threshold, the piston mechanically actuates the built-in micro switch to open or close the contact circuit. When pressure drops below hysteresis value, the spring resets the piston and restores the original switch state.

  2. Core Structural Components

     -- Top pressure adjustment knob: Direct rotary setting of trigger pressure without power supply

     -- Built-in 1ab micro switch: Universal AC/DC load, directly connect PLC input terminals or drive small solenoid valves

     -- Graduated pressure viewing window: Visible MPa scale for real-time preset pressure reading

     -- Die-cast aluminum housing: IP40 dust protection, suitable for general factory workshop environments

Universal Standard Technical Specification Table

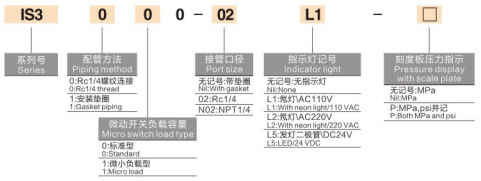

Complete Model Coding & Variant Explanation

  1. Model Example: IS3000-02-P

     -- IS3000: Base standard threaded body series

     -- 02: Port thread code = Rc1/4; suffix N02 = NPT1/4 American thread

     -- P: Built-in neon indicator light (blank = standard model without light)

  2. Derivative Special Models

     -- IS3100: Gasket surface mounting variant, matched with modular air service units (AFC/AC series) for integrated manifold installation

     -- IS3010: Micro low-load dedicated model, optimized for tiny DC signal input of PLC controllers

Key Product Advantages

  1. Shock & Vibration Resistant Heavy-Duty Mechanical Design

     -- Solid piston + micro contact construction, stable performance under continuous vibration from vibrators, knocking hammers and stamping equipment, no signal drift or false triggering.

  2. Simple On-Site Calibration Without Power

     -- Top rotary adjustment knob + visible graduated window; pressure threshold can be set offline without energizing the control cabinet.

  3. Wide AC/DC Load Compatibility

     -- High 1A contact load capacity allows direct driving small solenoid valves without intermediate relays, or direct connection to digital PLC input points.

  4. Ultra-Low Hysteresis

     -- Max dead band ≤0.05MPa, consistent trigger & reset pressure to avoid frequent rapid on-off cycling of downstream equipment.

Matching Typical Industrial Application Scenarios

  1. Main Air Source Low Pressure Protection

     -- Installed downstream of air filter regulator lubricator units; triggers alarm signal if supply pressure drops below 0.4MPa to protect K/GT vibrators, BVP/SK knocking hammers and pneumatic actuators from insufficient thrust damage.

  2. Cylinder Stroke Position Confirmation

     -- After cylinder fully extends, chamber pressure rises to preset value to send switch signal for interlocking the next production process step.

  3. Vibrator Circuit Safety Interlock

     -- Monitors operating air pressure; cuts power to XQ quick exhaust valves when pressure falls below threshold to prevent vibrator burnout caused by under-pressure operation.

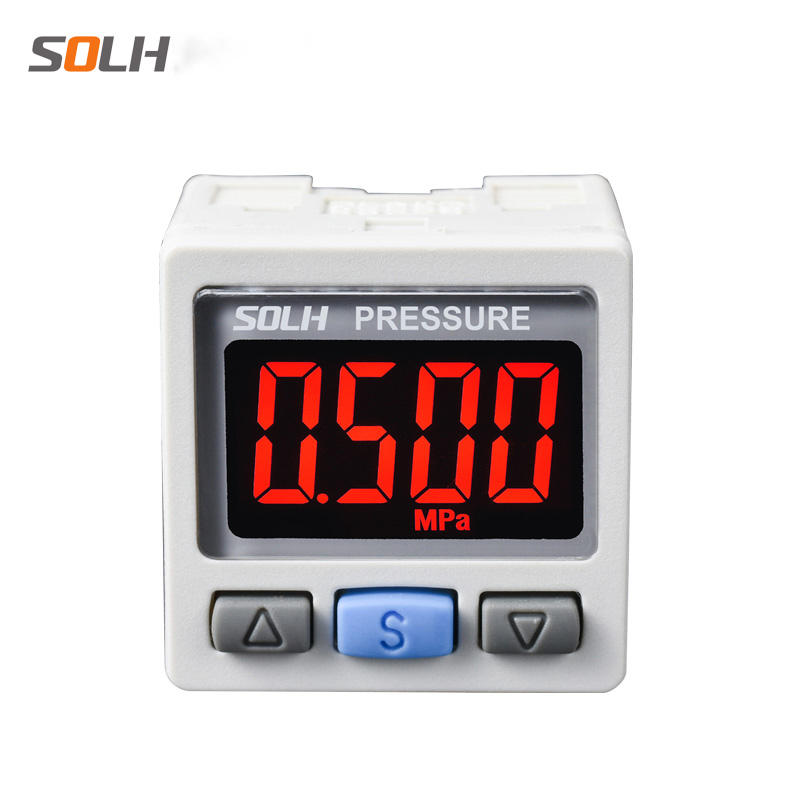

Performance Comparison: IS3000 VS IS10 Reed VS ISE30A Digital Switch

One Sentence Summary

     SOLH IS3000 series piston mechanical pneumatic pressure switch features low hysteresis, heavy vibration resistance and high contact load capacity, with threaded/gasket mount and micro-load PLC variants available, widely used for air circuit pressure safety protection and automatic process trigger signals on vibrators, cylinder clamping stations and general automation equipment.
