VBAT Series Air Tank | Pneumatic Air Reservoir for VBA Booster (SOLH by Richge Technology)

Brand: SOLH by Richge Technology (睿其格科技)

Product Alias: VBAT Pneumatic Air Reservoir, Pressure Storage Tank, VBA Booster Matching Air Tank

Overview

     The SOLH VBAT series air tank is a high-performance industrial pneumatic reservoir specially optimized and matched for VBA pneumatic booster regulators. It serves as a stable pressure storage unit for booster systems, effectively suppressing air pressure fluctuation, compensating instantaneous high air consumption, and improving overall response speed and operational stability of pneumatic boosting circuits. With compact layout, high structural rigidity and diversified material options, it is the standard supporting accessory for energy-saving pneumatic pressure boosting systems.

Core Features & Brand Advantages

1. Perfect Compatibility with VBA Booster Series

     Customized direct-mount structure for VBA booster valves, realizing space-saving assembly, seamless air circuit connection and zero air leakage, forming an integrated high-efficiency pressure boosting system.

2. Dual Material Configuration for Full Scenarios

     Standard carbon steel (SS400) for conventional industrial workshops; optional SUS304 stainless steel for humid, corrosive and clean production environments, ensuring long-term durability.

3. Stable Pressure Storage & Flow Compensation

     Stores stabilized high-pressure air to eliminate cyclic pressure ripple, instantly supplements large airflow demand, and reduces frequent start-stop of booster valves to extend overall system service life.

4. Multi-National Safety Certification

     Supports CE, ASME and GB standard certification. Optional safety pressure valve and manual drain valve ensure overpressure protection and internal water removal, meeting global industrial safety specifications.

5. Standardized & Customizable Design

     Multiple standard capacity options cover conventional pneumatic boosting demands. Custom ports, pressure grades and accessory configurations are available for OEM and ODM personalized requirements.

6. ISO 9001 Quality Manufacturing

     Produced under strict quality control standards, featuring high structural strength, low maintenance and stable batch consistency for long-term continuous industrial operation.

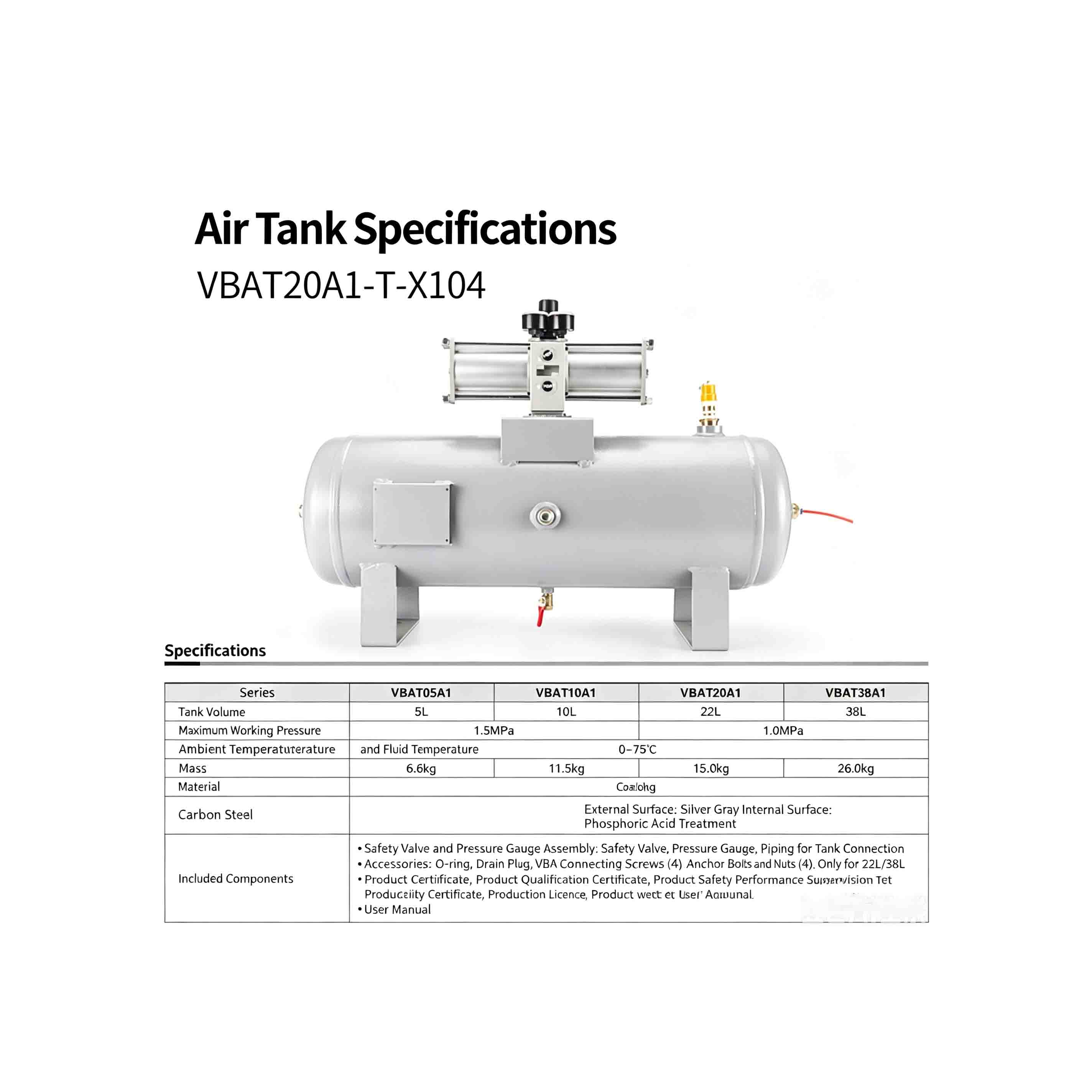

Key Technical Specifications

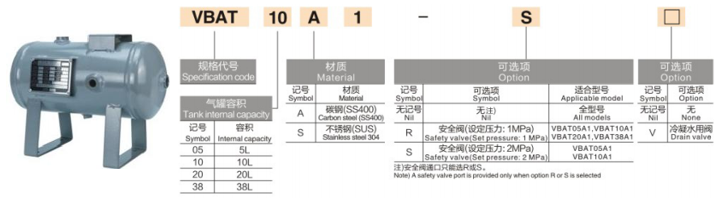

• Standard Capacity: 5L / 10L / 20L / 38L

• Max Working Pressure: 5L/10L: 2.0MPa (290PSI); 20L/38L: 1.0MPa (145PSI)

• Main Material: SS400 Carbon Steel (Standard); SUS304 Stainless Steel (Optional)

• Port Thread: Rc 3/8, 1/2; NPT thread customizable

• Working Temperature: 0℃ ~ 75℃

• Optional Accessories: Safety relief valve, manual drain valve

• Certification Standard: CE, ASME, GB, ISO 9001

Typical Applications

Widely applied in VBA pneumatic booster pressure stabilizing systems, automated production lines, mechanical clamping equipment, high-flow instant air supply scenarios, precision testing instruments, automotive manufacturing, 3C electronics and packaging machinery.
