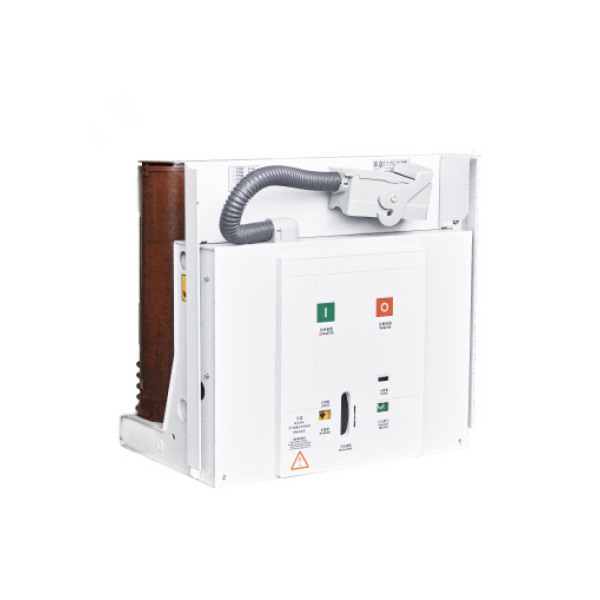

China 24kv Fixed Type Vcb with Modular Mechanism and Insulating Cylinder/24kv Vacuum Circuit Breaker Manufacturer, Supplier, Factory

The switchgear guide rail system controller is a crucial component designed to facilitate the smooth operation of switchgear systems along guide rails. This controller enables precise control of the movement and positioning of switchgear units, ensuring efficient installation, maintenance, and operation.

The Switchgear Guide Rail is a crucial component in electrical switchgear systems, designed to ensure the smooth and reliable operation of various switchgear parts. Constructed from high-strength, corrosion-resistant materials such as stainless steel or galvanized steel, these guide rails provide exceptional durability and stability under demanding conditions.

VSG-12 type Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker VSG type indoor high-voltage vacuum circuit breaker is suitable for switching various loads of different natures and frequent operations in power systems with three-phase AC 50Hz and rated voltage of 7.2kV-40.5kV. It can be used in industries, mining, enterprises, and power plants. And for the protection and control of electrical equipment in substations. It can be equipped with KYN28A and other mid-mounted handcart switch cabinets, and can also be equipped with XGN fixed switch cabinets. The VSG indoor high-voltage vacuum circuit breaker complies with the national standards GB1984 “AC High-voltage Circuit Breaker”, JB/T3855 “3.6~40.5kV Indoor AC High-voltage Vacuum Circuit Breaker” and IEC60056 “High-Voltage AC Circuit Breaker” standards.

We are committed to developing Load Switch, Outdoor High Voltage Auto Recloser, Indoor Voltage Vacuum Breaker that are closer to the needs of consumers and provide consumers with better products. We always take rewarding society as a blessing and take the prosperity and revitalization of the motherland as our own responsibility. Our company takes our enterprise reputation and staff quality ahead of enterprise development as our development guarantee. We insist on the idea of science and technology is the first productive force. With our technical skils, efficient management and high-quality products, we have won praise from our customers with our cost-effective goods. LYL-12 series, suitable for three-phase AC 50Hz, with a rated voltage of 12kV, It features a rugged design, excellent arc extinguishing performance, and reliable operation under harsh grid conditions. LYL-12T load switch complies with the relevant requirements of GB3804-2004 "3.6kV~40.5kV high voltage AC load switch" and GB16926-1997 "AC high voltage load switch-fuse combination appliance". Main circuit: 630A-20kA (4s), 25kA (3s); Mechanical life: 5000 times; Grounding circuit: 20kA (2s); Mechanical life: 2000 times.

Switchgear insulating material is essential in electrical systems to provide safety, efficiency, and reliability. These materials are typically used in the construction of switchgear assemblies to prevent electrical currents from unintentionally passing through different components, reducing the risk of short circuits, electrical fires, and equipment damage. The most common insulating materials used in switchgear include epoxy resin, glass-reinforced polyester (GRP), and various types of thermoplastics, each selected for their unique properties, such as high dielectric strength, excellent thermal stability, and resistance to moisture and chemical corrosion.

Our company excels in designing and manufacturing high-quality Switchgear Drawer Panels for efficient and organized electrical power distribution. Our panels are engineered for durability and ease of use, providing secure and accessible storage for switchgear components. With a focus on reliability and compliance with international standards, our drawer panels enhance the safety and functionality of electrical systems. Ideal for use in power plants, substations, and industrial facilities, our products ensure streamlined operations and optimal performance in various applications.
