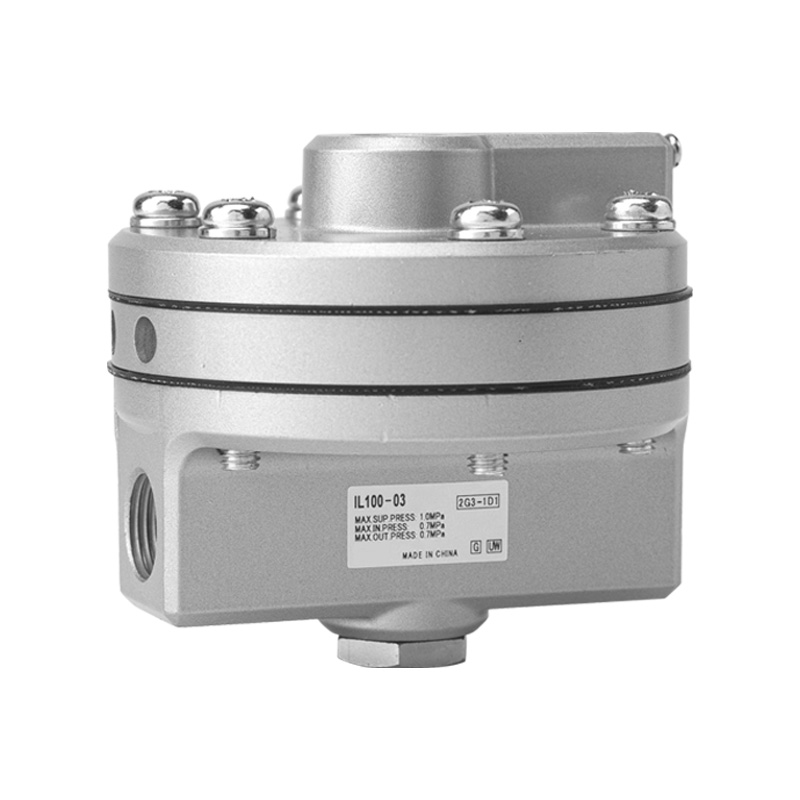

IL100 Series 1:1 Precision Booster Relay (Pneumatic Amplifier)

Brand: SOLH by Richge Technology

Product Positioning

     IL100 series is a 1:1 precision booster relay fully interchangeable with SMC original models, also known as pneumatic signal amplifier or volume booster. Its core function is to convert low-flow control signals into equal-pressure high-flow air output. It effectively solves slow response issues caused by long piping runs and large-volume pneumatic actuators, featuring outstanding precision, ultra-large flow capacity and ultra-fast response speed.

 Core Function & Working Principle

  1. Fundamental Definition

       Pneumatic signal & volume amplifier with precise 1:1 pressure tracking (output pressure strictly equals input signal pressure).

  2. Operation Logic

     --SIG (Signal Port): Receives low-flow control pressure output from positioners or pressure regulators

     --SUP (Supply Port): Connect to main compressed air supply, max supply pressure 1.0 MPa

     --OUT (Output Port): Delivers high-flow air at identical pressure to drive large actuators

     --EXH (Exhaust Port): Rapidly exhausts residual air when control signal pressure drops

  3. Core Value

     Maintain exact signal pressure while amplifying output flow, drastically speeding up actuator movement.

Core Key Features

   1. Ultra-High Flow & Instant Response

     -- Max flow capacity: 6,000 L/min (ANR) under 0.7 MPa supply pressure

     -- Flow coefficient Cv = 1.1

     --Perfect for long-distance piping, large bore cylinders and large diaphragm actuators

   2. High-Accuracy 1:1 Pressure Tracking

     --Linearity error within ±1% full scale

     --Hysteresis ≤ 1% full scale

     --Precise pressure replication with zero pressure drop and no long-term drift

   3. Multiple Port Thread Options

     --Port sizes: 02 (Rc1/4), 03 (Rc3/8)

     --Standard thread: Rc; optional NPT (suffix N), G parallel thread (suffix F)

     --Four dedicated ports: SIG signal, SUP supply, OUT output, EXH exhaust

   4. Wide Temperature & Special Custom Versions

     --Standard model: -5 ~ +60℃

     --Low temp L version: -30 ~ +60℃

     --High temp T version: -5 ~ +100℃

     --Copper-free S version: Compatible with semiconductor manufacturing & high-purity inert gas

   5. Durable Compact Structure

     --Main body: Aluminum alloy with silver anti-corrosion paint coating

     --Net weight: 0.56 kg

     --Two mounting methods: Direct threaded installation; optional metal mounting bracket (suffix B)

Full Technical Specification Table

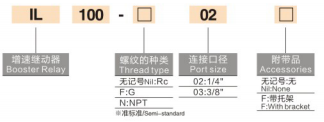

Model Code Explanation (IL100-□-□-□-□)

   Example: IL100-02-N-L-B

     --IL100: Base series code

     --02 / 03: Port size (1/4" / 3/8")

     --Thread suffix: N=NPT thread; no suffix=Rc; F=G thread

     --Special version suffix: L=low temp; T=high temp; S=copper-free

     --B: Equipped with mounting bracket (no suffix = without bracket)

   Common Standard Models

     --IL100-02: Rc1/4 port, standard temperature, no bracket

     --IL100-03-B: Rc3/8 port, standard temperature, with mounting bracket

     --IL100-N03-L: NPT 3/8 thread, low-temperature resistant variant

Typical Application Scenarios

     --Process control valves: Pneumatic regulating valves & diaphragm actuators, paired with positioners to boost actuation speed

     --Long-distance instrument air pipelines: Eliminate slow response caused by long tubing between transmitters and actuators

     --Large-volume pneumatic cylinders: Heavy-duty lifting, clamping and large stroke mechanical actuators

     --High-precision positioning loops: Pneumatic systems requiring accurate pressure follow-up and fast response

     --Semiconductor & high-purity gas equipment: Copper-free S variant for clean process environments

One Sentence Summary

     SOLH IL100 interchangeable booster relay delivers 1:1 precise pressure tracking, maximum 6000 L/min high flow and ±1% high linearity with ultra-fast response, specially designed to eliminate slow actuation lag in long piping and large-volume pneumatic systems.
