Brand: SOLH by Richge Technology | SMC KQ2N Equivalent Stem Straight One-Touch Fitting
KQ2N is a stem-style straight pneumatic fitting. One end is male thread or stem, the other end accepts PU/PA air tubing. It is a direct replacement for SMC KQ2N series one-touch fittings. Widely used in pneumatic circuits and vacuum pipelines. Tool-free installation, simply press the release collar to insert or remove tubing quickly.
Four structural types available:
Male thread stem type (M thread: M5)
Male thread stem type (Imperial taper R thread: 1/8,1/4,3/8)
• Equal diameter stem straight (-99 suffix): both ends with same OD stem
• Reducing stem straight fitting: two stems with different outer diameters for size transition
Example: KQ2N04-M5
• KQ2N: Series code, stem type straight fitting
• 04: Tube outer diameter Φ4mm on push-in side
• M5 / 01S / 02S: Male thread specification
• -99: Equal diameter stem straight fitting
• 04-06: Reducing stem fitting, ①Φ4 → ②Φ6
|
Code Segment |
Description |
|
KQ2N |
Series code: Stem type straight push-in fitting |
|
04/06/08/10/12/16 |
Tube outer diameter ΦD (mm) |
|
M5 |
Metric male thread M5×0.8 |
|
01S/02S/03S |
Imperial R taper thread: R1/8, R1/4, R3/8 |
|
-99 |
Equal diameter stem straight fitting, both ends same OD |
|
Dual digits e.g.04-06 |
Reducing stem fitting: ① inlet OD, ② outlet OD |
|
Item |
Parameter |
|
Applicable Tubing |
PU polyurethane tube, PA nylon tube |
|
Operating Pressure |
0~1.0MPa, compatible with vacuum negative pressure circuit |
|
Operating Temperature |
0℃ ~ +60℃ |
|
Body Material |
Plastic body; Nickel-plated brass threaded part, corrosion resistant |
|
Sealing Performance |
Excellent thread sealing |
|
Connection Method |
Push-in; press release collar to detach tube |

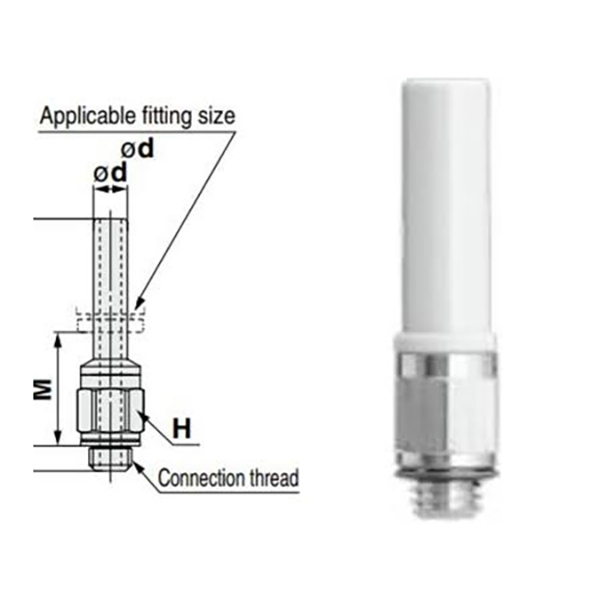

4.1 Metric M Male Thread Version
|
Model |
Thread |
Tube ΦD |
|
KQ2N04-M5 |
M5×0.8 |
Φ4 |
|
KQ2N06-M5 |
M5×0.8 |
Φ6 |

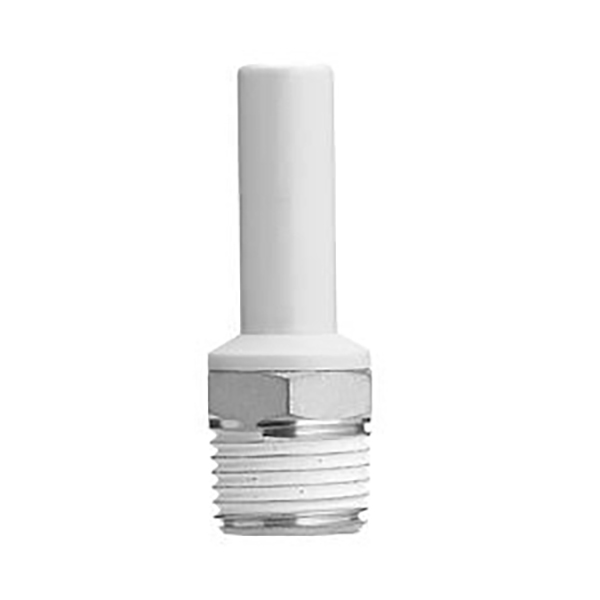

4.2 Imperial R Taper Male Thread Version
|
Model |
Thread R |
Tube ΦD |
|
KQ2N04-01S |
R1/8 |
Φ4 |
|
KQ2N06-01S |
R1/8 |
Φ6 |
|
KQ2N06-02S |
R1/4 |
Φ6 |
|
KQ2N08-02S |
R1/4 |
Φ8 |
|
KQ2N08-03S |
R3/8 |
Φ8 |
|
KQ2N10-03S |
R3/8 |
Φ10 |

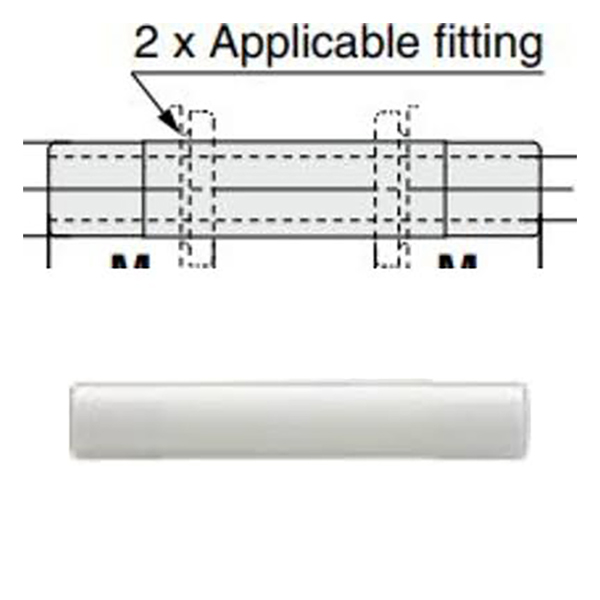

4.3 Equal Diameter Stem Straight (-99 Series)
|
Model |
ΦD |
|
KQ2N04-99 |
Φ4 |
|
KQ2N06-99 |
Φ6 |
|
KQ2N08-99 |
Φ8 |
|
KQ2N10-99 |
Φ10 |
|
KQ2N12-99 |
Φ12 |
|
KQ2N16-99 |
Φ16 |

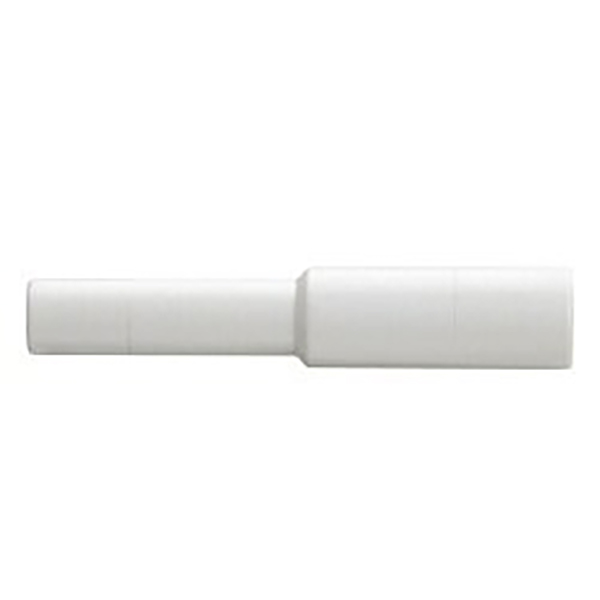

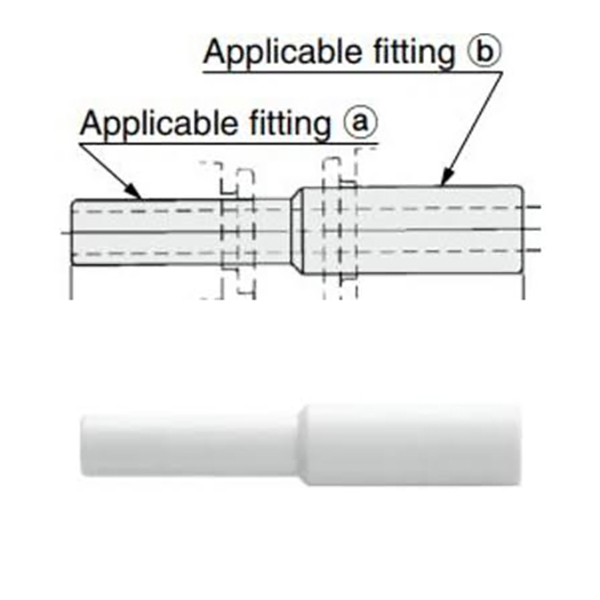

4.4 Reducing Stem Straight Fitting
|
Model |
① Stem OD |
② Stem OD |
|
KQ2N04-06 |
Φ4 |
Φ6 |
|
KQ2N06-08 |
Φ6 |
Φ8 |
|
KQ2N08-10 |
Φ8 |
Φ10 |
|
KQ2N10-12 |
Φ10 |
Φ12 |
|
KQ2N12-16 |
Φ12 |
Φ16 |
Plastic body with nickel-plated brass thread for corrosion resistance and reliable thread sealing
• Compatible with PU polyurethane air tube and PA nylon tube
Rated working pressure 0~1.0MPa, suitable for vacuum negative pressure circuits
• Operating temperature range: 0℃ ~ +60℃
• Simple assembly: keep tube end smooth and insert directly; press front release collar to pull out tubing for disassembly
Automation machinery, robotic arms, vacuum adsorption systems, pneumatic fixtures, air compressor piping. Direct replacement for imported SMC KQ2N series fittings.
