China reverse flow regulator Manufacturer, Supplier, Factory

SOLH XTO674 and INA14 inline check valves share the same structural platform with ultra-low 0.01MPa cracking pressure, compatible with both compressed air and clean water for anti-backflow protection in vacuum and low-pressure fluid pipelines. XTO674 is an all-brass cryogenic version working down to -30℃; INA14 standard series provides brass or SUS304 stainless steel body, equipped with standard NBR seals plus optional oil & high temp resistant FKM and weather-proof CR seals. Compact inline threaded design with flow arrow marking can be directly mounted in pipelines without extra brackets, effectively preventing vacuum loss and reverse airflow when installed between vacuum generators and suction cups. The two series feature identical overall dimensions and thread sizes for direct field interchange without pipe modification, widely applied in cryogenic equipment, vacuum production lines, corrosion-resistant high-temperature fluid circuits and general pneumatic & water pipelines for one-way pressure retention and backflow prevention.

SOLH VCH400 (VCH410) series pilot operated 3-port poppet solenoid valve is customized for medium & high-pressure gas pipelines with max operating pressure up to 5.0MPa. Equipped with high-pressure polyurethane elastic seals and large-size ISO G threads (G1/2, G3/4, G1), it delivers high flow capacity and ≤±2ms response deviation, with outstanding vibration & shock resistance and 10-million-cycle service life. Drip-proof structure reaches equivalent IP65 protection; the NC version automatically vents upon power loss, ideal for high-pressure charging, venting and pressure conversion circuits, and perfectly matched with SOLH VCHR high-pressure regulators. Only applicable to clean dry compressed air and inert gas. Coil-down mounting is prohibited, and periodic cycling actuation is required to avoid poppet adhesion. It serves as reliable control component for industrial high-pressure air charge & vent equipment.

FZRN21 series Ac and HV indoor vacuum load break switch, this product has a breaking capacity, safety and reliability, long life, can operate freguent, compact structure, small size, light weight, the basic no need to maintain. FZN21-12 series high-voltage vacuum load switch is mainly composed of framer, disconnecting switch (current-limiting fuse of the combiner is in the disconnecting switch), vacuum switching tube, grounding switch, spring operating mechanism and so on. This product has compact structure, small volume, long life, strong closing and breaking capacity, and easy operation and maintenance. The vacuum switch is equipped with a spring-operated mechanism, which adopts an electric motor (another manual) spring energy storage, and there are two types of closing methods: electromagnet closing and manual splitting and closing. The disconnecting switch, vacuum switch and earthing switch are interlocked with each other (mechanical interlocking) to prevent misoperation. FZN21-12D/T630-20, FZN21-12DR/T125-31.5 type high-voltage vacuum load break switch and fuse switch are operating in three-phase AC electrical 12kV, 50Hz power distribution system, with a compact, small size, light weight, long service life, high making and breaking ability, safe and reliable, and if load switch cooperated with fuse namely fuse switch can replace those fuses with higher cost, easy and convenient operation and maintenance

The Switchgear round pull handle is a mechanical device used to manually operate the switchgear. The circular handle is a component in the panel of the manually operated switch cabinet. This handle is indispensable to ensure that the operator can safely and efficiently connect or disconnect the components of the switchgear without the need for an external power supply or complex tools.

Switchgear drawer roller assembly Our company provides top-quality Switchgear Drawer Roller Assemblies, engineered for smooth and reliable operation in switchgear systems. These assemblies are crafted from durable materials to ensure long-lasting performance and resistance to wear. Designed to facilitate easy and smooth drawer movement, they enhance the accessibility and functionality of switchgear panels. Our roller assemblies meet rigorous industry standards for performance and safety, making them a trusted choice for optimizing the efficiency of electrical equipment. Depend on us for innovative, high-quality solutions tailored to your switchgear needs.

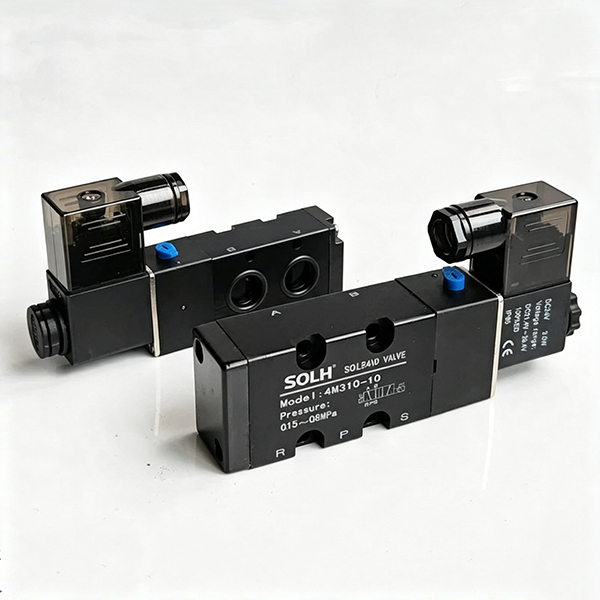

SOLH 4M series plate-type 5/2-way solenoid valves strictly comply with international NAMUR mounting standards, purpose-built for direct assembly onto pneumatic actuators driving ball valves and butterfly valves. The integrated bottom base comes with pre-embedded P, A, B, R1 and R2 air passages, enabling seamless docking with actuator air cavities without external tubing for A/B working ports. This streamlined layout drastically cuts pipeline layout workload and potential air leakage points compared with conventional tube-connected 4V series solenoid valves. This lineup adopts internal pilot spool construction with oil-free operation, offered in single-coil spring reset (4M×10) and double-coil latching memory (4M×20) configurations covering three size grades: 4M100, mainstream 4M200 and high-flow 4M300. Single electric control variants automatically reset under spring tension once power is disconnected for fail-safe reset scenarios, while double electric control versions retain their switching position steadily after power cut to sustain valve opening/closing status for long-term pipeline locking. Each unit is fitted with a side-mounted manual override button for convenient offline commissioning and maintenance testing. Coils support widely used global AC/DC voltages with IP65 dustproof and waterproof ingress protection, suitable for rigorous working conditions in water treatment, chemical pipelines and general industrial fluid switching. The series is dimensionally compatible with manifold bases shared with the equivalent 4V series, supporting standalone actuator installation or centralized valve island assembly via multi-station manifolds. With certified standard NAMUR interface, interchangeable with mainstream Airtac 4M series, it serves as a dedicated matched control component for automated on-off regulation of pneumatic ball and butterfly valve actuators.
