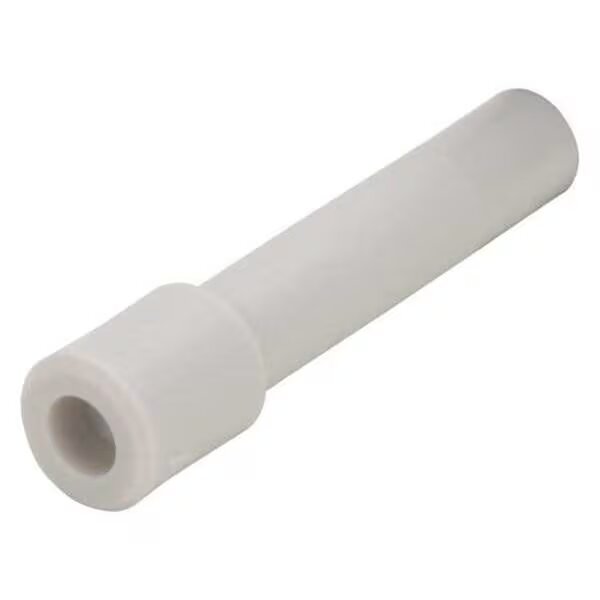

KQ2P Push Fit Female End Cap Plastic

SOLH KQ2P Series Push-In Plug | KQ2 Pneumatic Tube Stopper

Brand: SOLH by Richge Technology | SMC KQ2P Compatible Push-In Tube Plug for KQ2 One-Touch Fittings

1. Product Overview

     KQ2P is a dedicated push-in plug for SOLH KQ2 series one-touch fittings. It directly inserts into the tube inlet of KQ2 fittings for temporary or permanent sealing of tube ports, idle fitting closure and pressure testing. Tool-free and plug-and-play.

2. Model Code Naming Rule

   Format: KQ2P-XX
     KQ2P: Series code, push-in tube plug
     XX: Matched tube outer diameter (mm)
  Common models:
     KQ2P-04 → Φ4 tube
     KQ2P-06 → Φ6 tube (most widely used)
     KQ2P-08 → Φ8 tube
     KQ2P-10 → Φ10 tube
     KQ2P-12 → Φ12 tube
  KQ2P-23 → Φ3.2 thin tube

3. Key Technical Specifications

4. Critical Difference: KQ2P vs KQ2C

5. Installation & Usage Notes

     • Ensure tube port is flat and burr-free, push plug fully in for sealing; no PTFE tape required.

     • Plug removal: grip plug root and pull out directly. No release collar needed.

     • Vacuum limitation: good sealing under general working conditions. Not suitable for long-term high vacuum holding, minor leakage may occur.

     • Max pressure ≤1MPa. Overpressure and pressure shock are prohibited.

6. Selection Guide

     • Φ4 small tube → KQ2P-04

     • Standard Φ6 → KQ2P-06 (first choice)

     • High flow Φ8 / Φ10 → KQ2P-08 / KQ2P-10

     • External dust protection only → KQ2C protective cap
