ARM5 Series Ultra-Compact Pressure Regulator (ARM5S)

Brand: SOLH by Richge Technology

Product Positioning

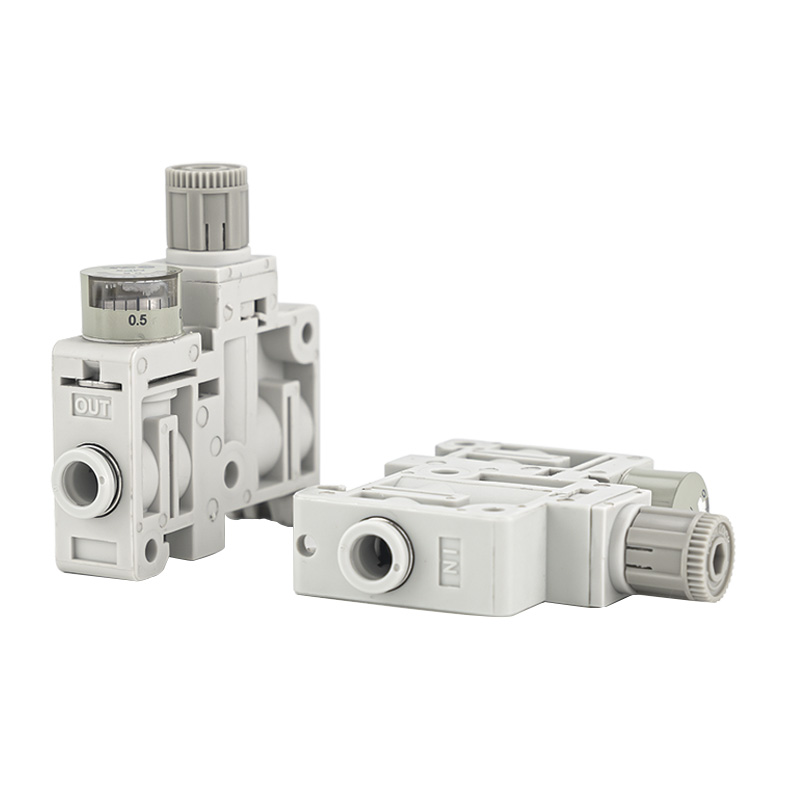

     ARM5 single regulator model ARM5S is a 14mm ultra-narrow direct-acting piston pressure regulator with built-in standard reverse flow function. It features tiny dimensions, optional single independent installation or manifold stacked assembly, integrated one-touch push-in connectors and high-precision pressure tuning. This mini regulator is customized for miniature pneumatic circuits with strict space limitation requirements.

Structure & Working Principle

     · Direct-acting piston construction; relief version as standard, non-relief version optional

     · Standard reverse flow design permits backflow from outlet port to inlet port

     · Integrated push-in fittings available in straight and elbow types for φ4, φ6, 5/32" and 1/4" tubing

     · Two mounting solutions: direct panel mounting and DIN rail mounting

     · Ultra-light body weighing merely 33 grams

Core Key Features

     1. 14mm Ultra-Compact Narrow HousingThe body width is only 14mm, with volume reduced to 1/7 of conventional AR20 standard regulators. It fits seamlessly inside embedded machinery, control panels and compact small jigs.

     2. High-Precision Adjustable PressureAdjustable pressure range covers 0.05–0.7 MPa. Standard relief model releases excess pressure automatically for stable output; optional non-relief model delivers superior pressure retention performance.

     3. Built-In Standard Reverse Flow FunctionThe internal channel opens automatically once outlet pressure exceeds inlet pressure. It can be directly installed downstream of solenoid valves to simplify overall air circuit layout.

     4. Flexible Connectors & Multiple Mounting WaysStraight and elbow fittings are interchangeable for inlet and outlet ports. The regulator supports direct fixing and DIN rail stacking, with an optional side-mounted pressure gauge rated at 0.8MPa.

     5. Corrosion Resistant & Long Service LifeCombined resin and aluminum alloy housing resists corrosion. The applicable ambient temperature ranges from -5℃ to +60℃. Lubrication-free operation ensures stable long-term cycling performance.

Technical Specification Table

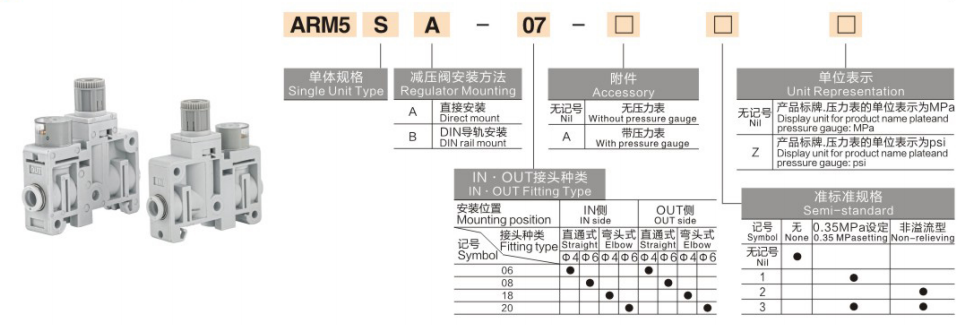

Model Code Explanation

Example: ARM5SA-07-A

     · ARM5S: Single independent regulator body

     · A: DIN rail mount; B: Direct panel mount

     · 07: Fitting configuration (IN straight + OUT straight for φ6 tube)

     · A: Equipped with side pressure gauge; blank = without gauge

Typical Application Scenarios

     Miniature automation equipment and precision jigs for 3C electronics, medical devices and small robots Equipment layouts with extremely limited installation space Micro-flow precision control: air blowing, vacuum suction, fluid dispensing and positioning actuation Multi-circuit manifold stacking systems, supporting up to 10 connected stations Series installation behind solenoid valves utilizing reverse flow characteristic

One Sentence Summary

     ARM5S mini pressure regulator features a 14mm ultra-narrow piston structure, standard reverse flow design, integrated push-in fittings, single/manifold mounting and only 33g lightweight body, serving as the preferred solution for micro precision pneumatic pressure control.Meta Title & Meta DescriptionMeta Title: ARM5S 14mm Ultra Compact Mini Pressure Regulator | Richge Technology Meta Description: Richge ARM5S miniature pneumatic regulator with standard reverse flow, DIN rail manifold mount, lightweight 33g design for small precision automation circuits.
