SC Series Standard Air Cylinder (Tie-Rod Double Acting Type)

Brand: SOLH by Richge Technology

Product Overview

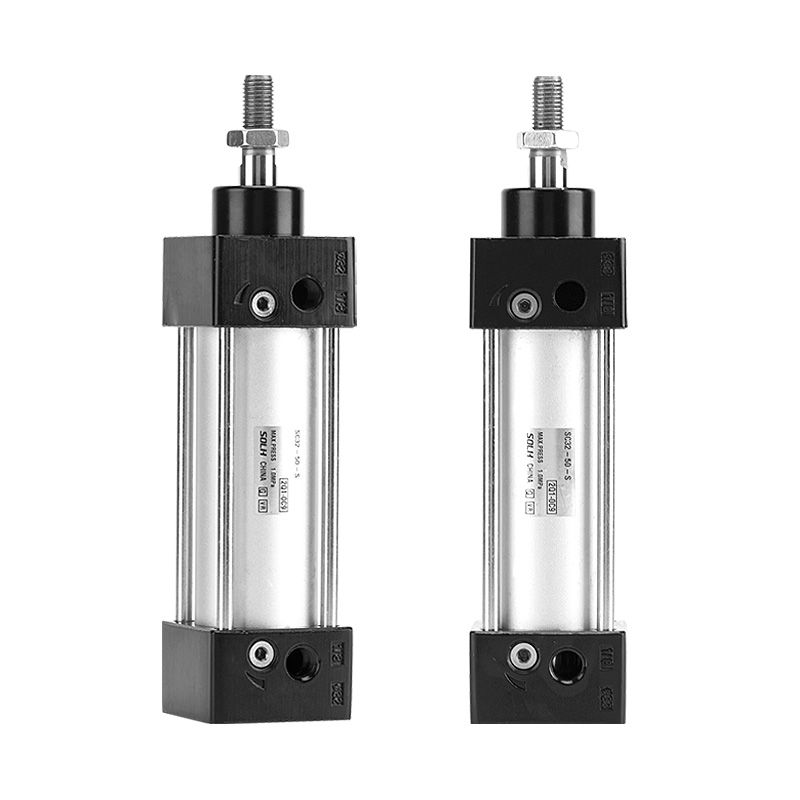

     SOLH SC series tie-rod standard cylinder, basic model is single rod double acting type. Four tie rods lock front and rear end caps for rigid structure, complete mounting accessories, wide stroke range. Widely used for pushing, material handling and positioning in automation lines, which is the most popular economical standard pneumatic cylinder.

Core Structure & Design Features

     -- Structure: Four tie rods connect aluminum barrel and end caps, high rigidity, anti-impact, stable long-term operation.

     -- Acting Type: Single rod double acting, bidirectional output force.

     -- Material: Hard anodized aluminum barrel, bidirectional piston seal; hard chrome plated 45# steel piston rod.

     -- Cushion: Adjustable air cushion on both ends to reduce impact and operation noise.

     -- Sensor Installation: Sensor grooves on tie rod area for CMSG/DMSG/EMSG magnetic switches to detect piston position.

     -- Advantage: Shorter body length under same bore size compared with ISO15552 profile cylinder, cost competitive.

Complete Model Coding Rule

   1. Model Example：SC50×100-S

   2. Derivative Models

     -- SCD: Double rod double acting, anti-torsion

     -- SCJ: Double rod with adjustable stroke

     -- SCF: Integrated solenoid valve cylinder

     -- SCL: Lockable cylinder, load holding when air cut off

   3. Standard Order Examples

     -- SC63×150-S: Bore63, stroke150, built-in magnet, basic type

     -- SCJ40×200-S: Bore40, stroke200, adjustable stroke, with magnet

Core Technical Specifications

Theoretical Thrust @0.5MPa (Single Rod, Unit:N, Safety Factor ≥2)

Mounting Types & Accessories

   1. Mounting Options

     --  Basic type, FA/FB flange, CA/CB clevis, LB foot mount, TC/TCM1 trunnion.

   2. Optional Accessories

     -- Floating joint, rod eye, I/Y/U/F connector, CMSG/DMSG/EMSG magnetic switches.

3-Step Fast Selection Guide

   1. Bore selection: Calculate required thrust based on load, reserve ≥50% safety margin; upgrade size for cantilever /offset load.

   2. Stroke confirmation: Add 10~20mm safety margin on effective travel; max standard stroke 1000mm.

   3. Configuration matching

     -- Position feedback: Choose -S magnet model and match magnetic switches;

     -- Mounting: Select flange /foot/clevis according to machine layout;

     -- Special function: SCD for double rod, SCJ for adjustable stroke, SCL for load locking.

One Sentence Summary

     SOLH SC series economical tie rod standard cylinder with adjustable air cushion and abundant mounting options, ideal low-cost linear actuator for general automation pushing, transferring and positioning tasks.
