SE Series ISO15552 Tie-Rod-Free Square Standard Cylinder

Brand: SOLH by Richge Technology | Export Catalog Version

Product Overview

     SOLH SE series tie-rod-free square standard cylinder complies with ISO 15552 / VDMA 24562 international standard. Adopt integrated square aluminum barrel with adjustable double-end air cushion and 3-side sensor mounting grooves. Suitable for general automation, long stroke, high-frequency cycling and medium-heavy load applications. Direct mechanical interchange with SMC CP96S and FESTO DNC series.

Core Structure & Design Features

   1. Structure: Integrated square aluminum barrel without tie rods, matched with front & rear end caps, adjustable air cushion on both ends, high rigidity and compact layout.

   2. Material: Hard anodized aluminum barrel, high-strength cast end caps, hard chrome plated 45# steel piston rod, lightweight and wear-resistant.

   3. Operation Variants

     -- SE: Single rod double acting standard model

     -- SED: Double rod double acting for anti-torsion

     -- SEJ: Double rod with adjustable stroke

     -- BSE: Lockable cylinder for intermediate position holding

     -- Suffix -S: Built-in magnetic ring for magnetic switch (without -S = no magnet)

   4. Sealing: NBR+PA composite double Y-type sealing with oil storage compensation, low startup pressure and long service life.

   5. Cushion: Independently adjustable air cushion on both ends to absorb impact, reduce vibration and noise.

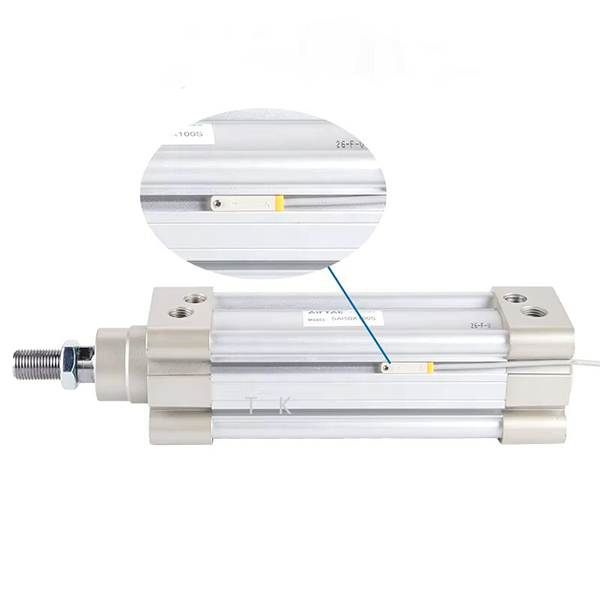

   6. Sensor Layout: Three-sided mounting grooves (top / left / right) for CMSE / DMSE magnetic switches, flexible installation angle.

   7. Interchangeability: ISO15552 standard dimension, direct replacement for SMC CP96S and FESTO DNC.

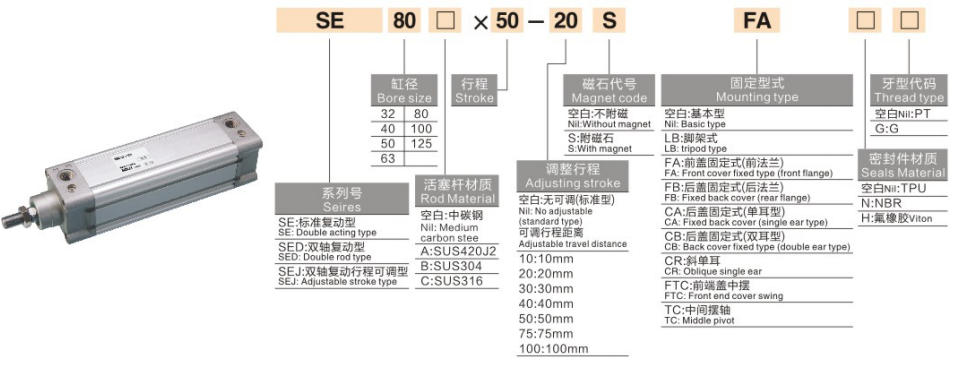

Complete Model Coding Rule

   1. Model Example：SE50-200-S-FA

   2. Standard Order Examples

     -- SE63-150-S-LB: Bore63, stroke150, built-in magnet, foot mounting

     -- SED40-100-FB: Bore40, stroke100, double rod, rear flange mounting

     -- BSE80-300-S: Bore80, stroke300, lockable type with built-in magnet

Core Technical Specifications

Theoretical Thrust & Pull Force @0.5MPa (Single Rod, Unit:N)

   1. Double Acting SE Single Rod

Mounting Types & Derivative Models

   1. Mounting Options

     -- Basic Type: Direct installation through end cap holes

     -- LB Foot Mount: Preferred for horizontal medium-heavy load

     -- FA/FB Flange: Front /rear flange for vertical fixture installation

     -- CA/CB Clevis: Single/double clevis for hinged swing motion

   2. Main Derivative Series

     -- SE / SED / SEJ: Single rod, double rod, adjustable stroke double rod

     -- BSE: Lockable cylinder for arbitrary intermediate position stop

     -- High-temperature customized version: Special seal for -20~+150℃

3-Step Fast Selection Guide

   1. Bore selection: Calculate required thrust, reserve ≥50% safety margin; prioritize SE for heavy load & long stroke.

   2. Stroke confirmation: Add 10~20mm safety margin; standard max stroke 1000mm, customized up to 1800mm.

   3. Configuration matching

     -- Position feedback: Select SE-S magnet model, match CMSE/DMSE magnetic switches;

     -- Mounting: LB foot mount for horizontal load, FA flange for vertical installation;

     -- Intermediate locking requirement: Choose BSE lockable cylinder.

One Sentence Summary

     SOLH SE ISO15552 square tie-rod-free cylinder can directly replace FESTO DNC and SMC CP96S, equipped with adjustable air cushion and abundant mounting forms, perfect long-stroke linear actuator for medium-heavy load automation equipment.
