TR Series Twin Shaft Cylinder | JIS Standard High-Rigidity Double Rod Cylinder

Brand: SOLH by Richge Technology

Product Overview & Core Structure

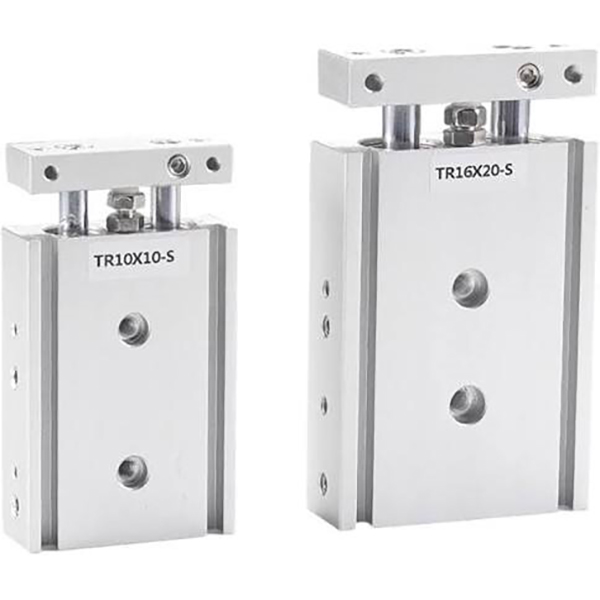

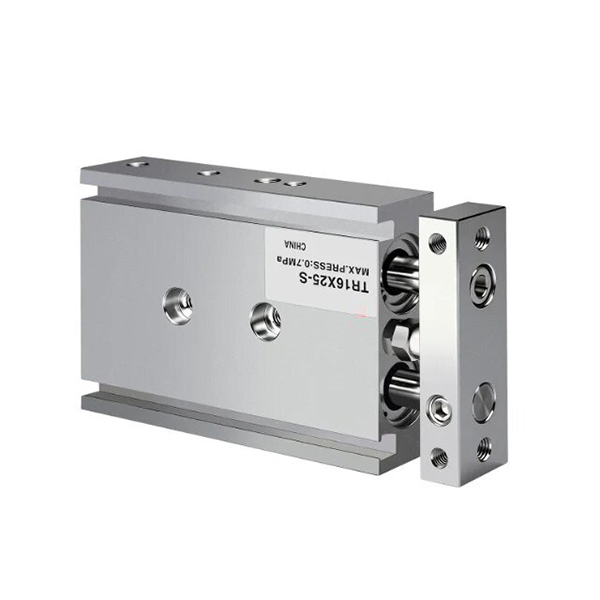

     The SOLH TR series is a JIS standard twin shaft cylinder adopting a single-piston double-rod and slide bearing guiding structure (non-dual-piston twin cylinder). Featured with ultra-high rigidity, excellent anti-torsion performance and strong lateral load resistance, it supports 3-side flexible mounting and precise stroke adjustment. Engineered for high-precision guiding requirements, this cylinder is widely used in automated processes such as precision positioning, workpiece pressing, material transferring and workpiece blocking, serving as a reliable heavy-load guiding solution for standard automation stations.

1. Core Structural Advantages

• High-Rigidity Synchronous Double Rod Structure: Equipped with a single piston and two parallel rigid piston rods, matched with extended slide bearing bushes. The dual-rod synchronous driving design achieves zero-deflection operation with anti-rotation accuracy of ±0.1°~±0.2°, effectively eliminating rod swinging and ensuring stable linear motion.

• Adjustable Buffering & Stroke Fine-Tuning: Built-in front adjustable rubber anti-collision pad supports precise stroke fine-tuning and soft buffering, cooperating with rear fixed buffer to reduce operating impact, vibration and noise, adapting to frequent reciprocating working conditions.

• Flexible Mounting & Piping Design: Reserved mounting holes on the bottom, top and side surfaces realize 3-direction flexible installation. Optional dual-side piping layout optimizes air circuit arrangement for diverse equipment structures. Standard side switch grooves allow direct magnetic switch installation without extra brackets.

• Standard Magnetic Configuration: Built-in magnetic ring (S suffix) is available for stroke position detection; non-magnetic version is optional for special interference-sensitive scenarios to meet diverse functional demands.

2. Key Difference vs CXS / CXSJ Series

• TR Series: Single-piston double-rod structure with standard single-cylinder thrust output, higher overall rigidity and superior heavy-load anti-deflection performance, ideal for high-rigidity guiding and long-stroke heavy-load scenarios.

• CXS / CXSJ Series: Dual-piston double-rod structure with double thrust output, featuring lower friction and smoother high-speed operation, more suitable for high-speed pick-and-place and high-thrust short-stroke working conditions.

Core Sub-Series Classification (Rod Type & Mounting Style)

The TR series covers three core sub-models, fully covering standard universal, bilateral synchronous and ultra-compact installation scenarios to match diversified automation layout demands.

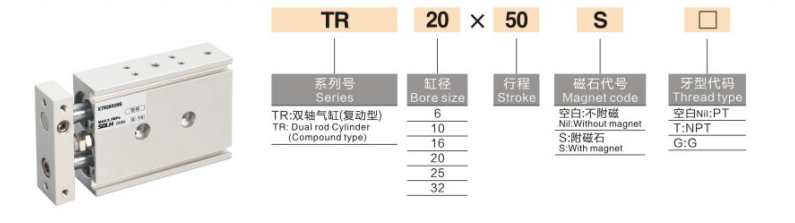

Complete Model Naming Rules

Model Example: TR20×50S

1. Naming Code Definition

1. Series Code: TR (standard single rod) / TRW (double through rod) / TRJ (compact type)

2. Bore Size: 6 / 10 / 16 / 20 / 25 / 32mm (full standard JIS bore range)

3. Standard Stroke: 5/10/15/20/25/30/40/50/60/75/80/100/125/150/175/200mm (max stroke: 200mm)

4. Magnetic Ring Configuration: S = built-in magnetic ring (magnetic switch mountable, default standard); No S = non-magnetic type (special customized, rarely used)

5. Port Thread Type: Default PT (Rc) thread; optional G thread (suffix G) / NPT thread (suffix T)

6. Magnetic Switch: Optional D-M9B, D-A93, CS1-J, CS1-G and other universal models, directly installed on side reserved grooves without brackets

General Standard Technical Parameters

(Standard test conditions: 20℃ normal temperature, dry air)

• Operation Mode: Double-acting single-piston driving

• Working Pressure Range: 0.15~1.0MPa (φ6 bore: 0.2~1.0MPa)

• Proof Pressure: 1.5MPa

• Ambient Temperature: -20℃~70℃ (ice-free operating environment)

• Operating Speed: 30~500mm/s

• Anti-Rotation Accuracy: ±0.1° (bore ≥16mm, high precision); ±0.2° (φ6/φ10 small bores)

• Buffer Mode: Front adjustable rubber anti-collision pad + rear fixed rubber buffer (no air buffer option)

• Piping Port Size

￮ φ6 / φ10: M5×0.8

￮ φ16 / 20 / 25 / 32: PT1/8 (Rc1/8)

• Mounting & Piping: 3-side mounting (bottom / top / side), optional dual-side piping layout for flexible layout adaptation

Theoretical Thrust & Tension Data (@0.5MPa, Unit: N)

Single-piston structure with standard single-cylinder thrust output, stable and reliable for heavy guiding scenarios

Quick Selection Guide

1. Thrust & Rigidity Demand: Choose CXS/CXSJ for double thrust output and high-speed pick-and-place tasks; select TR series for high-rigidity guiding, heavy-load resistance and long-stroke stable operation.

2. Installation Space Adaptation: Prefer CXSJ for ultra-compact narrow space, CXS for conventional compact space, and TR for standard space and long-stroke heavy-load scenarios.

3. Rod Type Selection: Adopt standard TR single-end rod for single-direction linear motion; choose TRW double through rod for bilateral mounting and bidirectional synchronous action.

4. Positioning Detection Configuration: Select S suffix with built-in magnetic ring (TRxx×xxS) if stroke position detection is required.

One Sentence Summary

     The SOLH TR series JIS standard twin shaft cylinder delivers high rigidity, precise anti-rotation performance and strong lateral load resistance, with diverse rod types and compact versions available, being the preferred solution for high-precision guiding, long-stroke and heavy-load automated positioning and transferring stations.
