VsG indoor high voltage vacuum circuit breaker (hereinafter referred to as circuit breaker) is used for 12kV power system indoor switching equipment, as power grid equipment, industrial and mining enterprises power design protection and control unit, suitable for switching on and off loads of different nature and freguent operation, multiple times of short circuit current occasions. Product adopts the new type of circuit breaker operating mechanism, a VsG part can adopt international brand enclosed column, the vacuum arcing chamber and main electric circuit parts enclosed into a whole, to protect the arcing chamber from the effects of collision, dust and condensation, environment adaptable, greatly reduces the operation maintenance cost, realize the product a part of free maintenance, operation mechanism and less maintenance; Operation mechanism and circuit breaker body integrated design, through the type test verification.

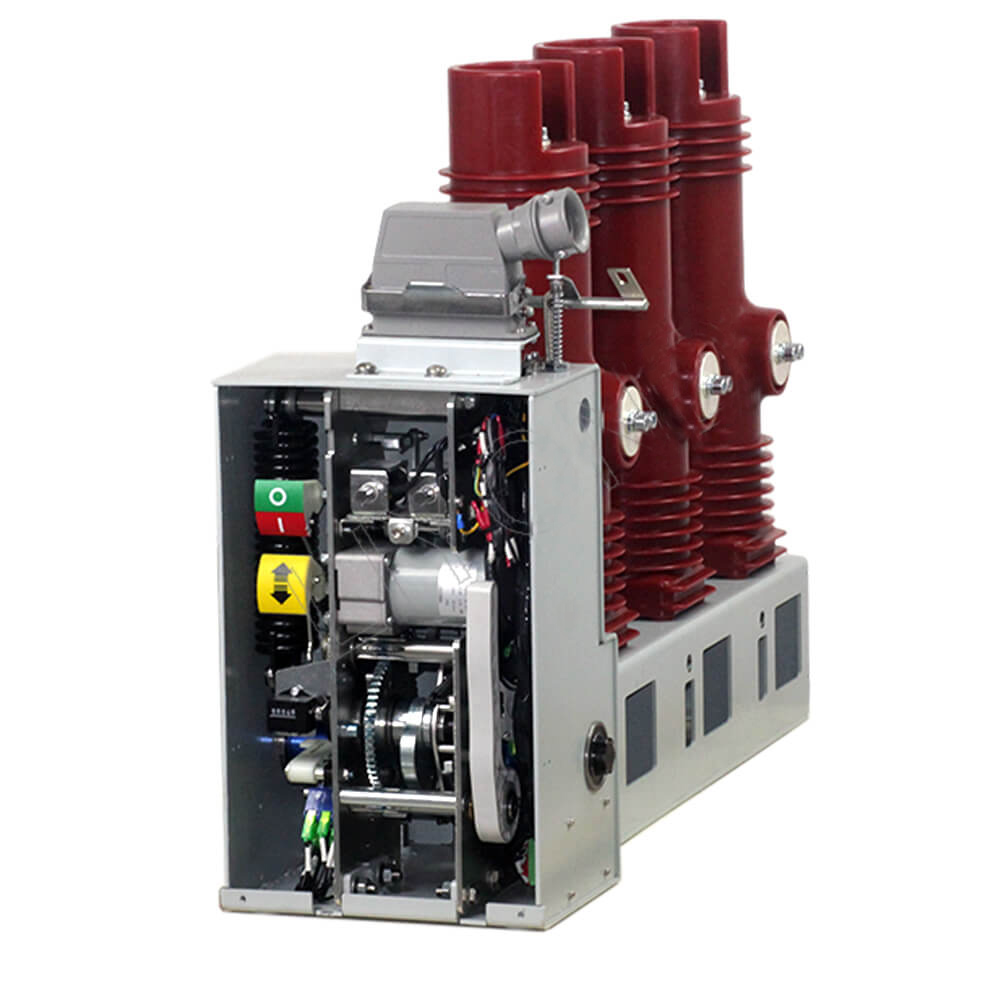

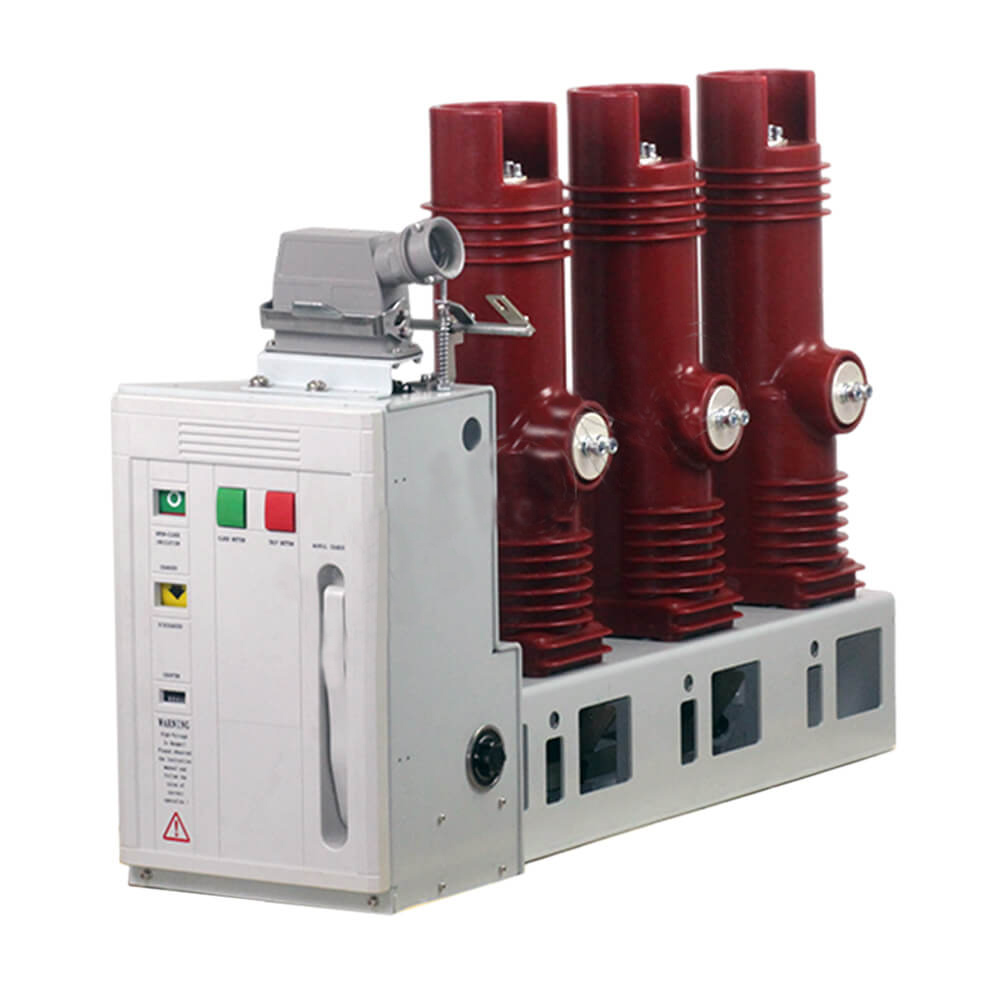

The 24kV side-mounted vacuum circuit breaker (with VGS spring operating mechanism) is a highly efficient and safe power protection device designed for medium to high-voltage networks, featuring excellent insulation properties and breaking capacity.
Features
High Reliability: Utilizes vacuum interruption technology for minimal switching losses.
Fast Operation: The VGS spring mechanism ensures stable and quick operational response.
Durability: High-quality materials guarantee long-term stable operation with low maintenance costs.
Compact Design: Space-saving design suitable for various installation environments.
Main advantages
Safe and reliable, able to meet operational requirements under special conditions
Over 22 years of manufacturing experience
Brand vacuum arc extinguishing chamber and fixed sealing pole
Reliable operating mechanism
Excellent operational system ensures stable quality and convenient delivery
Complete solutions, convenient ordering, and easy installation
 |
 |
A) Ambient temperature
Maximum temperature: +40c Minimum temperature: -150C
B) Environmental humidity
Daily average relative humidity :<95%
Monthly average relative humidity : < 90%
Daily average vapor pressure: < 10-2.2 MPa
Monthly mean vapor pressure; < 1.8 x 10 mpa
C) Altitude: no more than 1000m;
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
