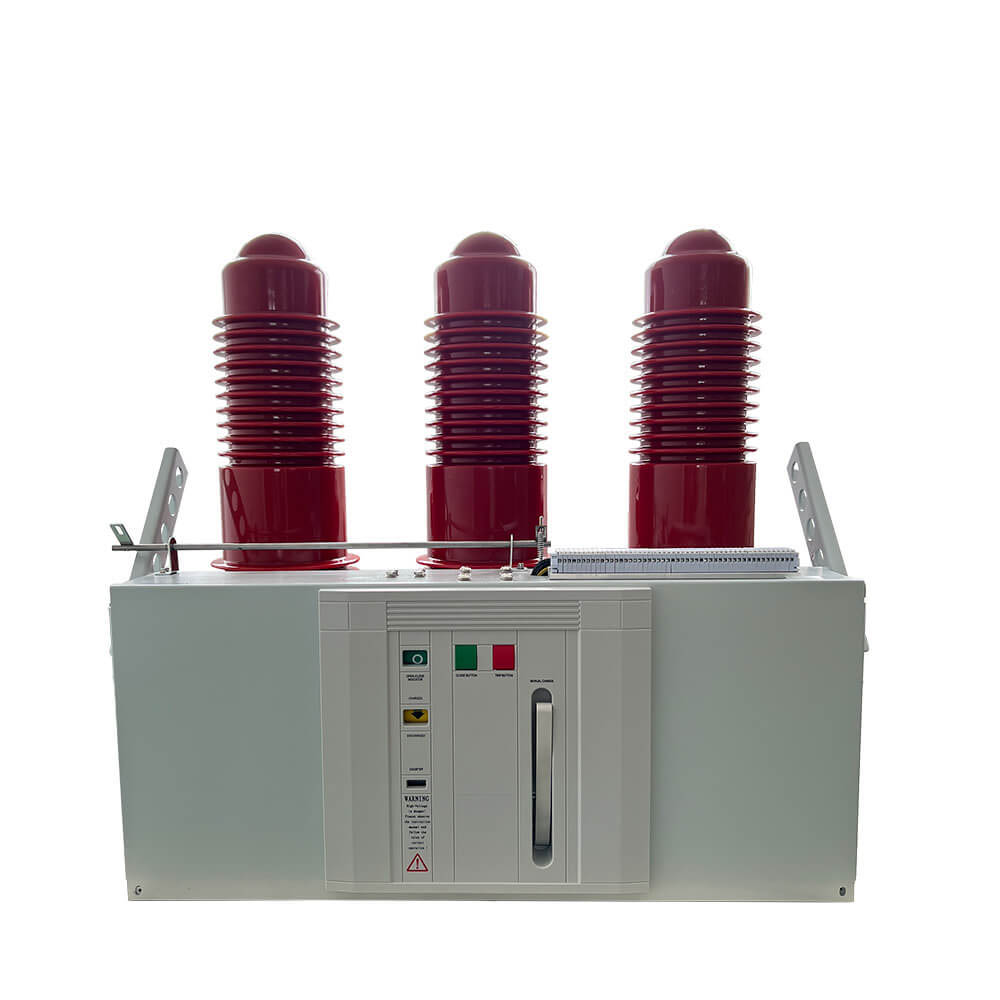

36kV 40.5kV Auto Recloser Medium Voltage Front Mounted VCB Vacuum Circuit Breakers

There are two kinds of operating mechanism: spring-operated mechanism and permanent magnetic operating mechanism.

The conductive circuit is divided into insulated cylinder form (vacuum interrupter is installed in the insulated cylinder) and sealed pole form (vacuum interrupter is installed in the epoxy resin).

Product Features:

Rated Voltage: 126kV

Rated Current: 2500A/3150A

Rated Frequency: 50Hz

Rated Short Circuit Breaking Current: 31.5kV/40kV

Rated Short Circuit Making Current (peak): 80kV/100kV

Rated Short Time Withstand Voltage: 31.5kV/40kV

Rated Short Circuit Standing Time: 4s

Operation Altitude: <3000m

Advantages:

Custom IEC Outdoor HV SF6 Circuit Breaker LW35-126 can be customized to fit your specific application requirements while reducing maintenance costs and improving reliability.

Highly Customizable：Gear is configured to meet any system or application need.

Low Maintenance：Switches and fuses never need adjusting, programming, or dielectric testing.

Resilient Design：Utility-grade design withstands time and the elements.

Hassle-Free Installation：Preassembled and simpler construction requirements.

Lower Total Cost of Ownership：Lower up-front and maintenance costs than metal-clad switchgear.

Improved Reliability：Fuses offer faster fuse-clearing time and reduce system stress compared to circuit breakers.

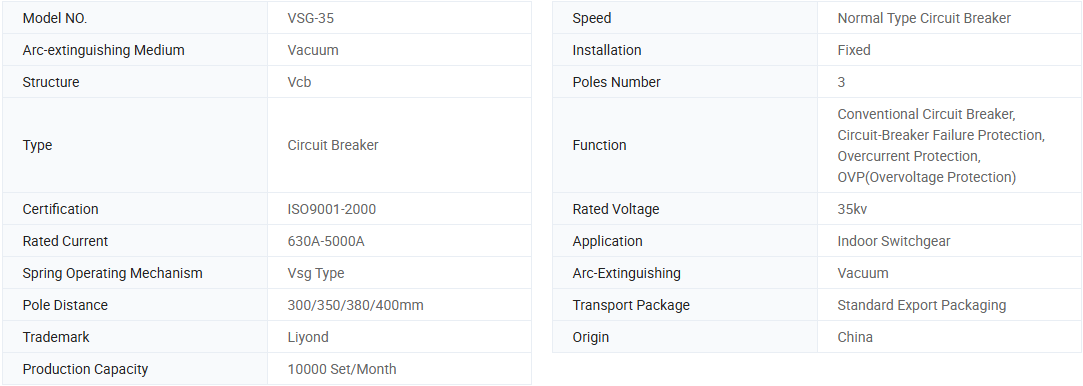

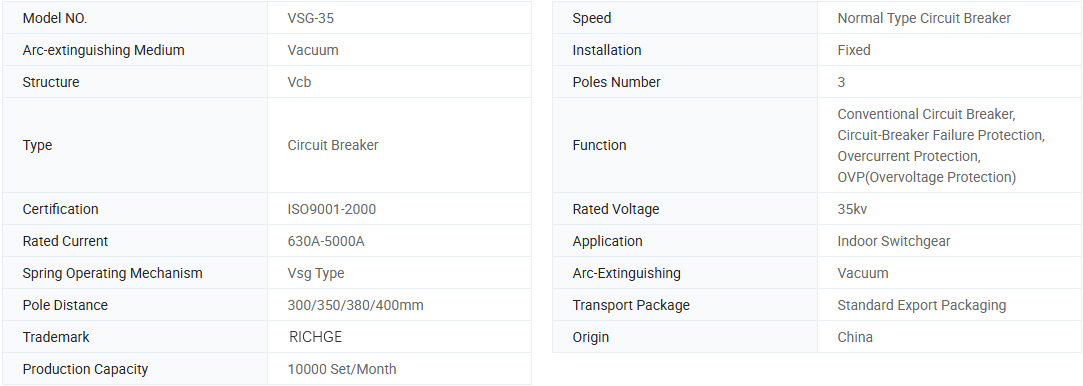

Basic Info.

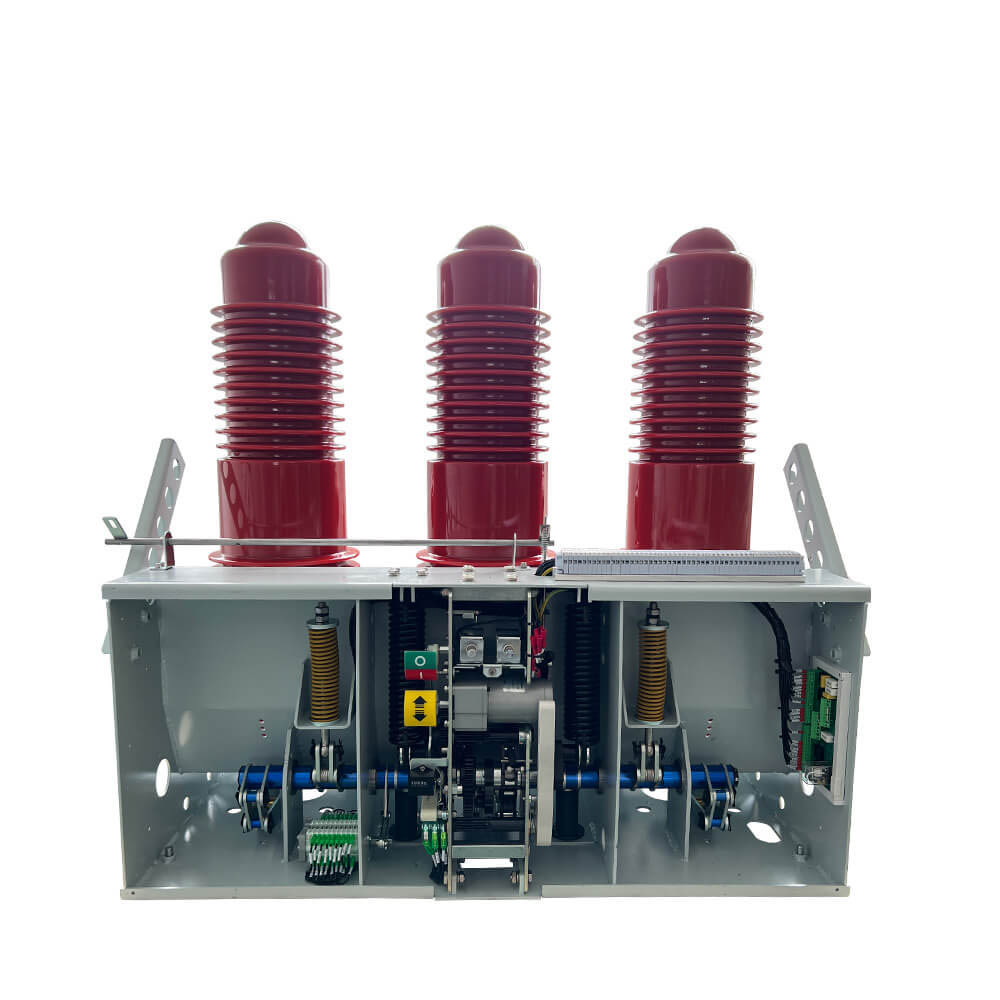

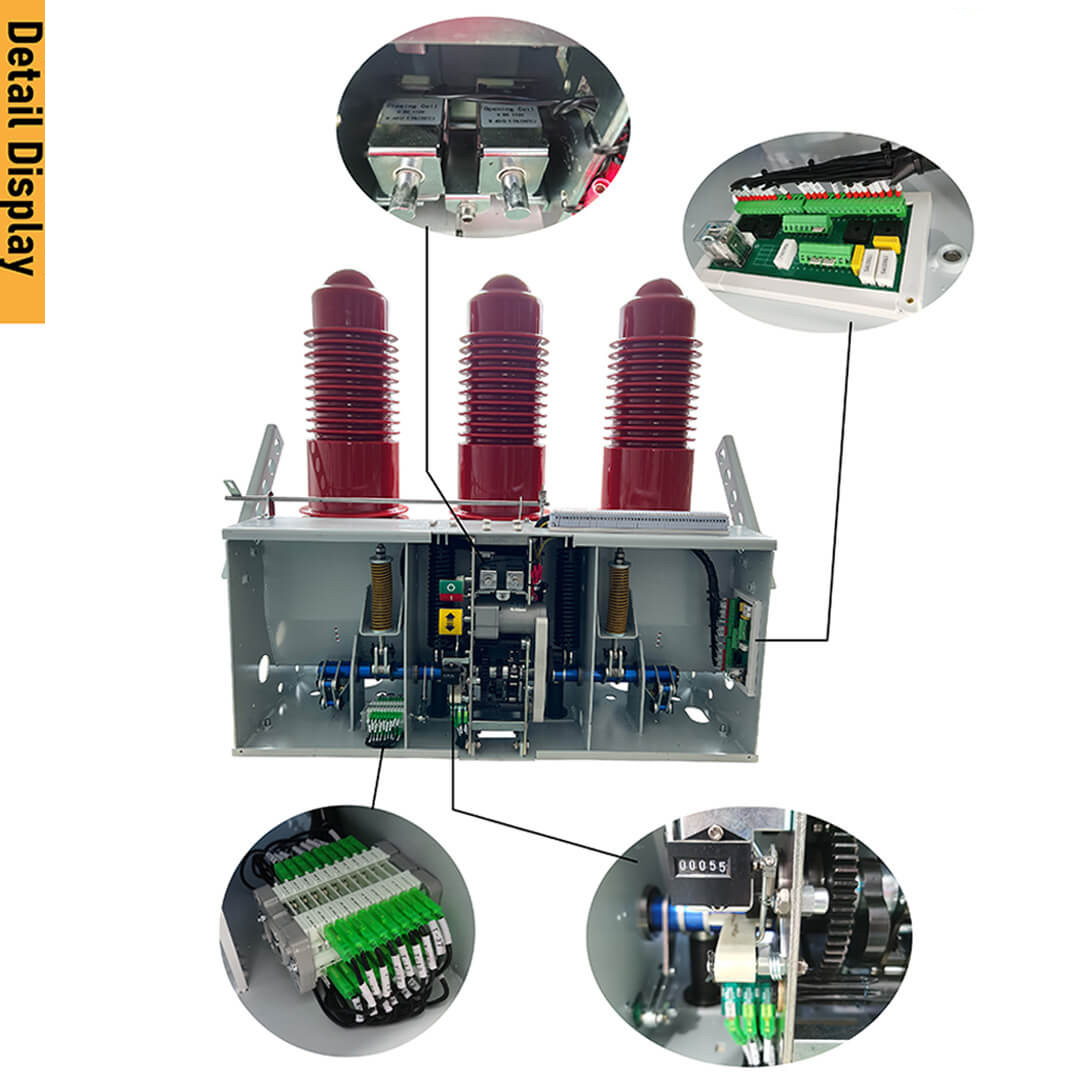

Detail Display

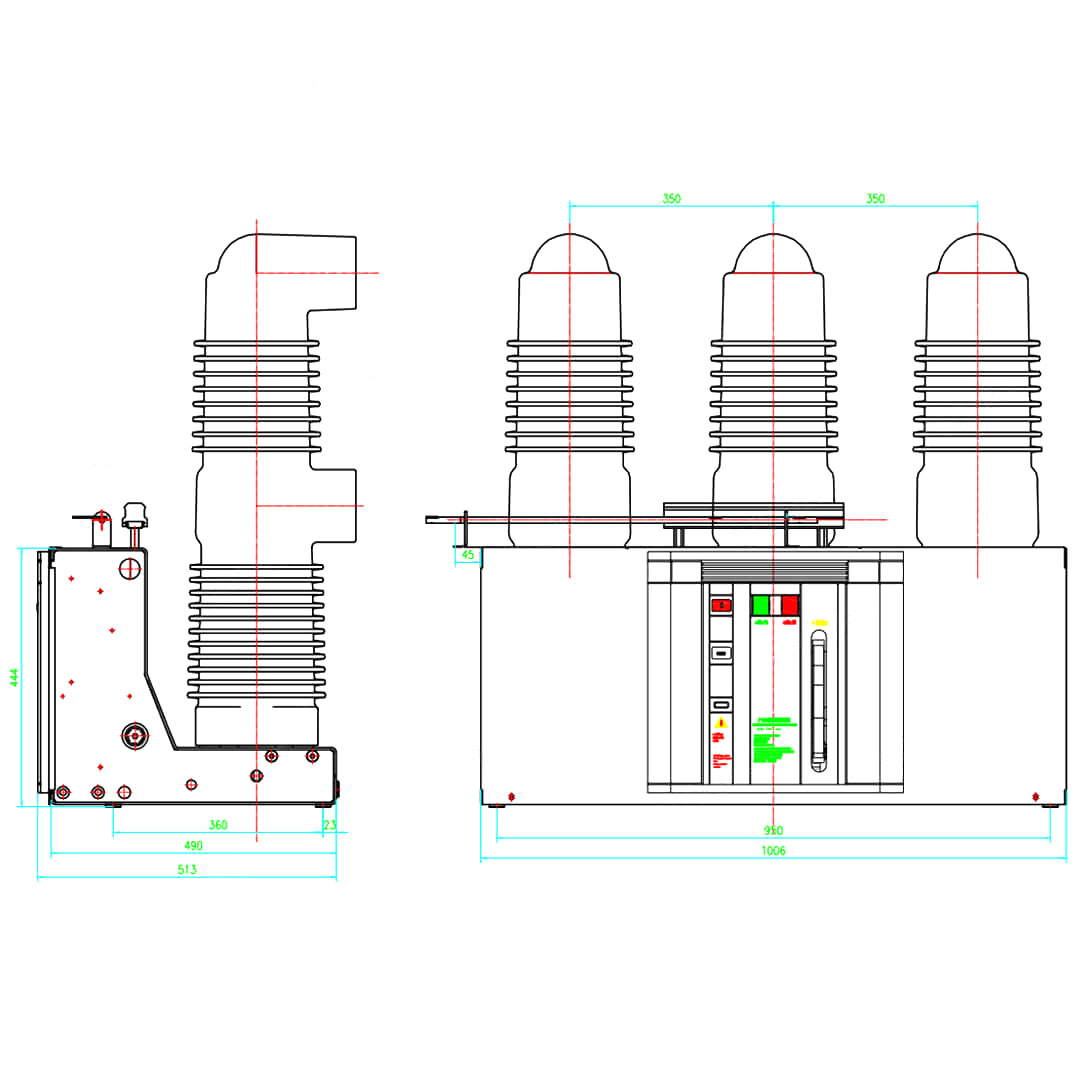

Dimensional drawing:

Environmental conditions

1. The ambient air temperature does not exceed 40℃, and the average value measured within 24h does not exceed 35℃.

2. The minimum ambient air temperature is -5℃ for the “-5 indoor” level, -15℃ for the “-15 indoor” level and -25℃ for the “-25 indoor” level. 15℃, and -25℃ for the “-25 house” level.

3. The effect of sunlight radiation can be ignored.

4. The altitude does not exceed 1000m.

5. The surrounding air is not significantly contaminated by dust, smoke, corrosive and/or flammable gases, vapors or salt spray.

FAQ

Q:what's your major products?

A: oil immersed transformer, dry type transformer, Transformer Substation, High and Low Voltage Switchgear

Q: Can your product be customized?

A: Considering differences in voltage, frequency and other special transformer product in different countries and regions, our product can be customized according to your requirements.

Q: When can I get the price?

A:Usually we quote within 24 hours after we get your inquiry.

Q: What about lead or shipping time?

A: The lead time depends on the quantity you ordered, generally within 15 days upon receipt of advance payment.

Q: What is the price of shipping?

A: Depending upon the port of delivery, prices varies.

Q: Do you offer guarantee for the products?

A: Yes. We offer at least one years guarantee for all of our transformers.

Q: Your Advantage?

A: 15 years experience, Advanced production equipment, Stable quality, Fast delivery, Professional & good & Prompt service. Also some free parts can be provided for you.

Ordering Instructions:

The following technical information should be provided when placing an order: Main wiring scheme number, purpose and single line system diagram, rated voltage and rated current rated short-circuit breaking current/distribution room layout plan and arrangement and configuration diagram of switchgear;

Requirements for control measurement and protection functions of switchgear, as well as requirements and schematic diagrams for other interlocking and automatic devices;

The models specifications and quantities of the main electrical components inside the switchgear;

When the switchgear is used in special environmental conditions; detailed instructions should be provided when placing an order;
