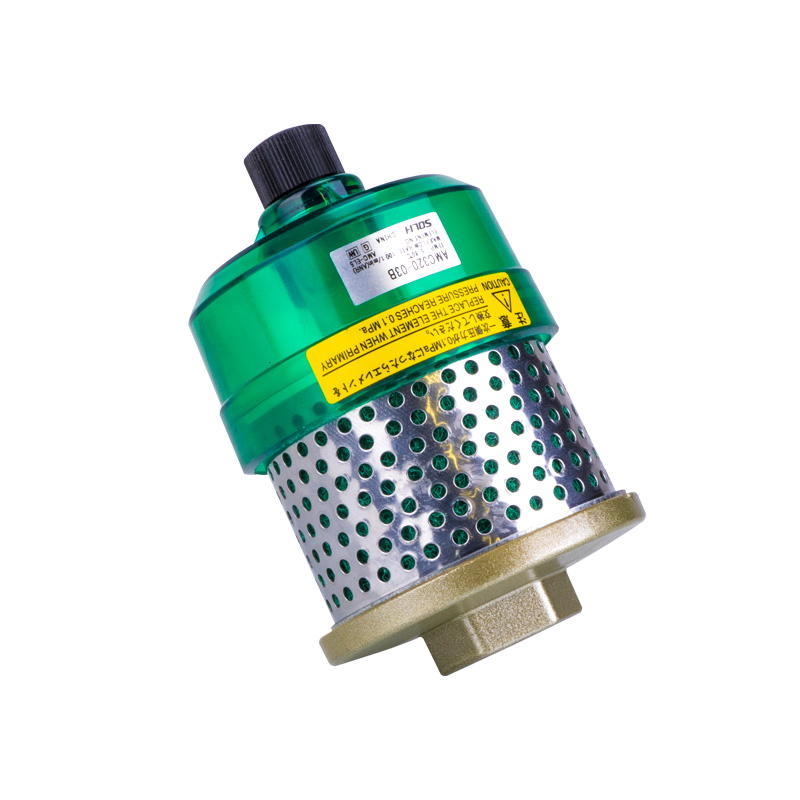

AMC Series Exhaust Cleaner

SOLH AMC Series Exhaust Cleaner | Oil Mist Separator & Silencer 2-in-1

Brand: SOLH by Richge Technology | SMC AMC Equivalent Exhaust Cleaner, Oil Mist Removal + Noise Reduction Integrated

1. Product Overview

     SOLH AMC series exhaust cleaner, also known as exhaust oil remover or silencing cleaner, integrates oil mist separation and noise suppression in one unit. It captures oil mist and fine dust carried in exhaust air from pneumatic systems while drastically cutting exhaust noise. It solves two common workshop issues: oil mist splashing and noise pollution. It is an upgraded alternative to standard silencers fitted at the exhaust port of solenoid valves and air cylinders.

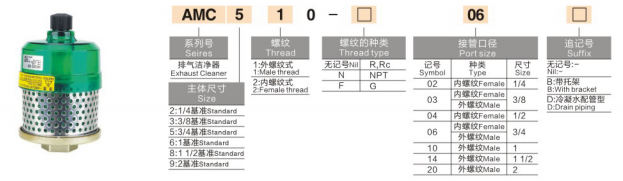

2. Model Naming Code

  AMC + Size Code + Thread Form + Thread Type - Port Size + Suffix Option

3. Size & Flow Reference + Typical Model Explanation

  Note: The body size is the benchmark specification; the actual connection thread size is defined by the 5th code, which can be identical or reduced for adapter use.
  Example 1: AMC510-06: Body reference 34", actual male thread port 3/4"
  Example 2: AMC320-02: Body reference 38", actual female thread port 1/4" (reduced port)

  Suffix options:
     B Equipped with mounting bracket for fixing onto machine frames, mainly for large-size AMC
     D Drain piping version with bottom oil/water outlet port for centralized oil recovery, ideal for heavy oil mist conditions

4. Key Specifications & Working Principle

  Working Principle

      Exhaust air from pneumatic components enters the AMC. Large oil droplets are separated by centrifugal guide structure, thrown onto inner housing wall and drained down to the oil sump.

      Airflow passes through composite glass fiber + activated carbon element to capture fine oil mist and particles ≥0.3μm.

      Air passes through integrated silencing structure before discharge, completing oil removal + noise reduction in one step.

      Built-in oil cup collects separated oil for periodic draining to avoid secondary contamination.

5. AMC vs Standard AN Silencer Comparison

6. Selection Guide & Maintenance Instructions

  Quick Selection Steps

      Confirm exhaust flow: Select AMC rated flow ≥ maximum exhaust flow of solenoid valve / cylinder

      Match thread port size to the exhaust port of pneumatic component

      Application tuning: Standard version for general workshop; AMC520 or larger preferred for food & electronics clean rooms with zero oil mist tolerance

  Maintenance & Replacement

      Filter replacement cycle: 3~6 months under normal duty; inspect monthly for heavy oil mist conditions

      Drain accumulated oil regularly from bottom drain cock to avoid oil backflow and element clogging

      Significant exhaust backpressure rise or slow cylinder action indicates clogged element; replace immediately

7. Domestic Replacement Statement

     SOLH AMC series exhaust cleaner follows SMC AMC naming convention, interface dimensions and performance parameters. Filter elements are interchangeable. It provides reliable cost-down solution for automation machines and export equipment projects.
