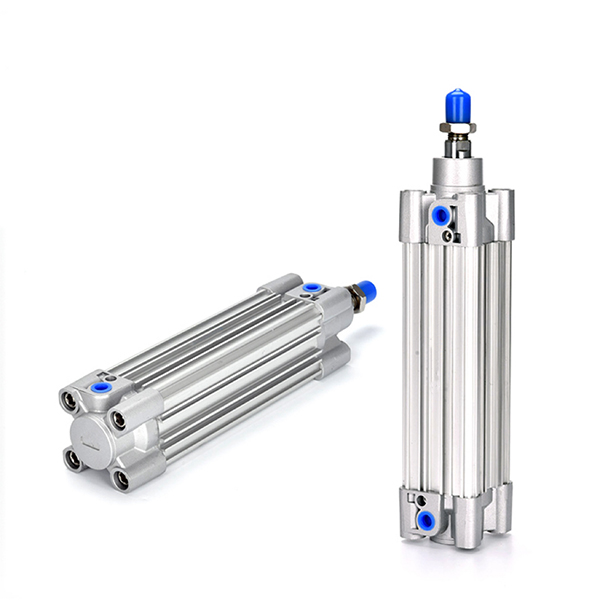

CP96S Series ISO15552 Standard Pneumatic Cylinder (Dual Heavy-Duty Cushion)

Brand: SOLH by Richge Technology

Product Overview

     SOLH CP96S series tie rod cylinder complies with ISO15552 / VDMA24562 international standard. Adopts aluminum profile barrel equipped with dual cushion system (adjustable air cushion + rubber buffer pad). Features low noise, high rigidity, suitable for high-speed, high-frequency reciprocating and long-stroke heavy-duty automation applications. Direct mechanical interchange with original CP96S series.

Core Structure & Design Features

   1. Structure: Profile barrel with built-in tie rods, 15% lighter than traditional tie rod cylinders. Dual cushion greatly absorbs end impact and reduces operation noise.

   2. Material: Hard anodized aluminum barrel, high-strength end caps, hard chrome plated piston rod. Wear-resistant and long service life.

   3. Operation Variants

     -- CP96S: Single rod double acting standard model

     -- CP96SD (suffix W): Double rod double acting, excellent anti-torsion performance

     -- Suffix -S: Built-in magnetic ring for magnetic switch

   4. Cushion System: Air cushion + rubber composite buffer, perfect for 50~1000mm/s high-speed cycling.

   5. High Rigidity: Precision machined end caps, small piston rod deflection, strong offset load resistance.

   6. Sensor Groove: Reserved slots for M9B, A93 series magnetic switches.

   7. Interchangeability: ISO15552 standard dimension, compatible with SE, SAI, DNC series accessories.

Complete Model Coding Rule

   1. Model Example：CP96SB40-100W-S

   2. Standard Order Examples

     -- CP96SB50-200-S: Bore50, stroke200, single rod, basic type with magnet

     -- CP96SF63-150W: Bore63, stroke150, double rod, rod side flange mount

Core Technical Specifications

Theoretical Thrust & Pull Force @0.5MPa (Single Rod, Unit:N)

Mounting Types & Derivative Models

   1. Mounting Options

     -- Basic, foot mount, front/rear flange, single/double clevis.

   2. Main Derivative Series

     -- CP96S / CP96SD: Single rod & double rod model

     -- CP96SK: High temperature customized cylinder

     -- CP96SR: Stainless steel piston rod for light corrosion environment

3-Step Fast Selection Guide

   1. Bore selection: Calculate required thrust, reserve ≥50% safety margin; prioritize CP96S for high speed & low noise demand.

   2. Stroke confirmation: Add 10~20mm safety margin; max standard stroke 800mm, customized up to 2000mm.

   3. Configuration matching

     -- Position feedback: Choose -S magnet model with M9B/A93 magnetic switches;

     -- Mounting: L foot mount for horizontal heavy load; F flange for vertical installation;

     -- Special environment: Select CP96SK for high temperature, CP96SR for corrosive condition.

One Sentence Summary

     SOLH CP96S ISO15552 tie rod cylinder equipped with dual air & rubber cushion, high speed low noise, strong anti-offset load capacity, ideal heavy-duty linear actuator for high-frequency export automation equipment.
