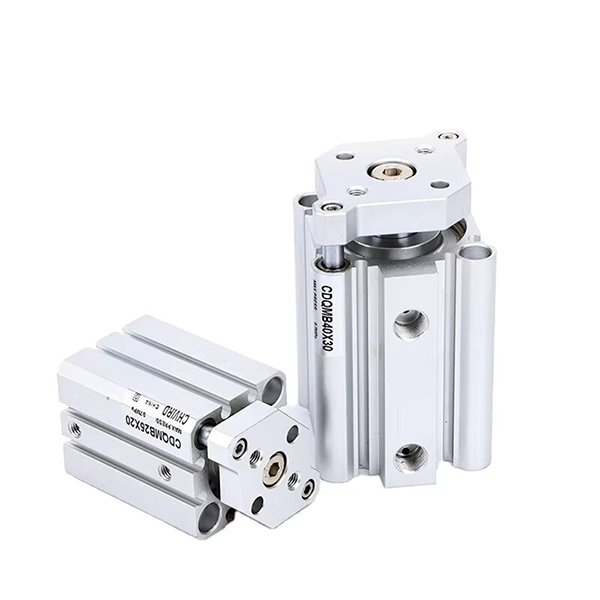

CQM Series Guided Thin Pneumatic Cylinder

Brand: SOLH by Richge Technology

Product Overview

     SOLH CQM series high rigidity guided thin cylinder, interchangeable with imported CQM/CDQM. Built-in double guide rod based on CQ2 thin cylinder structure. Greatly improves lateral load resistance and anti-rotation performance. Same body length as CQ2, no extra external guide needed. Mounting size compatible with CQ2/CQS, widely used for precision positioning, clamping and pushing with side load.

Structure & Main Features

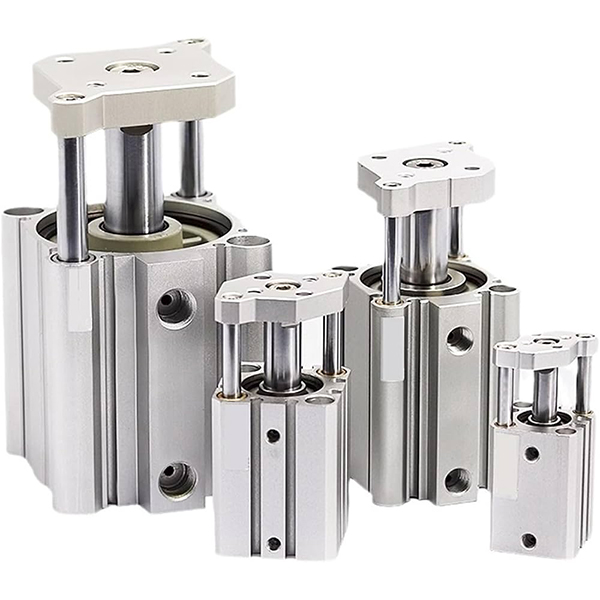

     -- Integrated thin cylinder body + parallel double guide rods, load mounting plate on front end;

     -- Hard anodized aluminum barrel, chrome plated piston rod & guide rods;

     -- Variants: CQM(non-magnetic), CDQM(magnet equipped), CQM-XB24 long life version;

     -- Lateral load capacity 2~4 times higher than standard CQ2 cylinder, rotation tolerance ≤±0.2°;

     -- Standard rubber buffer on both ends, no air cushion option;

     -- CDQM built-in magnet for magnetic switch detection, flexible sensor installation.

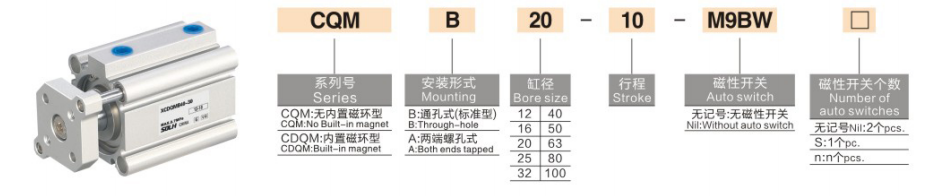

Model Coding Rule

   1. Example: CDQMB20-50-M9B

     -- C: Built-in magnet (CDQM); blank = non-magnetic (CQM)

     -- DQM: Series code for guided thin cylinder

     -- B/A: Mounting type; B=through hole; A=end tapped hole

     -- 20: Bore size:12/16/20/25/32/40/50/63/80/100 mm

     -- 50: Stroke length 5~100mm

     -- M9B: Magnetic switch option

Technical Specifications

Theoretical Thrust & Pull Force & Max Lateral Load @0.5MPa

One Sentence Summary

     SOLH CQM series integrated double guide rod thin pneumatic cylinder with excellent anti-twist and high lateral load capacity, perfect precision actuator to replace standard CQ2 cylinder for automation clamping and positioning applications.
