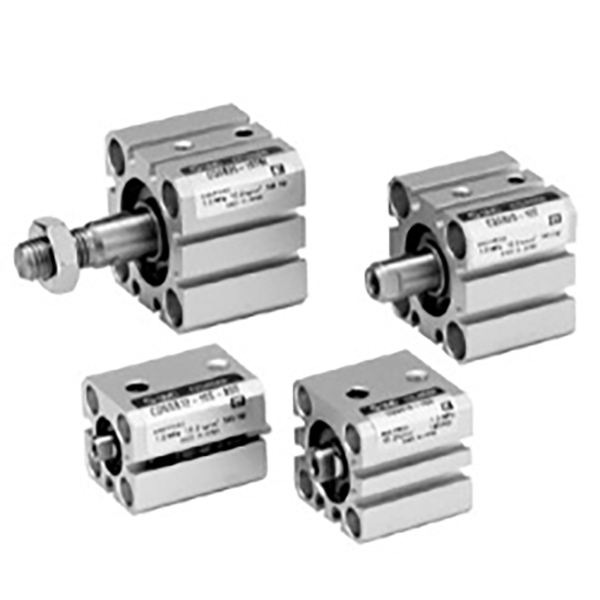

CQS Series Compact Thin Cylinder

Brand: SOLH by Richge Technology

Product Overview

     SOLH CQS series thin compact cylinder is interchangeable with SMC CQS series. Designed for limited installation space and high-precision short-stroke applications. Square ultra-slim body, bore size φ12~25mm, upgraded high precision version based on CQ2 series. Widely used in semiconductor, 3C electronics and precision automation fixtures for clamping, pushing and positioning.

Structure & Main Features

     -- Square ultra-thin body, shorter overall length than CQ2 model;

     -- Hard anodized aluminum barrel, chrome plated piston rod, high rigidity;

     -- Complete variants: standard single rod, twin rod, non-rotating rod, long-life XB24 version;

     -- CDQS built-in magnet for position sensor detection; multi-side sensor slots, sensor does not protrude outside cylinder;

     -- Fixed rubber cushion on both ends, no air cushion;

     -- Low friction seal with oil reservoir, oil-free operation, service life ≥5 million cycles.

Model Coding Rule

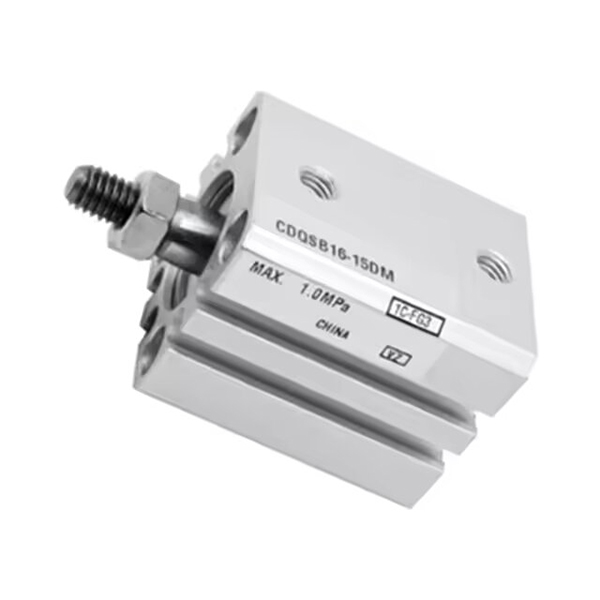

   1. Example: CDQSB20-50D-M9BW

     -- C: Built-in magnet (CDQS); no C = non-magnetic CQS

     -- DQS: Series name

     -- B=single rod; W=twin rod; K=non-rotating rod; KW=twin anti-rotation rod

     -- 20: Bore size 12/16/20/25 mm

     -- 50: Stroke length 5~300mm

     -- D: New standard structure

     -- M9BW: Magnetic switch option

Technical Specifications

Theoretical Thrust & Pull Force @0.5MPa

One Sentence Summary

     SOLH CQS ultra-compact thin pneumatic cylinder with multiple structural variants, high rigidity and short body, ideal high-precision short-stroke actuator for limited-space 3C and semiconductor automation equipment.
