Brand: SOLH by Richge Technology

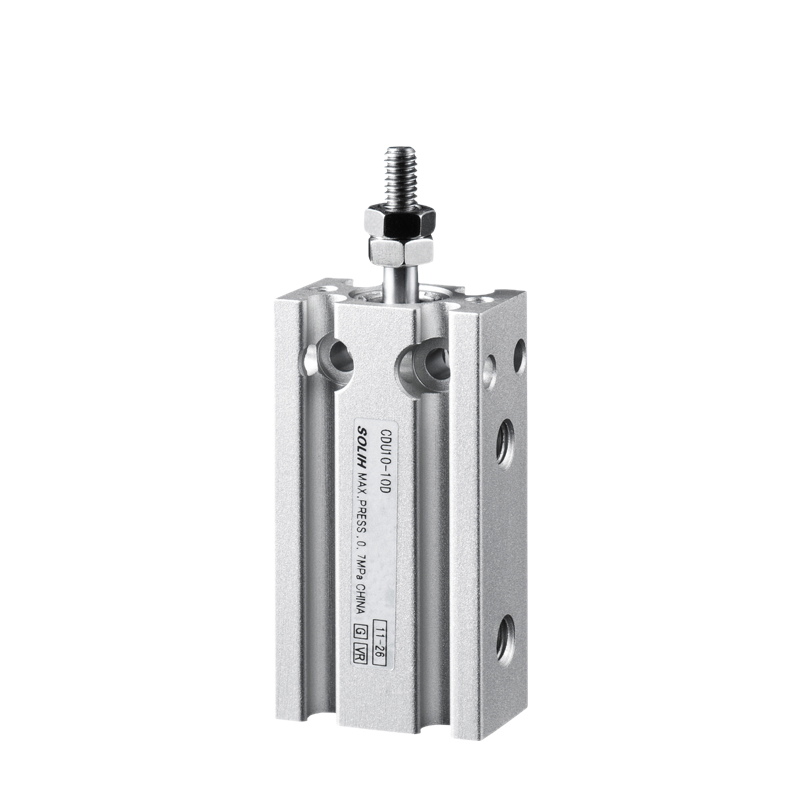

SOLH CU/CDU series rectangular block free mount cylinder. Multi-surface mounting holes enable direct installation in any orientation without brackets. Ultra-thin compact design widely used for light-load pushing, clamping and positioning in automation equipment with limited installation space.
|
Model |
Feature |
Application |
|
CU |
Without magnet ring, cannot fit magnetic switches |
Cost-sensitive projects without position feedback |
|
CDU |
Built-in magnet, support CMSH/DMSH magnetic sensors |
Need extend/retract position detection |
|
CUK/CDUK |
Non-rotating piston rod |
Workpiece angle must be fixed, prevent shaft rotation |
|
CUW/CDUW |
Twin piston rod, integrated guide, anti-torsion |
Applications with side load & offset force |
-- Multi-direction mounting: Install from bottom, side or end face, save mounting bracket;
-- Slim rectangular body, 40% thinner than standard tie rod cylinder;
-- Multiple structures: standard single rod, anti-rotation rod, double guided rod;
-- Built-in magnet version (CDU) with adjustable sensor slots;
-- Self-lubricating bearing, oil-free continuous operation;
-- Fixed rubber buffer pads to reduce impact and noise.

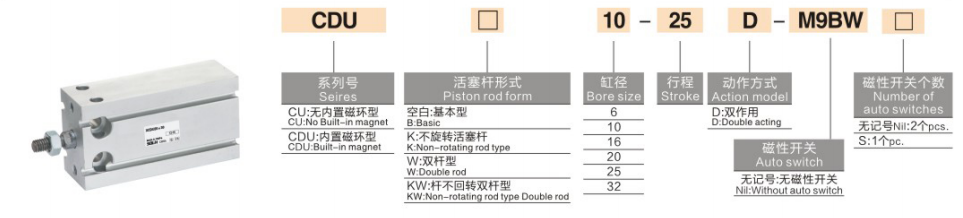

1. Example：CDU16×30S
-- CDU: Series name, C=built-in magnet; K=non-rotating rod; W=double rod
-- 16: Bore size (mm):6,10,16,20,25,32
-- 30: Stroke length (mm)
-- S: Standard specification
|
Parameter |
Specification |
|
Bore Size |
6,10,16,20,25,32 mm |
|
Standard Stroke |
5~60mm |
|
Acting Type |
Double acting (default); single acting spring return/out extend |
|
Operating Pressure |
Double acting:0.05~0.7MPa; Single acting:0.15~0.7MPa |
|
Proof Pressure |
1.05 MPa |
|
Temperature |
-10~60℃(no ice in air) |
|
Piston Speed |
50~500 mm/s |
|
Cushion |
Fixed rubber buffer on both ends |
|
Port Thread |
M5×0.8 (φ6/10); PT1/8 (φ16~32) |
|
Lubrication |
Oil-free operation |
|
Bore (mm) |
Thrust/Pull Area |
0.2MPa |
0.4MPa |
0.6MPa |
0.7MPa |
|
6 |
28.3 / 25.4 |
5.7 / 5.1 |
11.3 / 10.2 |
17.0 / 15.2 |
19.8 / 17.8 |
|
10 |
78.5 / 70.7 |
15.7 / 14.1 |
31.4 / 28.3 |
47.1 / 42.4 |
54.9 / 49.5 |
|
16 |
201.1 / 181.0 |
40.2 / 36.2 |
80.4 / 72.4 |
120.7 / 108.6 |
140.8 / 126.7 |
|
20 |
314.2 / 282.7 |
62.8 / 56.5 |
125.7 / 113.1 |
188.5 / 169.6 |
219.9 / 197.9 |
|
25 |
490.9 / 452.4 |
98.2 / 90.5 |
196.4 / 181.0 |
294.5 / 271.4 |
343.6 / 316.7 |
|
32 |
804.2 / 754.8 |
160.8 / 151.0 |
321.7 / 301.9 |
482.5 / 452.9 |
562.9 / 528.4 |
-- 3C & semiconductor micro jig, stopper, press fitting;
-- General automation clamping, positioning and material switching;
-- Home appliance & hardware assembly; packaging light load sorting equipment.
SOLH CU/CDU rectangular free mount pneumatic cylinder supports multi-angle bracketless installation, with non-rotating and double guided rod variants, widely used for short-stroke light-duty automation positioning and clamping.
