CY1 Series Magnetic Coupling Rodless Cylinder | Classic Economic Base Model

Brand: SOLH by Richge Technology

CY1S
CY1L

Product Overview

     The SOLH CY1 series is a classic and economical magnetic coupling rodless cylinder, serving as the foundational predecessor of the upgraded CY3 series. It adopts a non-contact magnetic synchronous driving structure, where the internal piston and external slide table move simultaneously through strong magnetic force. Featuring fully enclosed zero-leakage operation, compact structure and cost-effective performance, it is dedicated to light-to-medium load and medium-long stroke linear driving applications. With a bore range from φ6 to φ63mm, a standard stroke up to 1000mm and a maximum extended stroke of 1500mm, this series covers diversified guiding models to meet multi-scenario demands, making it the preferred budget-friendly clean-grade rodless actuator for general automated production lines.

Core Positioning & Structural Features

• Magnetic Coupling Drive & Clean Zero-Leakage Performance: Built-in high-strength permanent magnets on the piston and slide table realize non-mechanical synchronous transmission. The fully enclosed cylinder barrel eliminates air leakage and dust emission, completely adapting to strict clean working environments in electronics, medical equipment and food processing industries.

• Classic Base Structure & High Cost Performance: Adopting a minimalist mechanical structure with fewer components, the CY1 series effectively reduces manufacturing costs and offers higher cost competitiveness than the upgraded CY3 series. The basic CY1B model has no integrated mounting surface and requires dual-end support brackets for installation. Equipped with basic wear-resistant ring and dustproof ring configuration, it features a minimum working pressure of 0.18MPa, with a slightly shorter service life but fully competent for conventional standard working conditions.

• Diversified Derivative Models for Full Coverage: The complete product lineup covers multiple guiding types to match different precision and load demands:

• CY1B: Basic type without guiding structure and mounting surface, requiring external guide rails and dual-end brackets.

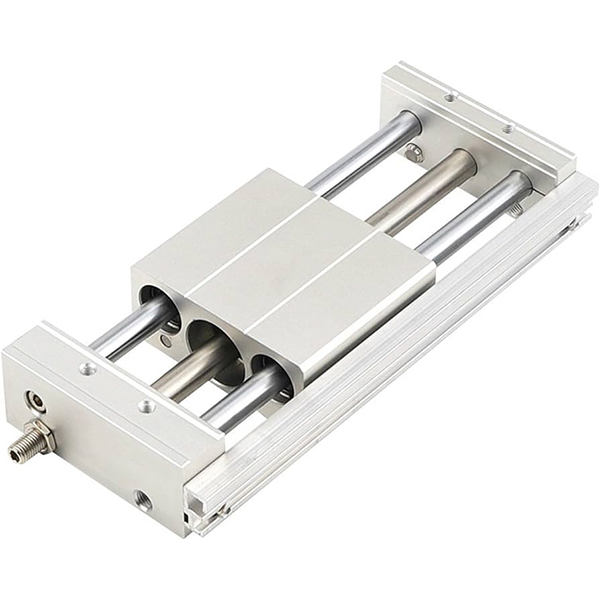

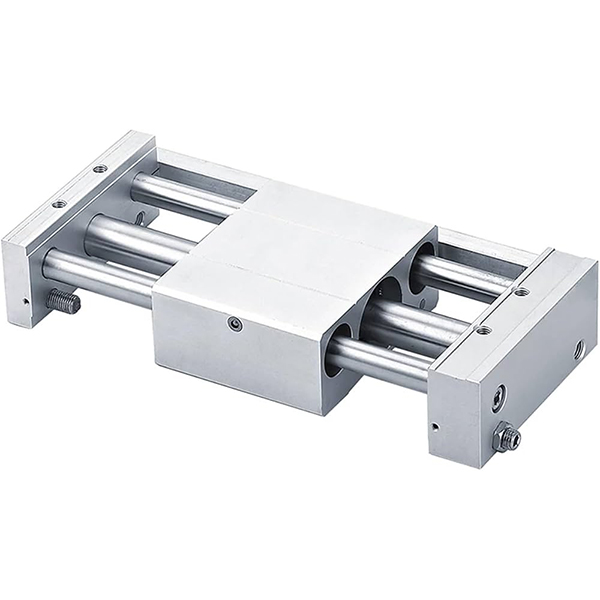

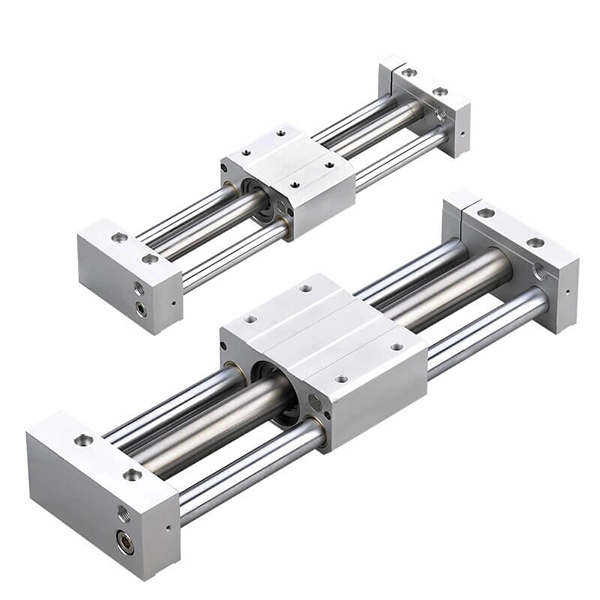

• CY1S: Slide guide type with built-in sliding bearing, supporting light-load operation without external guides.

• CY1L: Ball bearing guide type with ultra-smooth sliding and enhanced load capacity for stable high-frequency movement.

• CY1H: High-precision guiding type with excellent repeat positioning accuracy for precision transfer scenarios.

• CY1F: Low-profile thin type with 29% reduced overall height, perfectly suited for ultra-compact equipment installation spaces.


• Standard Buffer & Optional High-Speed Configuration: Standard dual-end rubber buffers effectively absorb operating impact and reduce running noise. Optional external hydraulic buffers support stable operation at a maximum speed of 500mm/s for medium-high speed cyclic working conditions.

• Wide Compatibility of Magnetic Switches: Reserved universal switch grooves on the cylinder body are compatible with D-M9 series and D-A9 series magnetic switches, allowing arbitrary position installation and flexible stroke signal feedback.

Complete Model Coding Rule

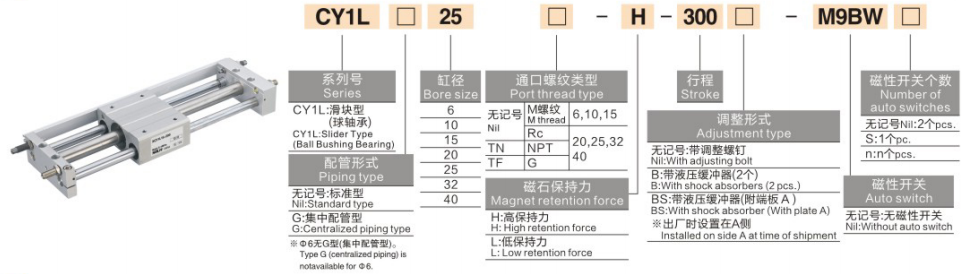

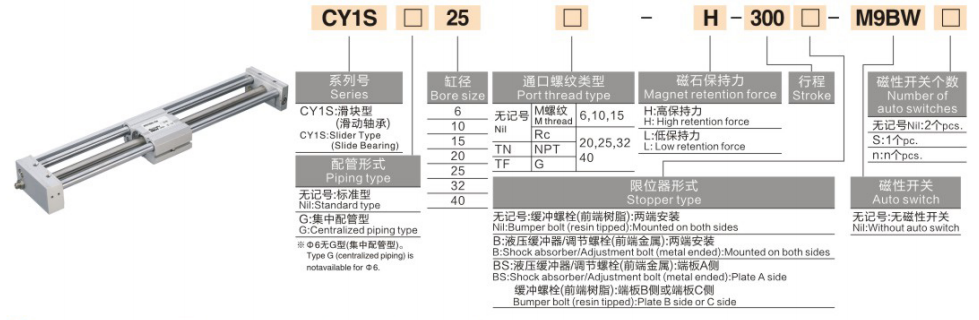

Model Examples: CY1B20-500 | CY1S40-800-M9PL

Standard Order Reference Examples

• CY1B20-500: 20mm bore, 500mm stroke, basic type without magnetic switch

• CY1S40-800-M9PL: 40mm bore, 800mm stroke, slide guide type with magnetic position switch

Core Technical Specifications (20℃ Standard Condition)

1. Basic General Specifications

• Operation Mode: Double-acting magnetic coupling non-contact synchronous transmission

• Working Fluid: Compressed air (oil-free operation standard)

• Ambient Temperature: 5~60℃ (no freezing working environment)

• Working Pressure Range: 0.18~0.7MPa; Proof Pressure: 1.05MPa

• Standard Operating Speed: 50~500mm/s

• Buffer Mode: Standard dual-end rubber buffer; optional external hydraulic buffer for high-speed scenarios

• Magnetic Holding Force: 49~2450N (increases progressively with bore size)

2. Key Performance Parameter Chart (@0.5MPa)

Core Configuration & Selection Guidelines

1. Bore Size Selection by Load & Thrust

• φ6~φ15 (Micro Light Duty): Suitable for loads ≤2.5kg, dedicated to short-stroke precision component transfer in miniature electronic precision equipment.

• φ20~φ32 (General Light Duty): Matched with 4~10kg light load, ideal for conventional long-stroke pushing and pulling operations (≤1000mm) in general automated production lines.

• φ40~φ63 (Medium Duty): Applicable for 16~40kg medium load scenarios, perfectly adapted to long-stroke handling and high-frequency cyclic working conditions in packaging and logistics automation equipment.

2. Model & Guiding System Selection

• CY1B Basic Type: The most cost-effective model with no built-in guiding structure. External linear guide rails are mandatory, suitable for budget-sensitive projects and equipment with reserved guiding structures.

• CY1S Slide Guide Type: Equipped with built-in sliding bearing guide, requiring no external auxiliary guides for light loads (≤10kg), featuring simple installation and wide universality.

• CY1L Ball Bearing Guide Type: Adopts high-precision ball bearing structure with ultra-low sliding resistance and extended service life, specially designed for high-speed and high-frequency cyclic working conditions.

• CY1H High-Precision Type: Configured with precision linear guiding mechanism, achieving repeat positioning accuracy up to ±0.02mm, applicable for high-precision positioning and micro-distance transfer scenarios.

• CY1F Low-Profile Type: Optimized thin structure with 29% reduced overall height, solving the problem of limited vertical installation space for compact automated equipment.

3. Environment & Functional Configuration Selection

• Clean Environment Adaptation: Zero-leakage and dust-free non-contact magnetic transmission design meets hygienic production standards; CY1S and CY1L models are preferred for long-term clean room operation.

• High-Speed Working Condition Upgrade: Equip with external hydraulic buffers to eliminate end impact, stably supporting continuous operation speed up to 500mm/s.

• Precision Position Feedback: Match with D-M9 series or D-A9 series magnetic switches to realize multi-point stroke positioning and real-time signal output.

Typical Industrial Application Scenarios

• Clean Room Material Transfer: Zero-pollution magnetic coupling structure is widely used for long-distance material handling in semiconductor and LCD dust-free workshops, avoiding secondary contamination of clean working environments.

• Packaging Line Workpiece Displacement: High cost-performance design adapts to long-stroke pushing and pulling of light and medium-duty workpieces in food and pharmaceutical packaging equipment, with low failure rate and simple daily maintenance.

• Automated Equipment Door Control: Rodless compact structure saves external installation space, suitable for long-stroke opening and closing driving of equipment protective doors and dust shields.

• Long-Stroke Assembly Line Positioning: Cooperates with matching guiding modules to achieve stable precision positioning within 1~1.5m ultra-long stroke, meeting continuous cyclic positioning demands of production lines.

• Economic Alternative Solution: An ideal cost-down replacement for high-priced CY3 series in budget-limited automation projects, fully satisfying basic long-stroke linear driving requirements.

CY1 vs CY3 Series Core Performance Comparison

Three-Step Quick Selection Guide

1. Bore Size Confirmation: Calculate required thrust based on load weight with a safety factor ≥2. Recommended rules: ≤2.5kg → φ15; 4~10kg → φ32; 16~40kg → φ63.

2. Model Type Confirmation: Choose CY1B for ultra-low budget; CY1S for light-load guide-free installation; CY1L for high-speed high-frequency operation; CY1H for high-precision positioning demands.

3. Stroke Specification Confirmation: Select standard 50~1000mm stroke for conventional use; optional extended stroke up to 1500mm for medium-long distance driving demands.

One Sentence Summary

     SOLH CY1 series classic magnetic coupling rodless cylinder is an economic zero-leakage clean actuator with diversified guiding models, serving as the budget-friendly basic long-stroke linear driving solution for light-medium load general automation and clean room equipment.
