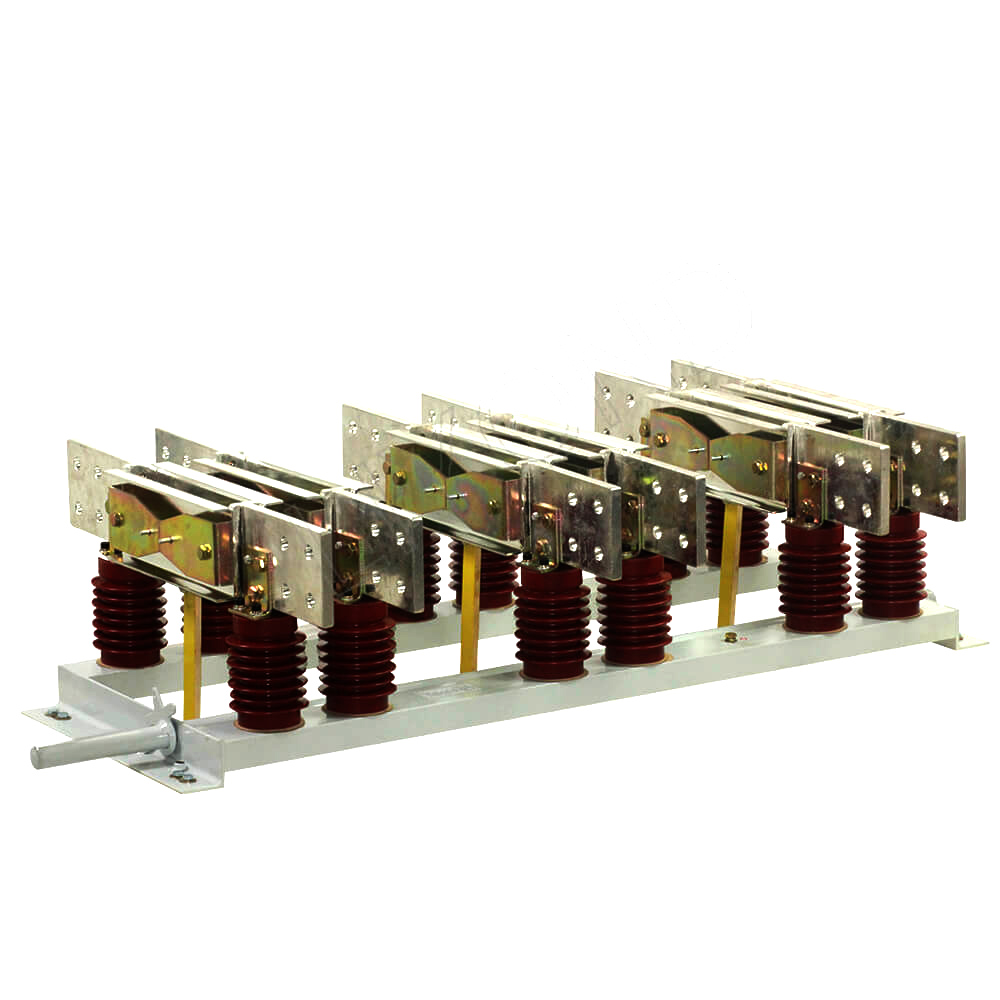

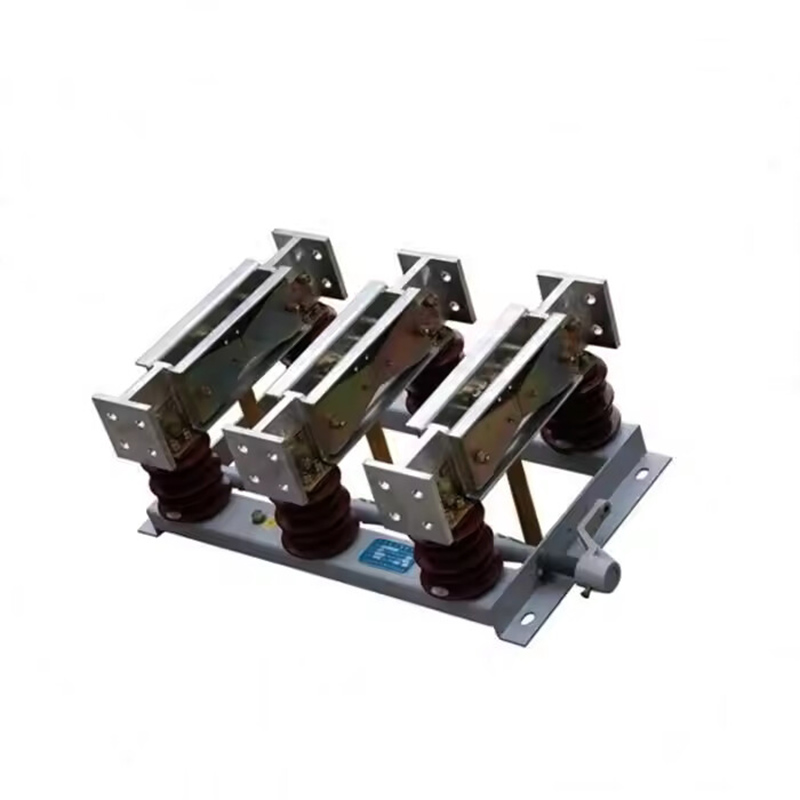

GN22-12 Three-phase Isolating Switch 6300A High Current Indoor High Voltage

    GN22-12 (C) (D) series indoor high-voltage disconnector high-voltage switchgear is used in power systems with rated voltage of 12kV, 50Hz and below, to connect, disconnect or convert lines under voltage but no load.

Matching mechanism: Equipped with CS6-1, CS6-2 and other manual operating mechanisms, and electric operating mechanisms can also be used.

   This series of switches are operated by CS6-2 manual operating mechanism or electric operating mechanism, and can be installed on the left or right side of the disconnector.

Structural features

This product is a high-current isolating switch with a three-phase common bottom knife structure. It adopts a mechanical locking prototype with a two-step action of closing and contacting, achieving wear-free contact, small operating force, high contact pressure, and good dynamic thermal stability.

Application Areas:

Switchgear Systems: Used in metal-enclosed switchgear for isolating and protecting electrical circuits.

Power Distribution Equipment: Ideal for use in power substations, ensuring safe isolation of the circuit during maintenance.

Electric Power Plants: Utilized in indoor applications where high-voltage electrical isolation is required for safe operations and maintenance.

Transformer Stations: Applied in transformer substations for safe isolation of transformer circuits.

Renewable Energy Installations: Can be used in energy storage or renewable energy systems like solar and wind farms for protection and isolation during maintenance.

Environmental conditions for use

1.Ambient air temperature: -15℃~40℃, daily average temperature ≦35℃.

2.Altitude ≦1000m.

3.Temperature conditions:

Daily average relative humidity ≦95%, daily average water vapor pressure ≦2.2kPa;

Monthly average relative humidity ≦90%, monthly average water vapor pressure ≦1.8kPa.

4.Earthquake intensity ≦8 degrees.

5.Places without fire, explosion danger, severe pollution, chemical corrosion and severe vibration.

Note: If the product use conditions exceed the above provisions, the user shall negotiate and determine with the company.

Describe Display

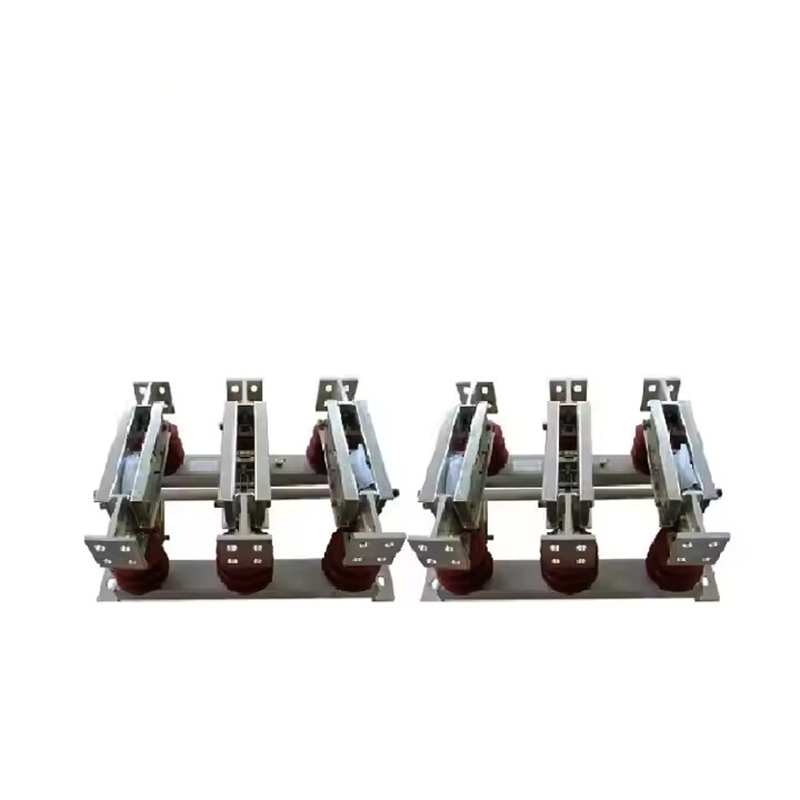

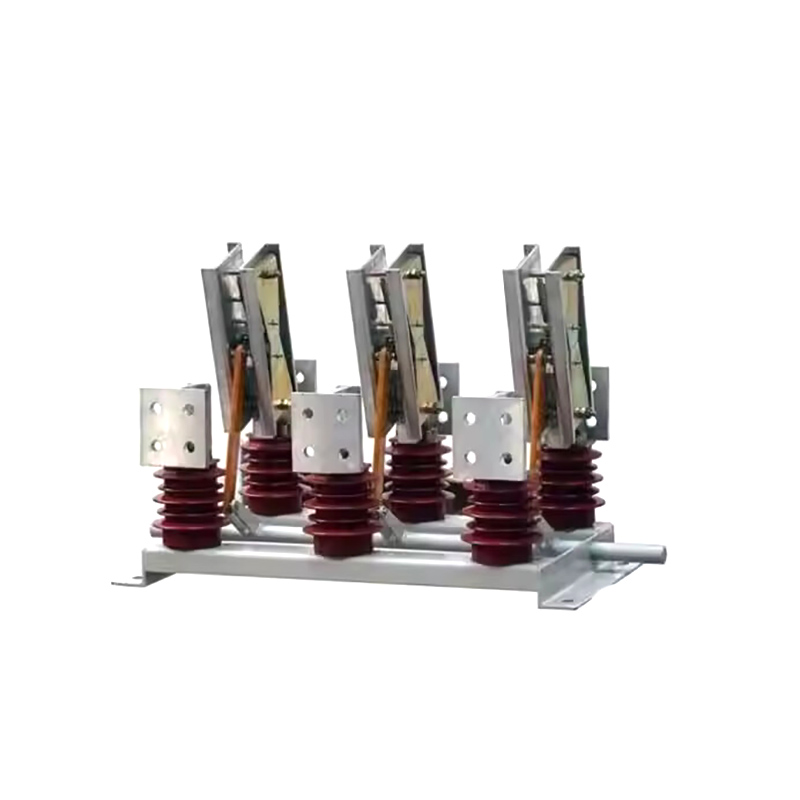

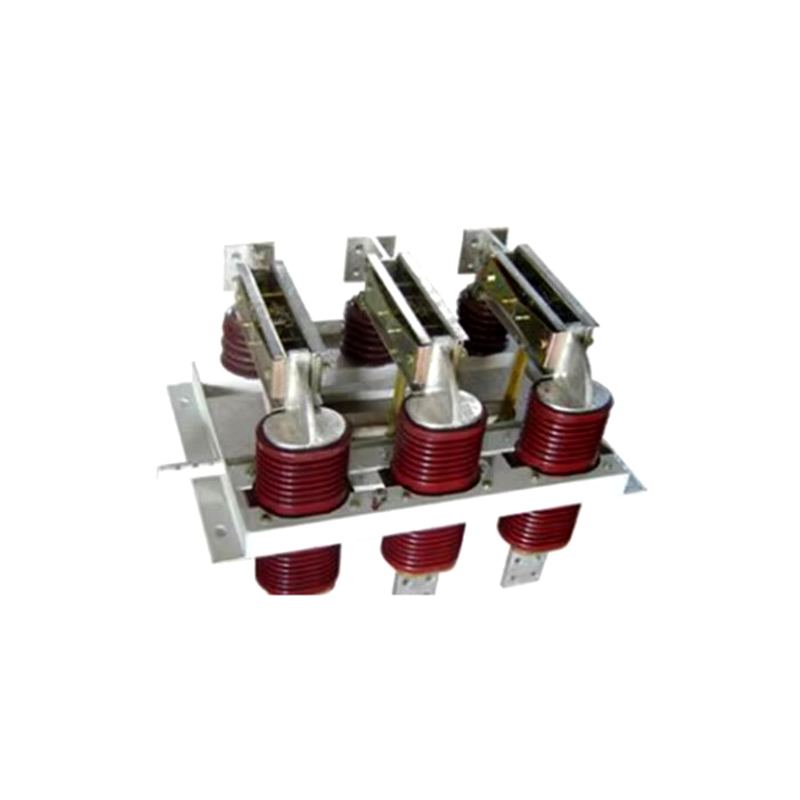

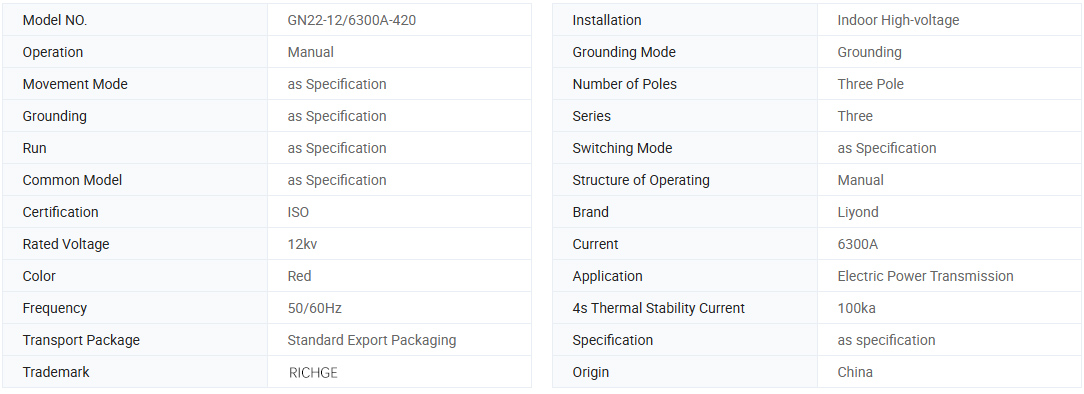

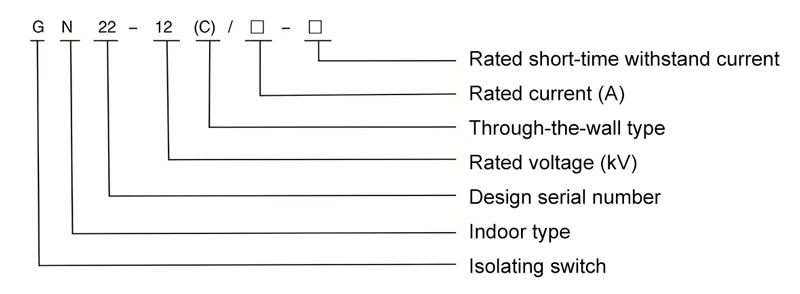

Technical parameter

Model.	Rated voltage	Rated current	4-second thermal stability current (effective value) kA	Dynamic stability current (peak value) kA
GN22-12(C)(D)/2000A	12	2000	50	100
GN22- 12(C)(D)/2500A	12	2500	50	125
GN22-12(C)(D)/3150A	12	3150	50	125
GN22- 12(C)(D)/4000A	12	4000	50	125
GN22-12(C)(D)/5000A	12	5000	100	250
GN22- 12(C)(D)/6300A	12	6300	100	250
GN22- 12(C)(D)/8000A	12	8000	100	250

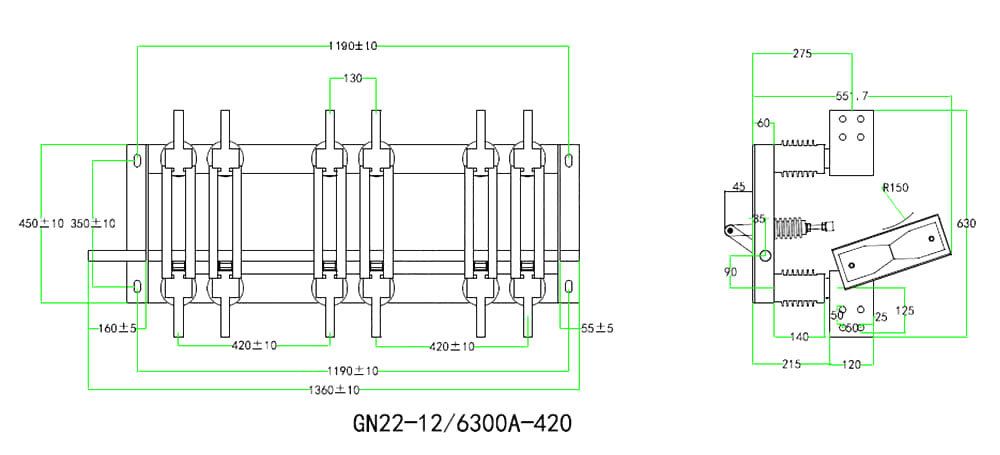

Dimensional drawing reference (6300A)
