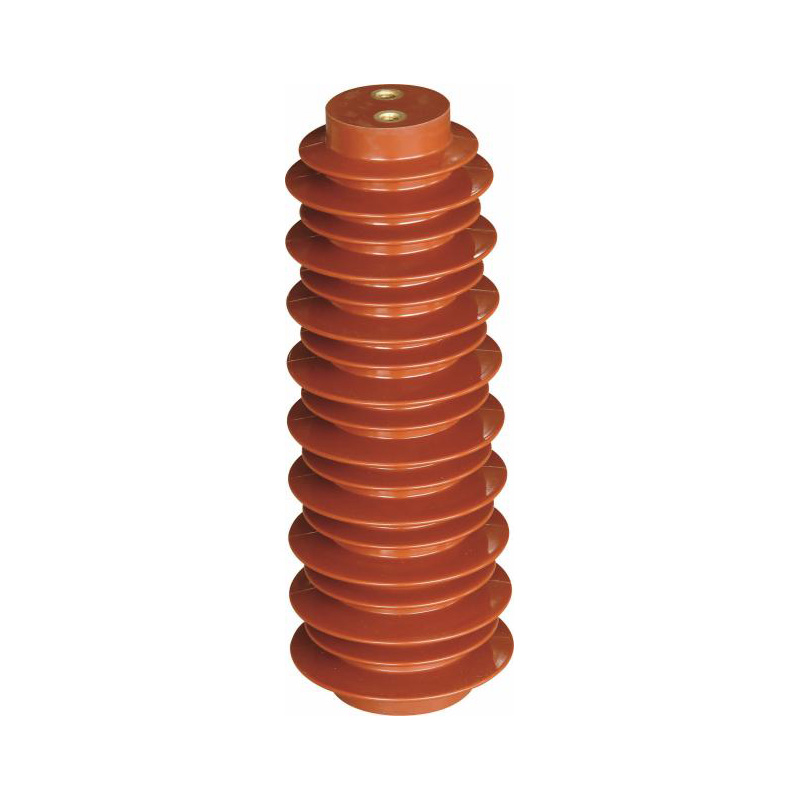

The High voltage composite insulator is a vital component designed to provide electrical isolation and support in high-voltage power systems. Engineered to withstand extreme electrical stresses and environmental conditions, this insulator ensures the reliable and safe operation of electrical infrastructure by preventing electrical leakage and maintaining system integrity.This insulation prevents short circuits and electrical arcing, which can lead to equipment damage and pose significant safety risks to personnel working in or around high-voltage environments.
High voltage composite insulator Applications:
● Power Transmission Lines: Ideal for use in high-voltage power transmission systems to insulate conductors from the supporting structures and the ground, preventing electrical faults and ensuring safe power delivery.
● Industrial Electrical Systems: Suitable for various industrial applications where high-voltage insulation and support are required to ensure reliable and safe operation of electrical equipment and infrastructure.
High voltage composite insulator Key Features:
● High Electrical Insulation: Specifically designed to handle high-voltage applications, providing excellent insulation properties to prevent electrical discharge and leakage, ensuring safe operation up to the specified voltage rating.
● Thermal Resistance: Capable of operating effectively under varying temperature conditions, with materials designed to withstand heat generated by electrical currents without degradation.
High voltage composite insulator Specification：
| Model | Drawing |
| JYZ-40.50/130X320 |
|
| JYZ-40.50/130X340 |
|
| JYZ-40.50v130x360 |
|
| JYZ-40.50130X380 |
|
| JYZ-40.5QV155X320 |
|
| JYZ-40.5Q/155X340 |
|
| JYZ-40.50/155X360 |
|
| JYZ-40.5Q155X380 |
|
| JY2-40.50V155X420V460V480 |
|
