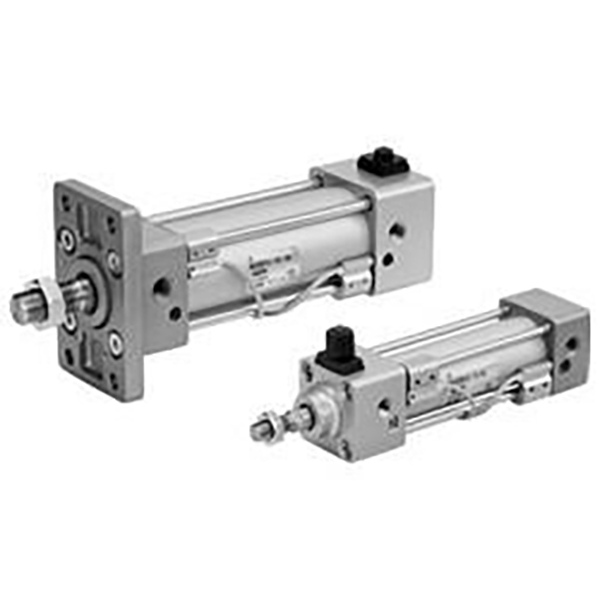

MBB Series Lightweight Tie Rod Standard Cylinder

Brand: SOLH by Richge Technology

Product Overview

     SOLH MBB series lightweight tie rod standard cylinder (MB-Z series), upgraded successor of traditional MB series with 10% weight reduction. Equipped with square end caps, adjustable double-end air cushions and abundant mounting options. Widely used in general automation equipment with medium speed, high frequency and medium load conditions. Installation dimensions comply with ISO 15552 standard, interchangeable with competing brand tie rod cylinders.

Core Structure & Features

   1. Structure: Round aluminum barrel, internal tie rods, square end caps, adjustable air cushion on both ends, high structural rigidity.

   2. Material: Hard anodized aluminum barrel, high-strength cast end caps, hard chrome plated piston rod, high tensile tie rods, wear-resistant and long service life.

   3. Operation Variants

     -- MBB: Single rod double acting (without built-in magnet)

     -- MDBB: Single rod double acting (built-in magnetic ring for auto switch)

     -- MBW/MDBW: Double rod double acting, excellent anti-torsion performance

   4. Cushion: Independently adjustable air cushion on both ends, effectively reduce terminal impact, vibration and noise.

   5. Sensor Installation: Pre-machined grooves for M9B/A93/M9BW magnetic auto switches to detect piston position.

   6. Lightweight Upgrade: Optimized end cap geometry, 10% lighter than old MB model, easier assembly and transportation.

   7. Standard Compatibility: ISO 15552 mounting standard, direct cross-brand interchangeability.

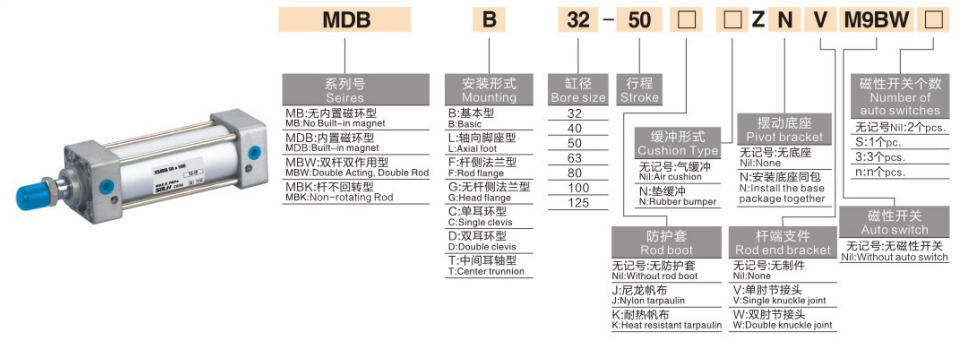

Complete Model Coding Rule

   1. Model Example：MDBB40-100Z-M9BW

   2. Standard Order Examples

     -- MBB50-200Z: Bore50, stroke200, lightweight basic model without magnet

     -- MDBB63-150Z-LB: Bore63, stroke150, built-in magnet, foot mounting

     -- MDBB80-300Z-FA: Bore80, stroke300, rod side flange mounting

Core Technical Specifications

Theoretical Thrust & Pull Force @0.5MPa (Single Rod, Unit:N)

  1. Double Acting MBB / MDBB

Mounting Types & Derivative Models

   1. Mounting Options

     -- B Basic Type: Direct installation via end cap through holes

     -- LB Foot Mount: Stable horizontal installation for heavy load

     -- FA/FB Flange: Rod-side /head-side flange for vertical mounting

     -- C/D Clevis: Single/double clevis for hinged swing motion

     -- T Trunnion: Middle trunnion mount for turnover mechanism

   2. Main Derivative Series

     -- MBB/MDBB/MBW: Standard single rod non-magnet /magnet & double rod cylinder

     -- MBK/MDBK: Non-rotating rod cylinder to prevent piston rod twisting

     -- -XB6 High Temperature Type: Working range -20~+150℃

     -- -XC6 Stainless Steel Piston Rod: For mild corrosive & humid environment

3-Step Fast Selection Guide

   1. Bore selection: Calculate required thrust from actual load, reserve ≥50% safety margin. Prioritize MBB for medium-speed medium-load general automation.

   2. Stroke confirmation: Add 10~20mm safety margin to effective travel. Max standard stroke 1000mm, customized up to 1500mm.

   3. Configuration matching

     -- Position detection: Choose MDBB built-in magnet model, match M9B/A93 auto switches.

     -- Mounting: LB foot mount for horizontal heavy load; FA flange preferred for vertical installation.

     -- Special conditions: Select -XB6 for high temperature, -XC6 stainless rod for corrosive environment.

One Sentence Summary

     SOLH MBB lightweight tie rod standard cylinder complies with ISO15552, equipped with adjustable air cushion and multiple mounting methods, ideal general-purpose linear actuator for medium-load high-frequency automation production lines.
