MGF Series Guide Table Cylinder | Low-Profile High Anti-Deflection Pneumatic Cylinder

Brand: SOLH by Richge Technology

Product Overview & Core Structural Features

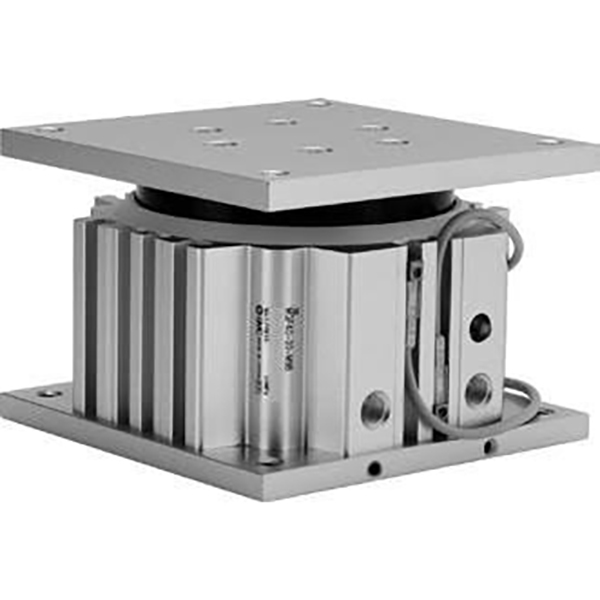

     The SOLH MGF series is a low-profile guide table cylinder featured with a large concentric guide sleeve structure and 360° uniform anti-deflection load capacity. Covering bore sizes of φ40mm, φ63mm and φ100mm with standard short strokes ranging from 30mm to 100mm, this cylinder adopts an ultra-thin low-height design and supports top & bottom dual-direction mounting. It delivers excellent anti-eccentric load performance and high-precision anti-rotation capability, perfectly suited for short-stroke heavy-load working conditions such as workpiece lifting, precise positioning, station turning and heavy-duty pushing, serving as the preferred pneumatic solution for compact automated equipment.

Key Structural Advantages

• Ultra-Low Profile & Minimized Height: The overall installation height is 15–20% lower than the MGQ series, realizing an ultra-thin body to fit highly compact equipment layout. Replacing the traditional dual guide rod structure with a large-diameter concentric guide sleeve reduces overall weight by approximately 15% and provides consistent 360° omnidirectional anti-deflection performance without directional sensitivity.

• Powerful Anti-Eccentric Load & High Rigidity: The integrated large guide sleeve and built-in anti-rotation pin structure endow the cylinder with ultra-large allowable torque, reaching up to 409N·m for the φ100mm model. It stably bears eccentric loads from any 360° direction without deflection or jamming. High-precision anti-rotation accuracy ensures stable repeated positioning: φ40 (±0.08°), φ63 (±0.06°), φ100 (±0.05°).

• Flexible Mounting & Piping Layout: Adopts innovative top and bottom bi-directional mounting design, enabling fixed installation on both upper and lower surfaces to adapt to horizontal lifting, vertical pressing and multi-directional working scenarios. Equipped with four-side T-slot design (three available sides excluding the piping surface), magnetic switches can be installed on four sides for flexible multi-position stroke detection.

• Durable & Low-Maintenance Design: Double-acting reciprocating structure with dual-end rubber buffers effectively reduces movement impact and operating noise, extending the service life of the cylinder and peripheral equipment. Oil-free maintenance-free design supports operation in clean environments and greatly reduces daily maintenance costs.

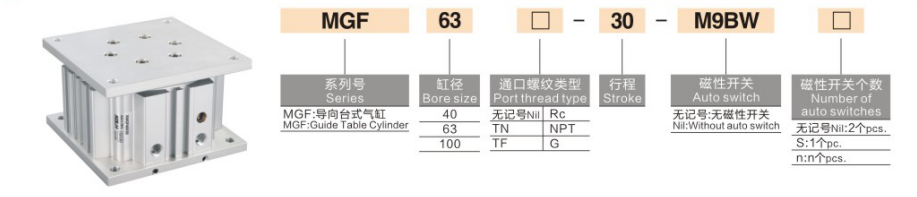

Complete Model Naming Rules

Model Examples: MGF63-50-M9BW | 10-MGF40-30-Y59B

Standard Order Reference Examples

• MGF40-30: 40mm bore, 30mm stroke, standard type without magnetic switch

• MGF63-75-2S: 63mm bore, 75mm stroke, dual magnetic switches for dual-position detection

• 10-MGF100-100-Y59B: 100mm bore, 100mm stroke, clean low-dust series with Y59B magnetic switch

Standard Core Technical Parameters

(Standard test conditions: 20℃ normal temperature, 0.5MPa rated pressure)

1. General Performance Specifications

• Operation Mode: Double-acting reciprocating motion

• Working Pressure Range: 0.1~1.0MPa; Proof Pressure: 1.5MPa

• Ambient Temperature: -10℃~60℃ (ice-free environment)

• Piston Operating Speed: 50~500mm/s

• Buffer Mode: Dual-end rubber buffer for impact reduction and noise elimination

• Lubrication Mode: Oil-free maintenance-free operation, compatible with clean workshops

2. Theoretical Thrust Data (Unit: N)

3. Allowable Torque Data (100mm/s, Unit: N·m)

4. Product Weight Data (50mm Stroke, Unit: kg)

Typical Application Scenarios

• Lifting & Positioning Stations: Ideal for production line workpiece jacking, pallet positioning and jig ejection. The high-rigidity guide structure ensures stable operation under short-stroke heavy-load conditions without position deviation.

• Station Turning & Direction Switching: Suitable for index plate rotation, 90° workpiece flipping and automated direction switching processes. Ultra-high anti-rotation precision guarantees consistent machining and assembly accuracy.

• Heavy-Duty Short-Distance Translation: Perfect for short-stroke heavy-load pushing/pulling and 360° arbitrary direction eccentric load driving. The uniform omnidirectional anti-deflection capability solves the directional limitation of traditional dual-guide-rod cylinders.

• High-Cleanliness Automated Equipment: Oil-free and low-dust design adapts to strict working environments of semiconductor, 3C electronics and medical equipment, meeting clean workshop production standards with low maintenance requirements.

MGF vs MGQ Core Difference Comparison

Three-Step Quick Selection Guide

1. Bore Size Selection: Select the appropriate bore based on actual working load. Ensure theoretical thrust ≥ actual load × 1.5. Prioritize larger bore sizes for eccentric load working conditions to enhance stability and anti-deflection performance.

2. Stroke Selection: Standard stroke options are 30mm, 50mm, 75mm and 100mm. Prefer the MGF series for all short-stroke applications (≤100mm) requiring low profile and high anti-eccentric capacity.

3. Configuration Selection

￮ Dual-position stroke detection: Select 2S dual magnetic switch configuration for accurate end-to-end positioning monitoring.

￮ High-cleanliness environment: Choose the 10- prefix clean low-dust series to adapt to semiconductor, medical and electronic precision equipment scenarios.

One Sentence Summary

     SOLH MGF series low-profile guide table cylinder features ultra-thin installation height, 360° uniform anti-deflection load capacity, large allowable torque and bi-directional mounting flexibility, serving as the optimal short-stroke heavy-load pneumatic solution for compact precision automation equipment.
