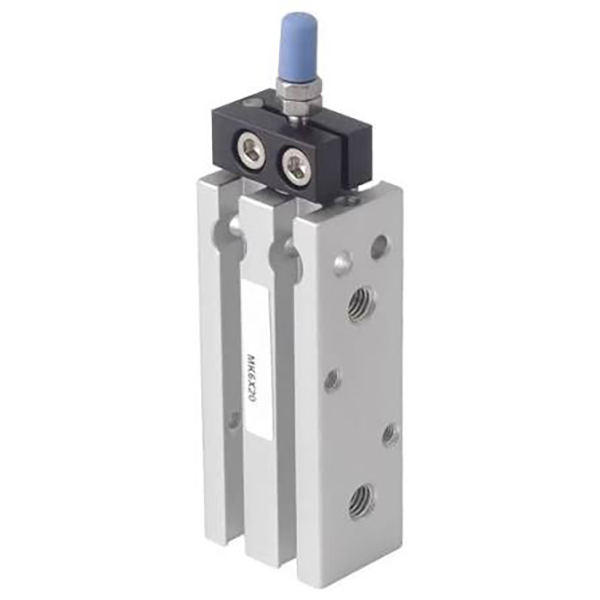

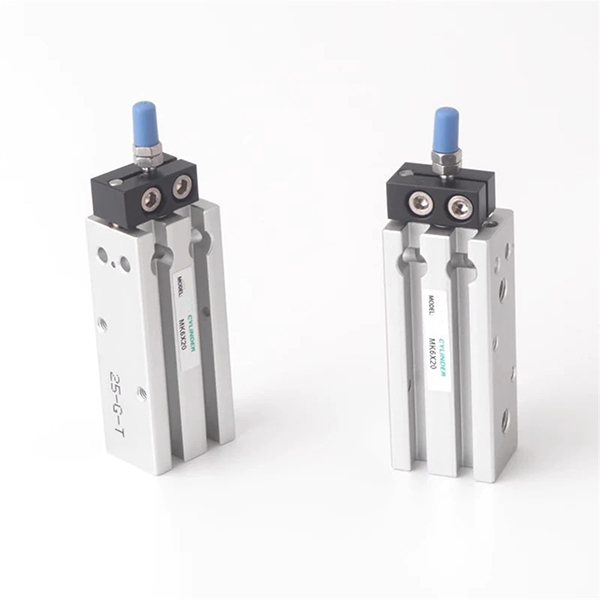

MK Series Multi-Mount Cylinder

MK Series Multi-Mount Anti-Rotation Compact Cylinder

Brand: SOLH by Richge Technology

Product Overview

     SOLH MK series thin multi-mount cylinder is upgraded version of MD cylinder with built-in anti-rotation mechanism. Square body supports six-surface installation without extra brackets. The anti-twist structure restricts piston rod rotation, enables multi-cylinder parallel installation, ideal for limited-space precision automation with angular positioning requirements. Direct interchangeable with Airtac MD and SMC CQS series.

Structure & Features

     -- Square thin aluminum body, integrated anti-rotation guide slot;

     -- Hard anodized barrel, chrome plated piston rod, durable & lightweight;

     -- Full variants: MK(double acting), MSK(spring extend), MTK(spring retract), MKD(double rod), MKJ(double rod adjustable stroke); suffix -S for built-in magnet;

     -- Anti-rotation accuracy ≤±0.5°, avoid workpiece angular deviation;

     -- Mountable on front, rear, left, right, top, bottom sides; support side-by-side parallel assembly;

     -- Circumferential sensor grooves for flexible magnetic switch installation.

Model Coding Rule

   1. Example: MK20-50-S

     -- MK: Series code; K=anti-rotation; D=double rod; J=adjustable stroke

     -- 20: Bore size:6/10/16/20/25/32 mm

     -- 50: Stroke length 5~100mm

     -- -S: Built-in magnet ring

Technical Specifications

Theoretical Thrust & Pull @0.5MPa (Single Rod, N)

Selection Guide

     -- Select bore with minimum 50% safety margin for working load;

     -- Add 5~10mm allowance to practical travel stroke; max standard stroke:100mm;

     -- Choose -S model if position detection required; select MKD double rod for side load condition.

One Sentence Summary

     SOLH MK six-surface mount compact cylinder equipped with built-in anti-rotation mechanism, suitable for precision positioning and compact multi-cylinder layout in limited-space automation equipment.
