China Indoor Withdrawable Vacuum Circuit Breaker Manufacturer, Supplier, Factory

The Indoor Electrical Ground Switch is a vital safety device in high-voltage power systems, designed to facilitate the grounding and isolation of electrical equipment during maintenance operations. It operates effectively at voltage levels between 12kV and 40.5kV, showcasing robust short-circuit withstand capabilities and reliable mechanical functionality. With its compact design, it ensures straightforward installation and user-friendly operation, making it suitable for high-voltage switchgear and substations. Compliant with rigorous international standards, this grounding switch provides consistent safety and performance in demanding electrical conditions.

FLN36-24D load break switch use SF6 gas as arc extinguishing and insulating medium. There are three work stations: opening, closing and grounding in the switch. It has small volume, installing easy-to -use, strong environmental adaptabiliy and other characterist. FLN36-12(24)D/630-20 Indoor AC High Voltage SF6 Load Break Switch and FLRN36-12(24)D/100-31.5 Indoor AC High Voltage SF6 Load Break Switch-Fuse Combination are used for the three-phase AC 50/60Hz RMU and terminal power station. The switches are suitable for protecting the 10kV, 24kV and 35kV power systems in load situations. The switch can switch off the on-load current, closed loop current, no-load transformer capacity and cable charging current. The switch with fuse combination can cut off any current when the current is in the range of the rated short-circuit breaking current. They are suitable for the RMU, combined transformer, etc.

The MDMAX-ST switch cabinet door hinge is a special type of hinge for switch cabinets or electrical cases, corrosion resistant, anti-aging material with a long service life. The function of these hinges in the electrical equipment cabinet ensures that the door opens and closes smoothly while maintaining the safety and protection of the sensitive components inside. Comply with international and domestic electrical standards and certifications, such as IEC, GB, etc., to ensure product quality and safety.

The GN22-12 (C) (D)series indoor high-voltage disconnecting switch is designed for power systems with a rated voltage of 12kV and a frequency of 50Hz. This device is mainly used for opening and closing circuits in the power system under no-load conditions. With high current withstand capabilities, it is ideal for applications requiring high security and frequent operations. The device can be configured to meet various environmental needs. This product is a high-current isolating switch with a three-phase common bottom knife structure. It adopts a mechanical locking prototype with a two-step action of closing and contacting, achieving wear-free contact, small operating force, high contact pressure, and good dynamic thermal stability.

Steel cup washer for switchgear Switchgear Handle Assembly: Product Details and Applications The Switchgear Handle Assembly is a critical component designed for ease of operation and safety in electrical switchgear systems. Constructed from high-quality, durable materials, it ensures reliable performance under demanding conditions. The assembly typically features a robust handle, a pivot mechanism, and a secure mounting bracket, allowing for smooth operation and stability.

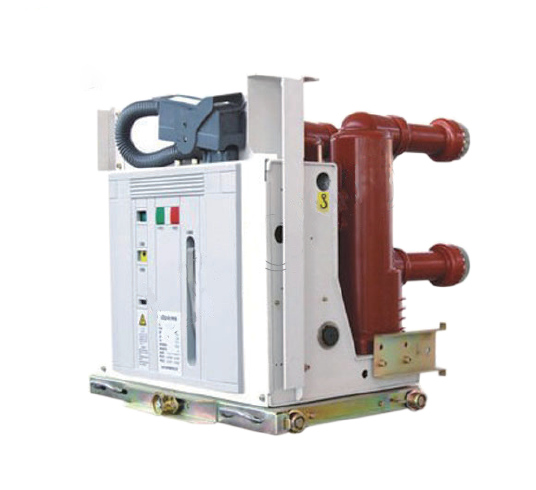

VS1-24 indoor high voltage vacuum circuit breaker applies to power system of rated voltage 24kv as a protective and control unit for power grid equipment and industrial power equipment. It can equip with KYN28(GZS1), XGN, GG-1A and other types of switchgear panels. Related products: isolated handcart, fuse handcart and voltage transformer handcart. VS1-24 series of indoor high voltage vacuum circuit breaker with common insulated cylinder is three-phrase A.C. 5o Hz indoor power distribution equipment with the rated voltage of 24KV. It' s used for protecting controlling the electrical eguipment in the fields of industry and mining enterprise, power plants and substation.This type vacuum circuit breaker conforms to national standards and the stipulation of IEC standard, the capability reaches grade of M2-E2-C2. The product adopts composite insulation way, spring charged operation and rod push mechanism, with the characteristics of small volume, compact design and reliable operation. It can easily match with the switchgear and meet the "Five Preventions" demands. This kind of 24kV VCB can be used for many kinds of medium-voltage switchgear like KYN28-24(GZS1). This series of products include: VCB truck isolation truck and Fuse truck, etc.
