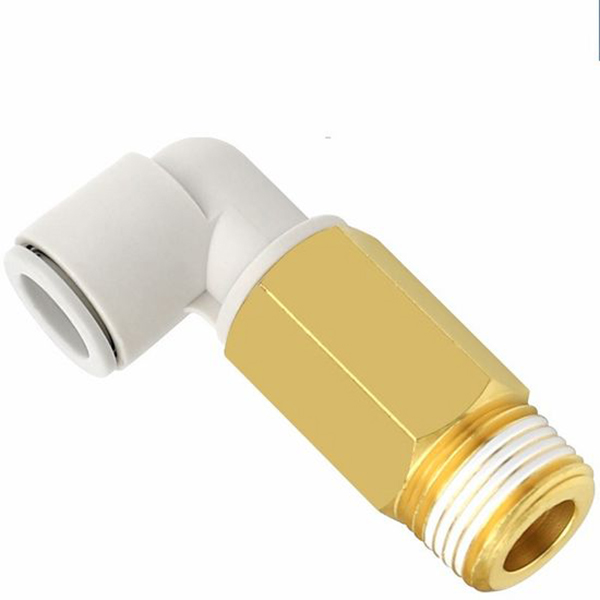

Brand: SOLH by Richge Technology | KQ2W Extended L-Type One-Touch Elbow
 |
 |
 |
KQ2W series is L-type extended stem push-in elbow within SOLH KQ2 pneumatic fitting family. 90° right-angle construction. One end male thread (imperial R taper thread / metric M fine thread), the other end for PU/PA pneumatic tubing insertion. The series also includes non-reducing extended version KQ2Wxx-99, both ends for tube connection for pipeline lengthening and obstacle avoidance.
Core Advantage: Extended stem design resolves installation space constraints and mechanical interference. One-touch structure, tool-free tube insertion & removal. Plastic body + brass threaded section, anti-aging, compatible with pneumatic and vacuum circuits. Direct import substitute for SMC KQ2W series for overseas projects.
Format: KQ2W □□ - □□S
KQ2W: Series code for L-type extended elbow
□□: Tube outer diameter ΦD (02=2mm,23=3.2mm,04=4mm,06=6mm,08=8mm,10=10mm,12=12mm,16=16mm)
Suffix:01S02S/03S/04S: Imperial R male thread (1/8",1/4",3/8",1/2")
M3GM5: Metric male thread M3×0.5 / M5×0.8
-99: Non-reducing extended version, both ends same-diameter tube connection, no thread
|
Item |
Parameter |
|
Body Material |
PBT engineering plastic, high impact resistance |
|
Thread Section |
Brass with nickel plating for rust prevention |
|
Seal Material |
NBR nitrile rubber |
|
Compatible Tubing |
PU tube, PA nylon pneumatic tube |
|
Working Pressure |
0~1.0MPa, applicable for vacuum |
|
Operating Temperature |
-20℃ ~ +60℃ |
|
Connection Method |
Push-in; press release ring to insert or detach tube |

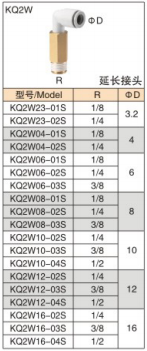

4.1 Imperial R Thread Version (Brass Male Thread)
|
Model |
Male Thread R |
Tube ΦD |
|
KQ2W23-01S |
R1/8 |
3.2 |
|
KQ2W23-02S |
R1/4 |
3.2 |
|
KQ2W04-01S |
R1/8 |
4 |
|
KQ2W04-02S |
R1/4 |
4 |
|
KQ2W06-01S |
R1/8 |
6 |
|
KQ2W06-02S |
R1/4 |
6 |
|
KQ2W06-03S |
R3/8 |
6 |
|
KQ2W08-01S |
R1/8 |
8 |
|
KQ2W08-02S |
R1/4 |
8 |
|
KQ2W08-03S |
R3/8 |
8 |
|
KQ2W10-02S |
R1/4 |
10 |
|
KQ2W10-03S |
R3/8 |
10 |
|
KQ2W10-04S |
R1/2 |
10 |
|
KQ2W12-02S |
R1/4 |
12 |
|
KQ2W12-03S |
R3/8 |
12 |
|
KQ2W12-04S |
R1/2 |
12 |
|
KQ2W16-02S |
R1/4 |
16 |
|
KQ2W16-03S |
R3/8 |
16 |
|
KQ2W16-04S |
R1/2 |
16 |

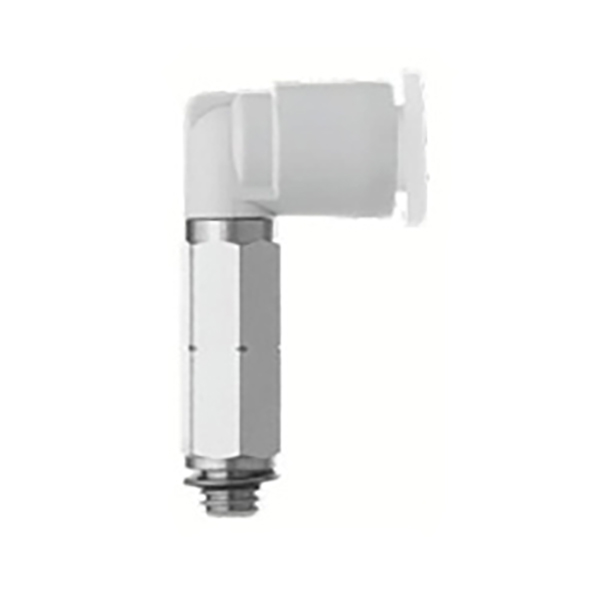

4.2 Metric M Thread Version
|
Model |
Male Thread |
Tube ΦD |
|
KQ2W02-M3G |
M3×0.5 |
2 |
|
KQ2W02-M5 |
M5×0.8 |
2 |
|
KQ2W23-M3G |
M3×0.5 |
3.2 |
|
KQ2W23-M5 |
M5×0.8 |
3.2 |
|
KQ2W04-M3G |
M3×0.5 |
4 |
|
KQ2W04-M5 |
M5×0.8 |
4 |
|
KQ2W06-M5 |
M5×0.8 |
6 |

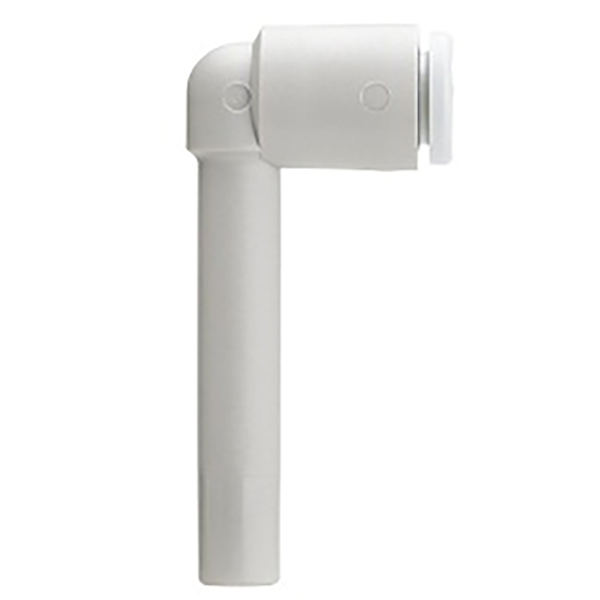

4.3 Non-Reducing Extended Version (Tube to Tube, No Thread)
|
Model |
Port 1 ΦD |
Port 2 ΦD |
|
KQ2W23-99 |
3.2 |
3.2 |
|
KQ2W04-99 |
4 |
4 |
|
KQ2W06-99 |
6 |
6 |
|
KQ2W08-99 |
8 |
8 |
|
KQ2W10-99 |
10 |
10 |
|
KQ2W12-99 |
12 |
12 |
• Avoid mechanical interference for cylinders, vacuum generators and solenoid valves; extend & redirect pipeline direction
• 90° extended tubing routing for robotic vacuum suction cup circuits in compact automation lines
• Direct replacement for original SMC KQ2W, import substitution for cost reduction
• Cut tubing vertically and flat, fully insert to bottom to guarantee sealing.
• PTFE tape can be wrapped on threads; do not over-tighten threads to prevent cracking of fitting body.
• Tube removal: press white release ring and pull tube outward simultaneously.
