Y Type Double Ear Clevis Joint for Cylinder Rod End

Y Type Double Ear Clevis Joint for Cylinder Rod End | Fork Pneumatic Cylinder Y Clevis Fitting

Brand: SOLH by Richge Technology | Standard Pneumatic Cylinder Piston Rod Y Fork Clevis Accessory

1. Product Overview

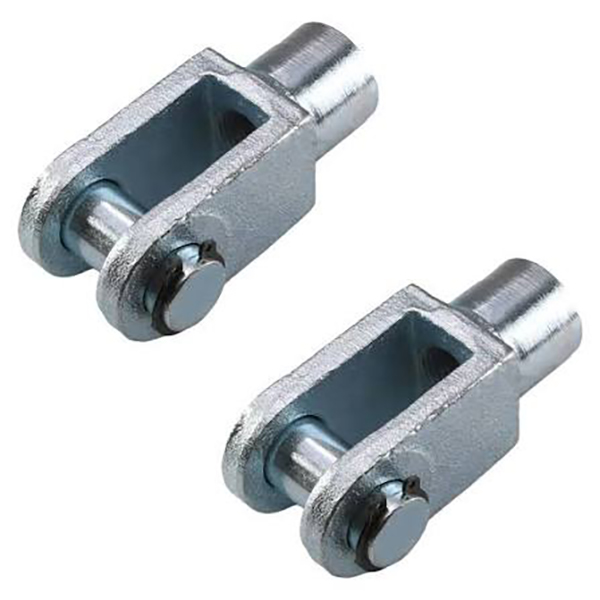

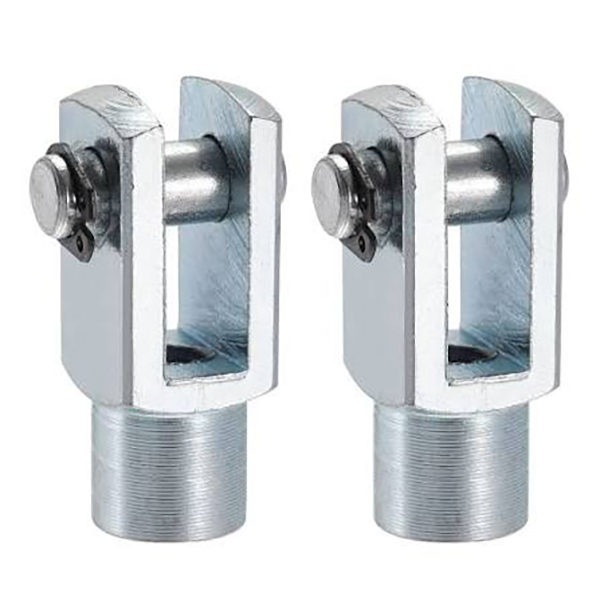

     Y-type joint, also named double ear fork clevis, comes with internal thread to fasten onto cylinder piston rod. Its double ears clamp the single ear lug of load, assembled by pin shaft for hinged connection. It enables ±5° swing within a single plane. As a standard connecting accessory for pneumatic cylinders, it is fully interchangeable with SMC and AirTAC standard spare parts.

2. Model Naming Convention

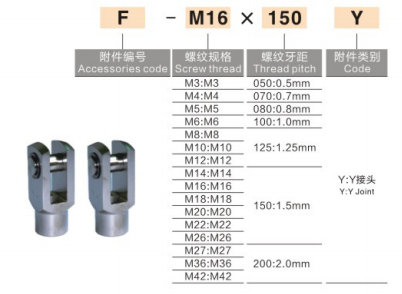

  AirTAC standard: F - Thread + Y
  Examples: F-M10×1.25Y, F-M12×1.25Y

  SMC standard: Y + Bore size
  Examples: Y-32, CA2-40-Y

     • Y: Y-type double ear clevis

     • Suffix thread matches piston rod thread: M10×1.25 / M12×1.25 / M16×1.5

3. Common Specification Table

4. Material & Technical Parameters

     • Material: Carbon steel with black oxide / galvanized finish, stainless steel optional

     • Swing Angle: ±5° single plane swing

     • Compatibility: Suitable for full range standard pneumatic cylinders

     • Installation: Screw the joint onto piston rod, insert load single lug into Y fork, secure with pin shaft and cotter pin.

5. Quick Comparison: Y-type / I-type / Rod End Bearing

6. Selection Guidance
