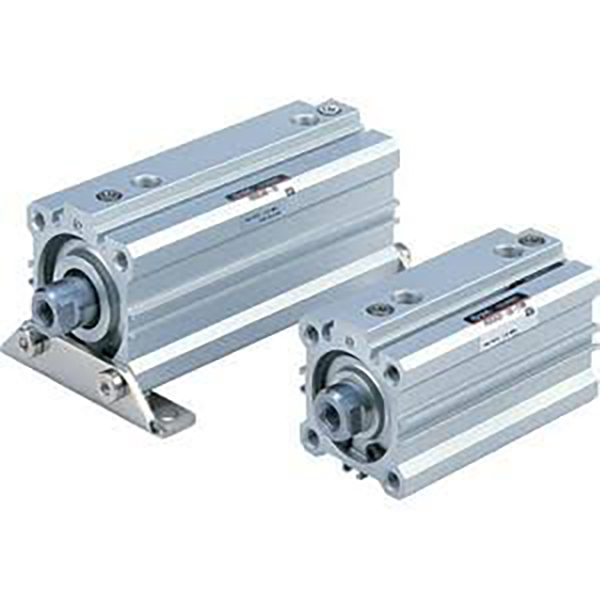

RQ Series Thin Pneumatic Cylinder with High-performance Air Cushion

Brand: SOLH by Richge Technology

Product Overview

     SOLH RQ series high-performance thin cylinder is interchangeable with SMC RQ/RDQ. Adopts innovative ringless built-in air cushion structure. Energy absorption capacity is 3 times of CQ2 rubber buffer, noise reduced by 50%. Ultra slim body, shorter than ordinary air cushion thin cylinder by 20%. Direct replacement for CQ2/CQS for upgrading cushion performance. Widely used for high-cycle, high-load, low-noise automatic positioning, clamping and material handling.

Structure & Main Features

     -- Ultra-thin square aluminum barrel, integrated ringless air cushion;

     -- Hard anodized barrel, chrome plated piston rod, strong anti-deformation performance;

     -- Variants: RQ(non-magnetic), RDQ(magnet equipped), RLQ(lock type for vertical load);

     -- Powerful air cushion suitable for continuous high-speed reciprocating 50~500mm/s;

     -- RDQ built-in magnet for magnetic switch detection, multi-side sensor slots;

     -- Mounting dimension compatible with CQ2 and CQS series.

Model Coding Rule

   1. Example: RDQB32-50-M9B

     -- R/RD: Non-magnet / Built-in magnet

     -- Q: Series code

     -- B/A/L/F/G/D: Mounting style

     -- 32: Bore size:20/25/32/40/50/63/80/100 mm

     -- 50: Stroke length

     -- M9B: Magnetic switch option

Technical Specifications

Theoretical Thrust & Pull Force & Max Allowable Kinetic Energy @0.5MPa

One Sentence Summary

      SOLH RQ series high-speed thin pneumatic cylinder with built-in ringless air cushion, superior shock absorption and low noise, ideal upgrade actuator for high-cycle heavy load automation, interchangeable with standard CQ2 thin cylinder.
