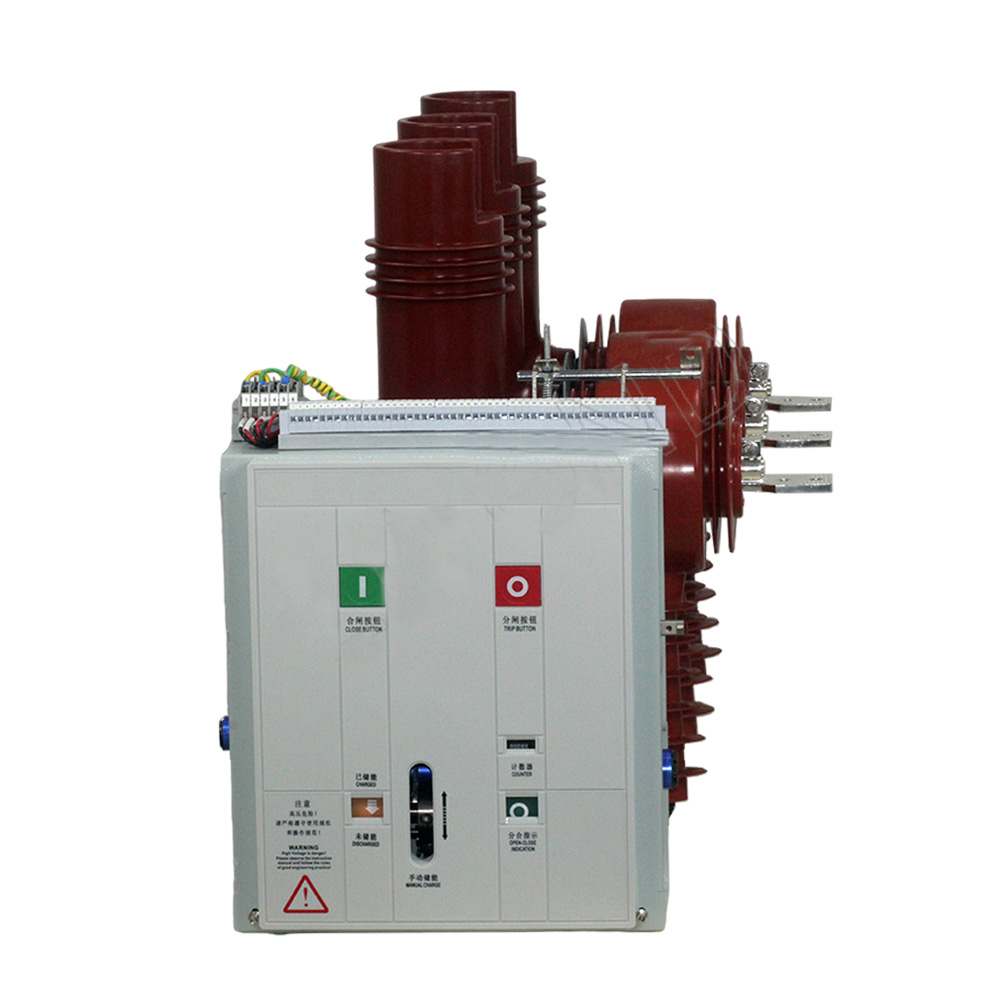

VBI-24 indoor medium-voltage sealed vacuum circuit breaker is suitable for air-insulated indoor switches and is used for control and protection in power grids with AC and rated voltage of 24KV and below. Vacuum circuit breakers are used in frequent It has extremely excellent performance in operation and situations where the circuit breaker current needs to be opened, fully meets the requirements of automatic closing, and has high reliable operation and service life.

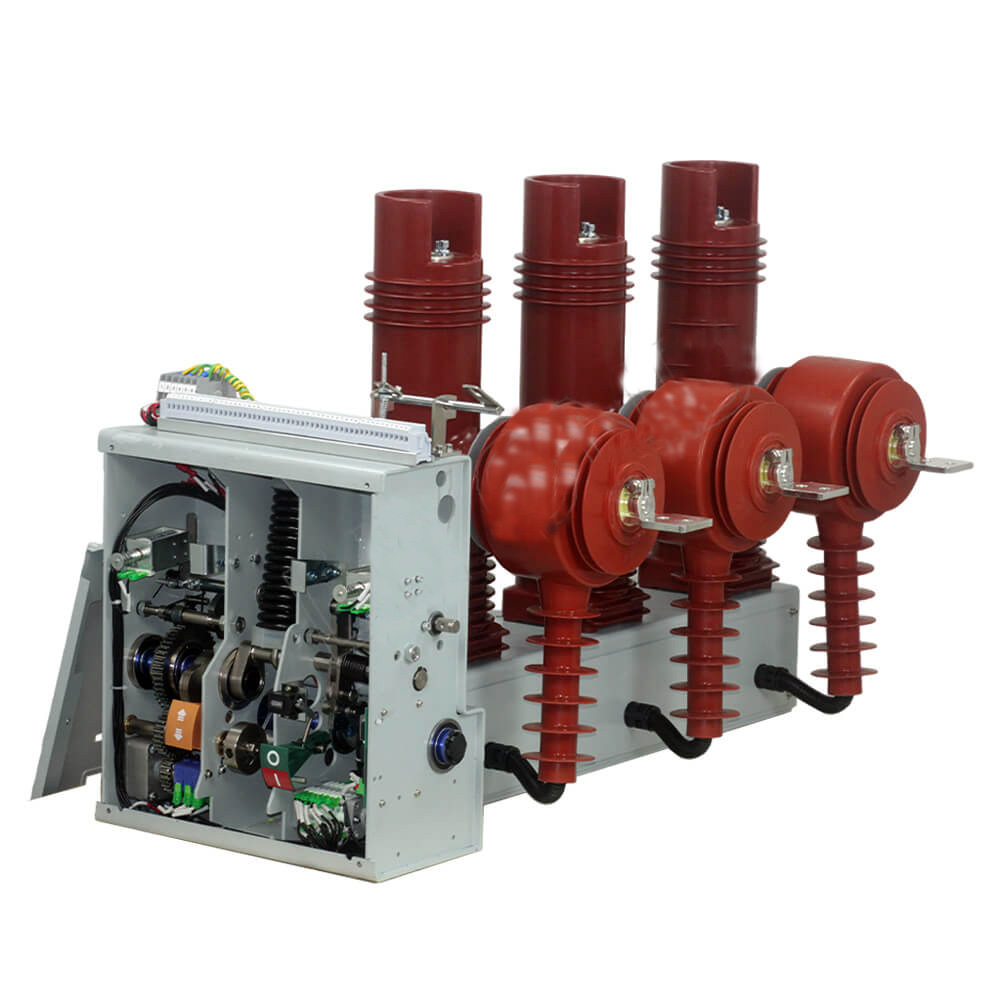

The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy, which can be operated by two ways, manual or electrical. The characteristics are accordance with GB1984-89 <AC High Voltage Circuit Breaker>, JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>, Relevant Provisions of IEC56 standard.
Advantages of installing current transformers on side-mounted circuit breakers
1. Integrated design: Installing the current transformer directly on the circuit breaker makes installation and wiring easier, reducing additional installation space and costs.
2. Instant response: Directly monitoring the current near the circuit breaker can respond to fault conditions more quickly, improving the protection speed and accuracy of the system.
3. Reduced interference: Reduced interference and attenuation in the signal transmission path, improving the accuracy of the measurement.
Features of VBI-24 side mounted type vacuum circuit beaker
The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy, which can be operated by two ways, manual or electrical. The characteristics are accordance with GB1984-89 <AC High Voltage Circuit Breaker>, JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>, Relevant Provisions of IEC56 standard.
Advantages of installing current transformers on side-mounted circuit breakers
1. Integrated design: Installing the current transformer directly on the circuit breaker makes installation and wiring easier, reducing additional installation space and costs.
2. Instant response: Directly monitoring the current near the VCB breaker can respond to fault conditions more quickly, improving the protection speed and accuracy of the system.
3. Reduced interference: Reduced interference and attenuation in the signal transmission path, improving the accuracy of the measurement.
 |
 |
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
