VS1-12 type vacuum circuit breaker is a kind of indoor high voltage switch device which is used in the AC Three-phase power system of frequency 50HZ,rated voltage 12KV to be the protection and control unit. Because of the special superiority of vacuum circuit breaker, especially suitable for applications that require frequent operation at rated operating Current or multiple open short-circuit breaking current location. It 1s especially suitable to the place requiring frequent operations.
VS1-12 type vacuum circuit breaker adopts fixed installation, which is mainly used in the fixed switchgear. It can be used alone or used in ring network power supply system, box-type variable system and non-standard power supply system to protect and control the Transmission and distribution line.

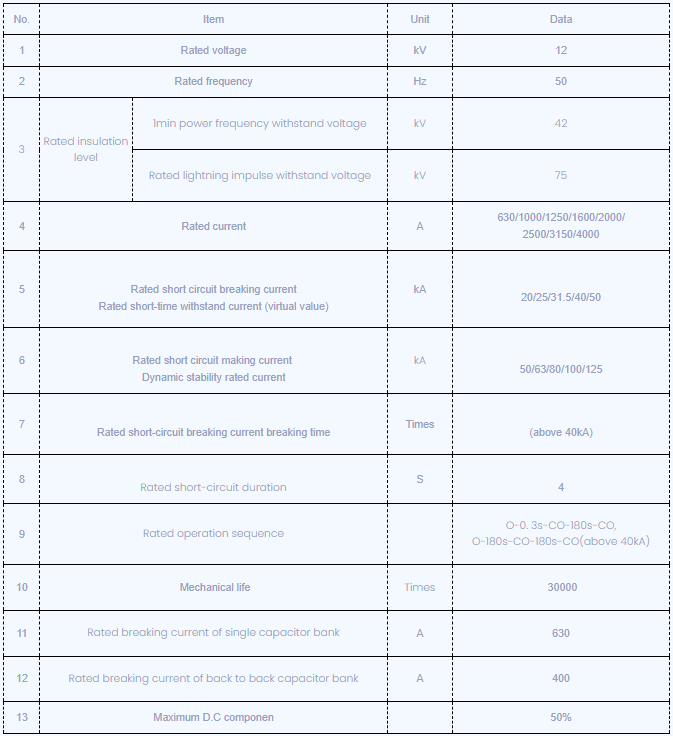

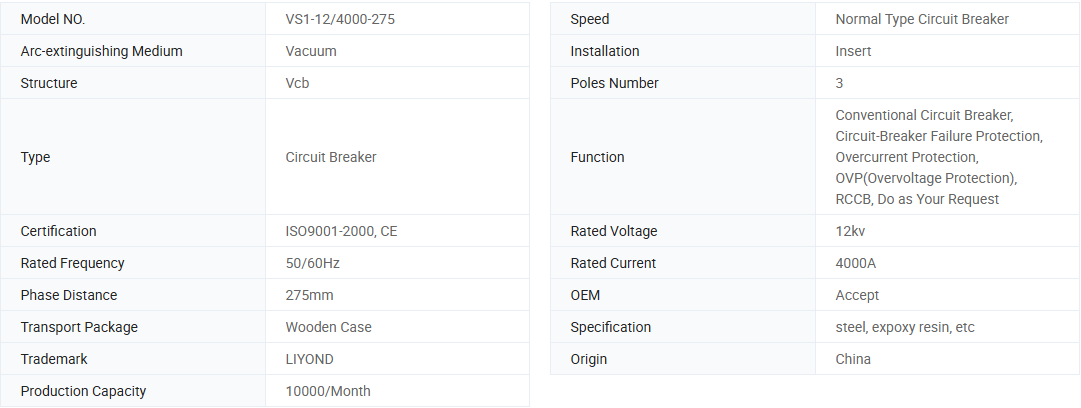

Key Features of VS1-12/4000 VCB
Rated Voltage: 12kV
Rated Current: 4000A

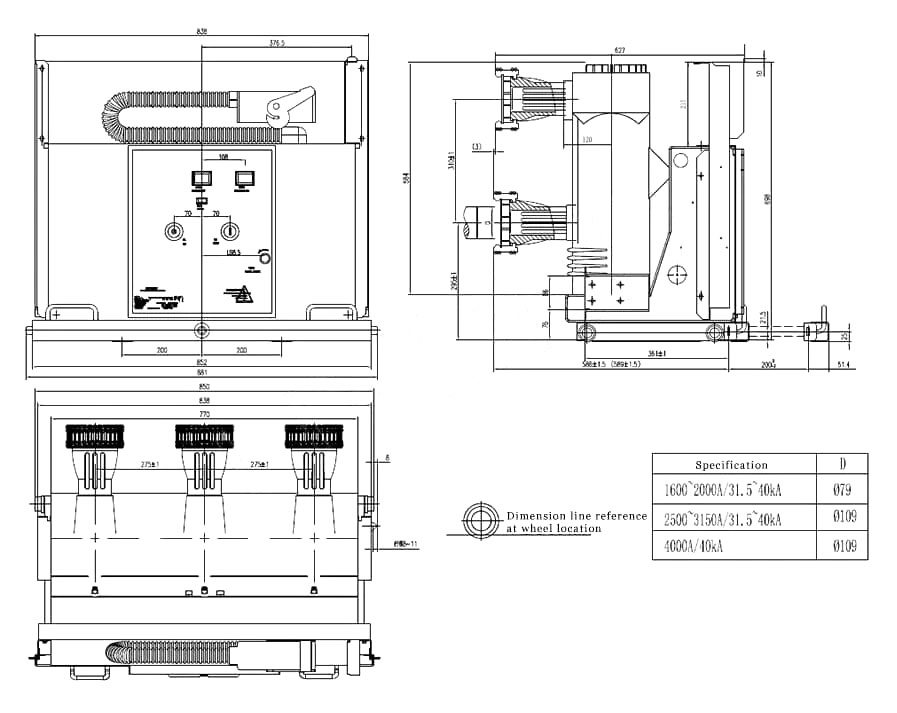

Pole Center Distance: 275mm
Breaking Capacity: 40kA
Operating Mechanism: VS1 spring-operated mechanism

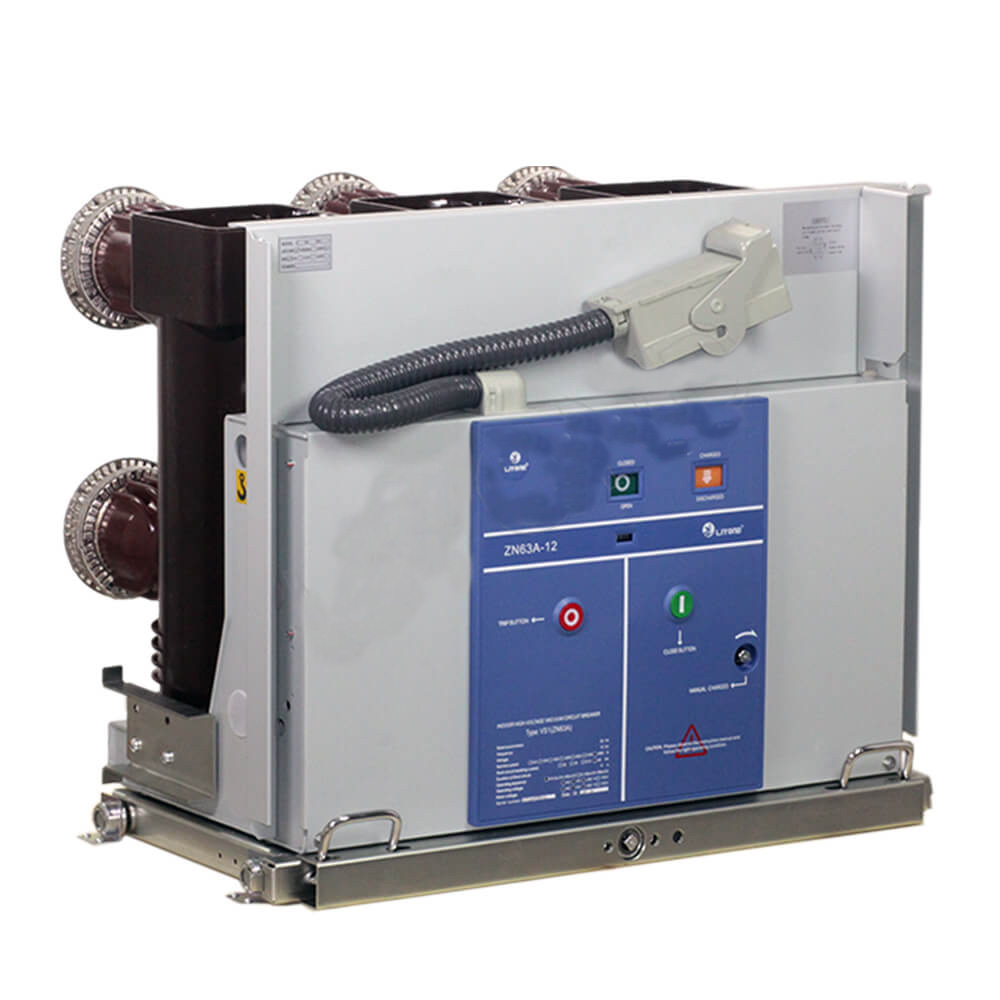

Highlights of VS1-12/4000 Trolley Type Vacuum Circuit Breaker
Superior Breaking Performance: Employs advanced vacuum interrupter technology to achieve safe, reliable arc extinction, ensuring secure electrical circuit protection even in challenging conditions.
Ease of Maintenance: The draw-out structure allows quick and straightforward access for maintenance or replacement, reducing downtime and associated costs.

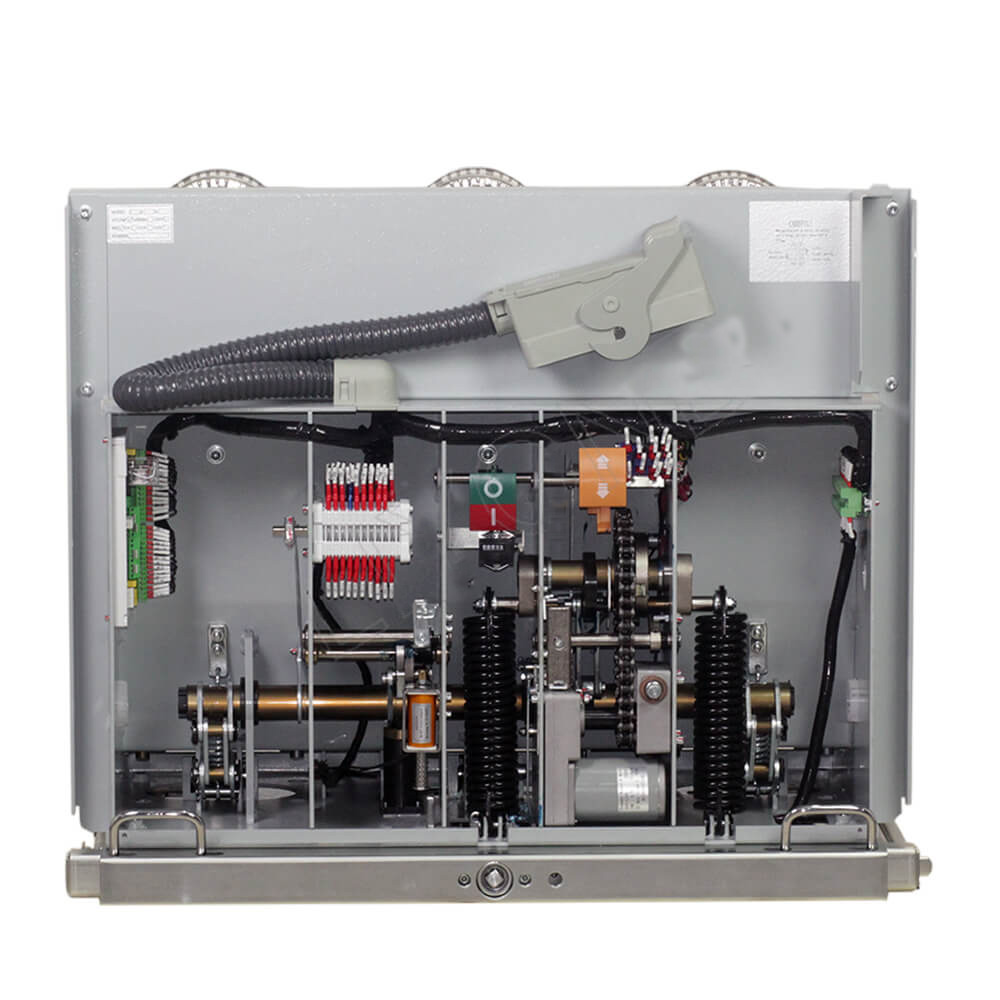

Smooth and Stable Operation: The VS1 spring-operated mechanism provides precise, responsive switching performance, designed to meet the highest industry standards.
Enhanced Insulation Properties: The use of an insulated cylinder design improves overall dielectric strength, providing robust isolation and reducing the risk of breakdowns due to environmental factors.
High Adaptability: Versatile for a wide range of industrial applications, including power distribution, manufacturing facilities, mining operations, and large infrastructure projects where high current and strong short-circuit breaking capacity are essential.
 |
 |
1. Ambient temperature: -10ºC-+40ºC
2. Ambient humidity: the average humidity of a day should be no more than 95%; the average humidity of a month should be no more than 90%;
3. Earthquake intensity: not exceed 8 degrees
4. Saturated vapor pressure: average pressure of a day should be no more than2. 2kPa,the average pressure of a month should be no more than 1.8kPa;
5.The height above sea level: less than 1000m;(not including special requirements)
6.1t should be installed in the places without fire, explosion, serious filth, chemical corrosion and violent VS1 ration.
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
