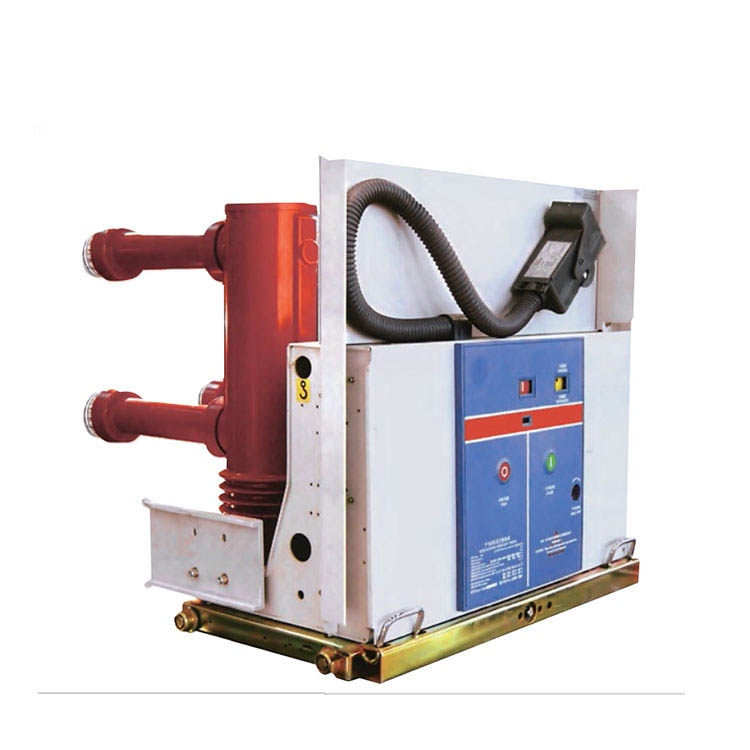

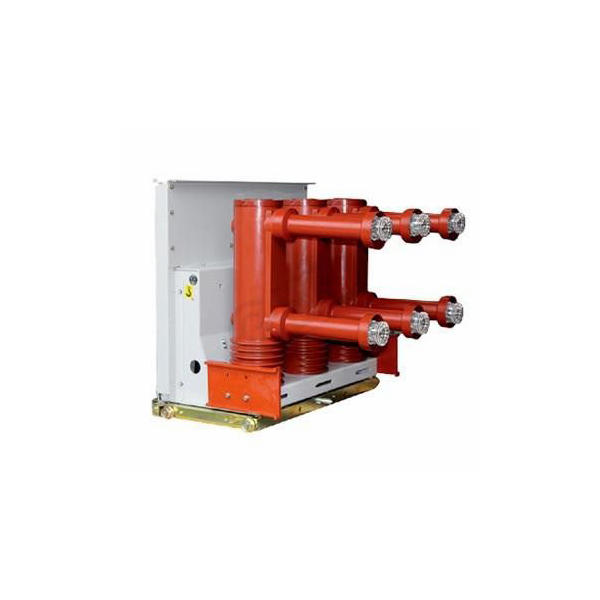

VS1-24 series of indoor high voltage vacuum circuit breaker with common insulated cylinder is three-phrase A.C. 50 Hz indoor power distribution equipment with the rated voltage of 24KV. It’ s used for protecting controlling the electrical equipment in the fields of industry and mining enterprise, power plants and substation.This type vacuum circuit breaker conforms to national standards and the stipulation of IEC standard, the capability reaches grade of M2-E2-C2.
The product adopts composite insulation way,spring charged operation and rod push mechanism,with the characteristics of small volume, compact design and reliable operation. It can easily match with the switchgear and meet the “Five Preventions” demands.
This kind of vacuum circuit breaker can be used for many kinds of switchgear like KYN28-24(GZS1). This series of products include: VCB truck isolation truck and Fuse truck, etc.
The product adopts composite insulation way, spring charged operation and rod push mechanism, with the characteristics of small volume, compact
Short Description:
VS1-24 indoor HV vacuum circuit breaker is a 3-phase AC 50Hz 24kV indoor switch equipment
♦ Installation way: withdrawable type, fixed type, side mounted type;
♦ Operating mechanism: spring operating mechanism and permanent magnetic operating mechanism;
♦ Pole type: assembled pole, embedded pole;
♦ Application: sw.tchgear KYN28-24, XGN-24.
♦ Secondary plug: 58pins, 64pins.
Product Standards
♦ IEC62271-100 High Voltage Switchgear and Controlgear Part 100: AC Circuit-breakers
♦ GB1984 High Voltage AC Circuit-breakers
♦ GB/T11022 Common Specifications for High-voltage Switchgear and Controlgear Standards
♦ JB/T 3855 High Voltage AC Vacuum Circuit-breakers
♦ DL/T402 Specification of High-voltage AC Circuit-breakers
 |
 |
1. Ambient temperature: -10℃–+40℃
2. Ambient humidity: the average humidity of a day should be no more than 95％; the average humidity of a month should be no more than 90％;
3. Earthquake intensity: not exceed 8 degrees
4. Saturated vapor pressure: average pressure of a day should be no more than2. 2kPa，the average pressure of a month should be no more than 1.8kPa;
5.The height above sea level: less than 1000m;(not including special requirements)
6.1t should be installed in the places without fire, explosion, serious filth, chemical corrosion and violent VS1 ration.
