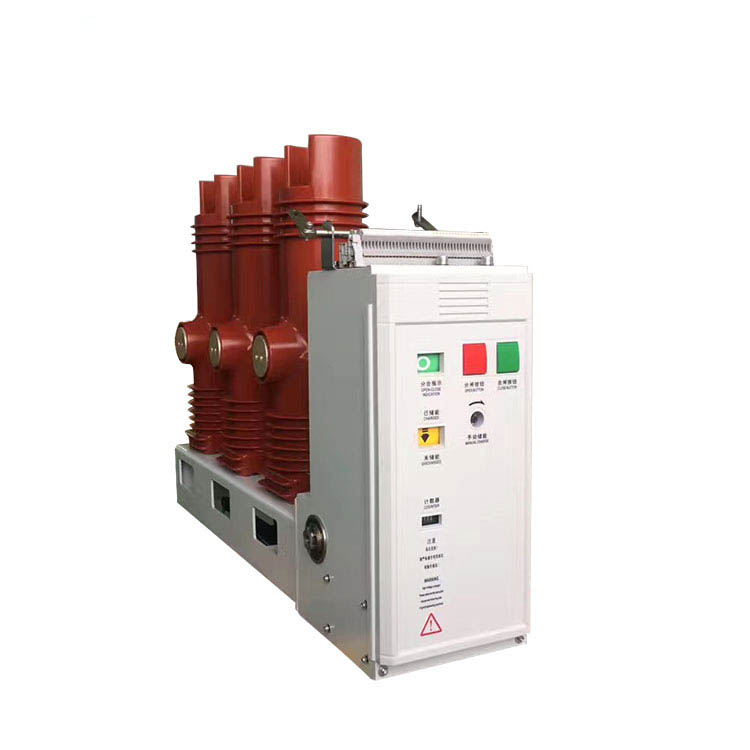

VSG indoor high voltage Side-mounted Vacuum Circuit Breaker is used for 12/24KV power system indoor switching equipment, as power grid equipment, industrial and mining enterprises power design protection and control unit, suitable for switching on and off loads of different nature and frequent operation, multiple times of short circuit current occasions. Product adopts the new type of circuit breaker operating mechanism, a VSG part can adopt international brand enclosed column, the vacuum arcing chamber and main electric circuit parts enclosed into a whole, to protect the arcing chamber from the effects of collision, dust and condensation, environment adaptable, greatly reduces the operation maintenance cost, realize the product a part of free maintenance, operation mechanism and less maintenance; Operation mechanism and circuit breaker body integrated design, through the type test verification.

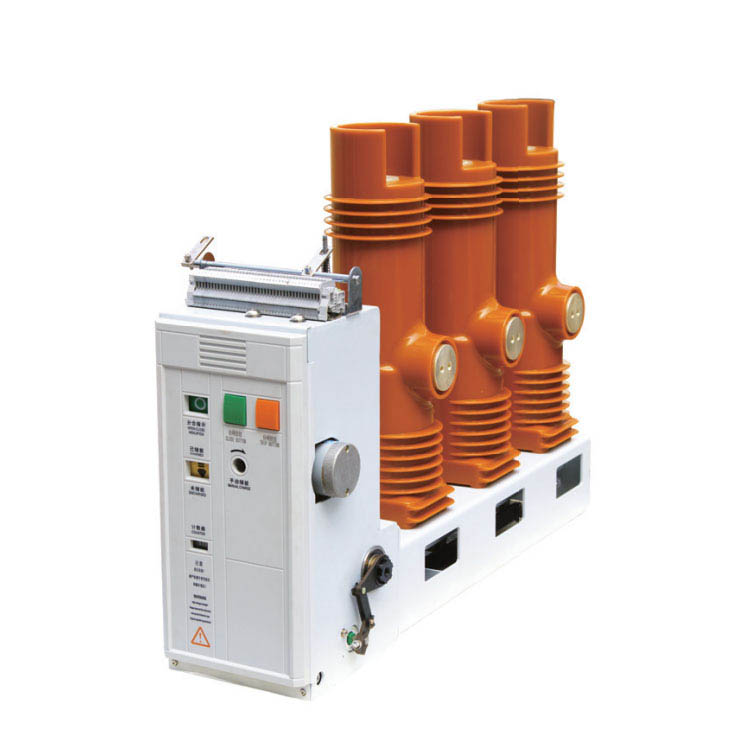

VSG-12C type side installation indoor high voltage vacuum circuit breaker is applicable to 12kv power system, as a protection and control unit of power equipment, industrial and mining enterprises, it can be used for switching loads of various kinds and frequent operation, repeatedly breaking short-circuit current situation. The product adopts new type of circuit breaker, a VSG part can adopt the international brand of embedded pole, the vacuum interrupter and the main circuit part is fixedly sealed into a whole, protect the interrupter from collision, dust and gel image, strong ability to adapt to the environment, greatly reduces the cost of operation and maintenance. The real implementation of the product part of a maintenance free, low maintenance operation mechanism; operating mechanism and circuit breaker body design, after type test, E2 level, M2 level of mechanical electrical life.
 |
 |
1. Ambient temperature: -25℃一+40℃
2. Relative humidity: the average humidity of a day should be no mare than 95％; the average humidity of a month should be no more than 90 ％.
3. Saturated vapor pressure: the average pressure of a day should be no more than 2. 2kPa, the average humidity of a month should be no more than 1.8kPa.
4. Earthquake intensity: not exceed 8 degrees.
5. Height above sea level: ≤1000m(not including special requirements)
6. Environmental conditions: It should be used in the places without fire, explosion, serious filth, chemical erosion and violent VSL ration.
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
