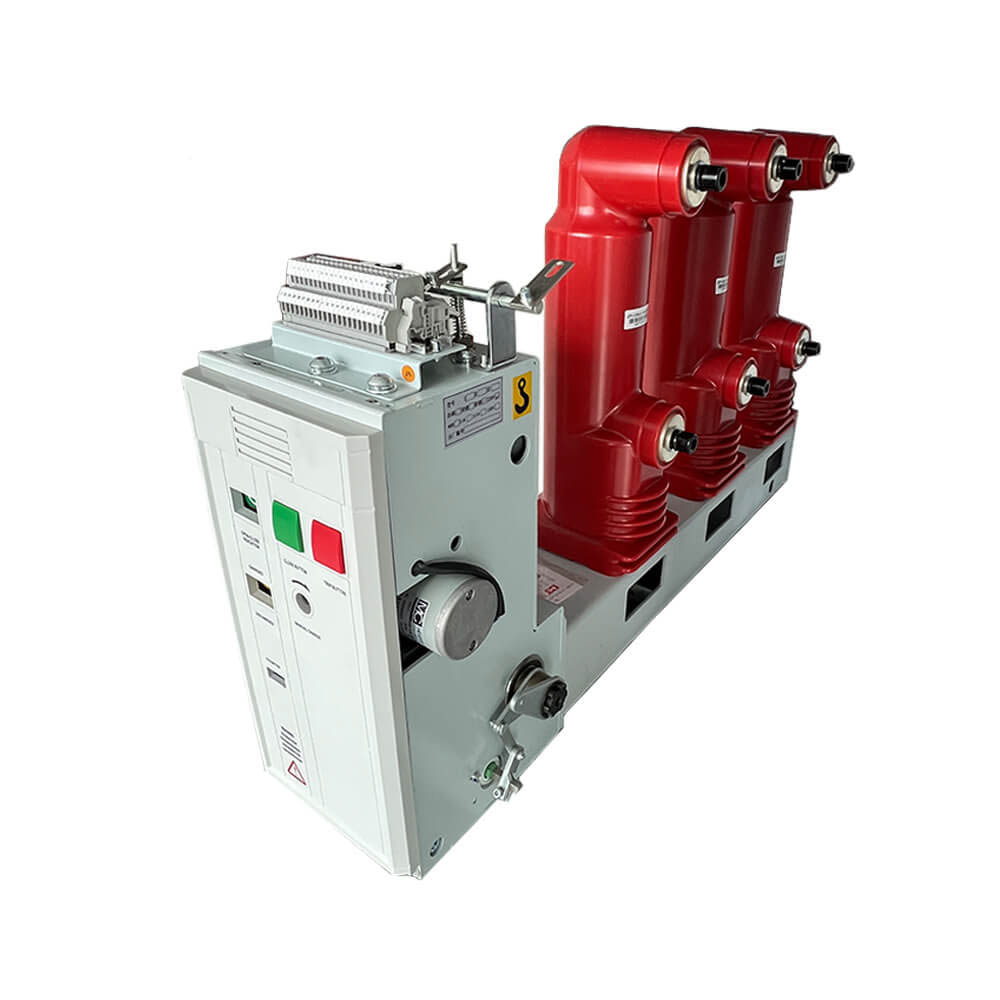

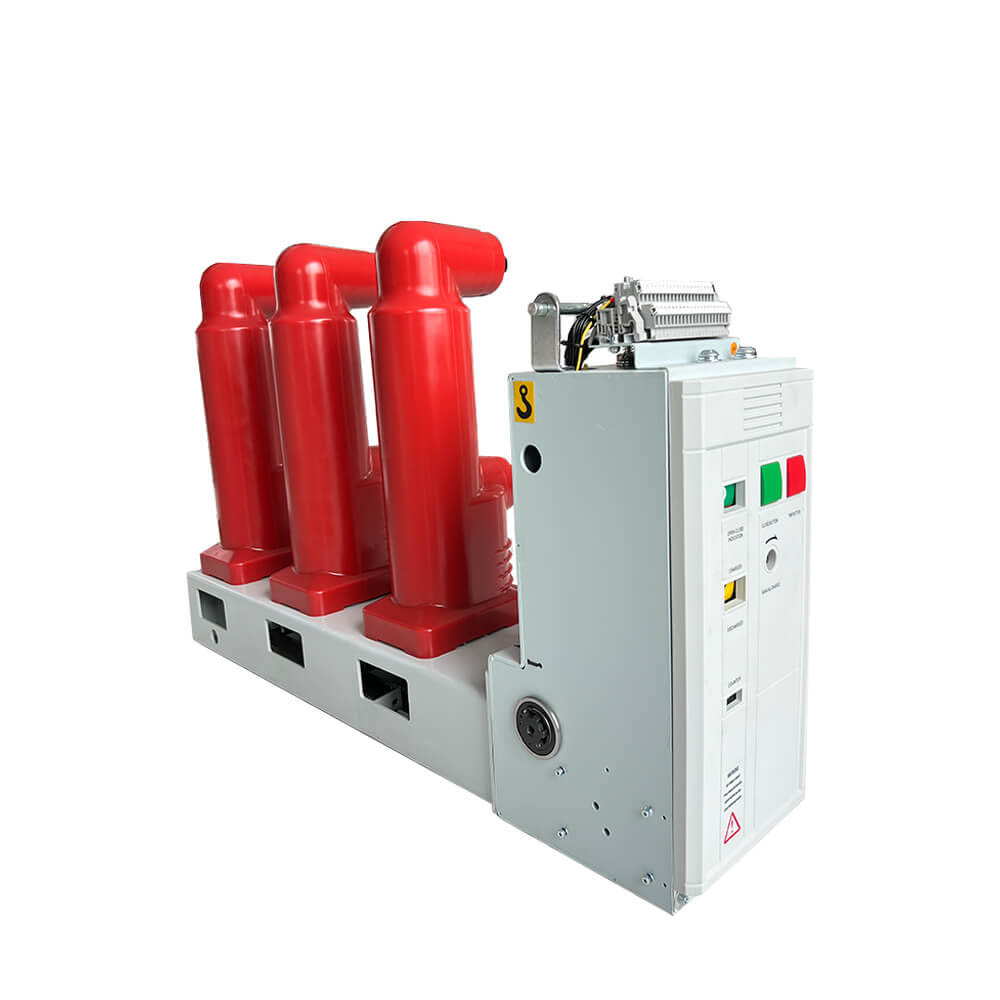

VSG-24C side-mounted indoor high-voltage vacuum circuit breaker is suitable for three-phase AC 50 (60) Hz, 24kV power system, for industrial and mining enterprises, power plants and substations as a switch between load current, overload current and fault current. It is suitable for frequent operation occasions. Widely used in power plants, power grids, petrochemicals, metallurgy, subways, airports, buildings and other projects.

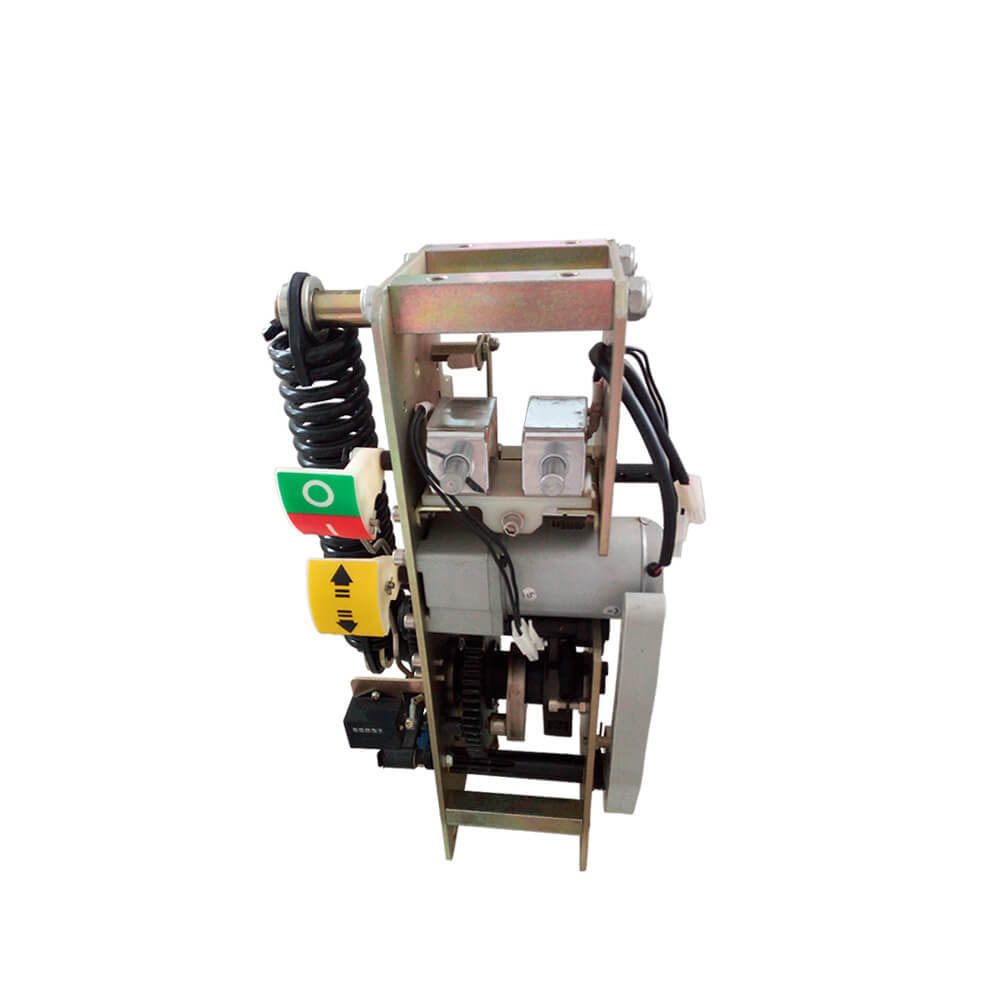

1. The circuit breaker adopts a modular operating mechanism and an integrated energy storage handle. The overall layout is reasonable, beautiful and simple;
2. The electrical components adopt a modular design, which is easy to disassemble and replace damaged electrical components;
3. The circuit breaker adopts solid-sealed poles, which improves the insulation performance of the circuit breaker;
4. High service life, the circuit breaker meets the M2 level of mechanical life and E2 of electrical life;
5. With excellent breaking performance, it can ideally fit inductive and capacitive loads;
VSG indoor high voltage Side-mounted Vacuum Circuit Breaker is used for 12/24KV power system indoor switching equipment, as power grid equipment, industrial and mining enterprises power design protection and control unit, suitable for switching on and off loads of different nature and frequent operation, multiple times of short circuit current occasions. Product adopts the new type of circuit breaker operating mechanism, a VSG part can adopt international brand enclosed column, the vacuum arcing chamber and main electric circuit parts enclosed into a whole, to protect the arcing chamber from the effects of collision, dust and condensation, environment adaptable, greatly reduces the operation maintenance cost, realize the product a part of free maintenance, operation mechanism and less maintenance; Operation mechanism and circuit breaker body integrated design, through the type test verification.
 |
 |
 |
1. Ambient temperature: upper limit +40°C, and the average value measured within 24 hours does not exceed 35°C; lower limit -15°C.
2. Altitude: no more than 1000m.
3. Relative humidity: the daily average value does not exceed 95%; the monthly average value does not exceed 90%;
4. Water vapor pressure: the daily average value does not exceed 2.2kPa, and the monthly average value does not exceed 1.8kPa;
5. The surrounding air is not obviously polluted by dust, smoke, corrosive or flammable gas, steam and salt spray
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
