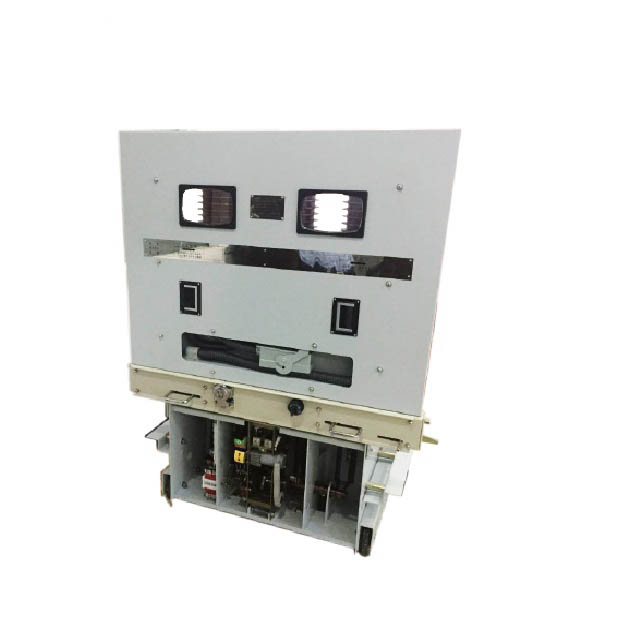

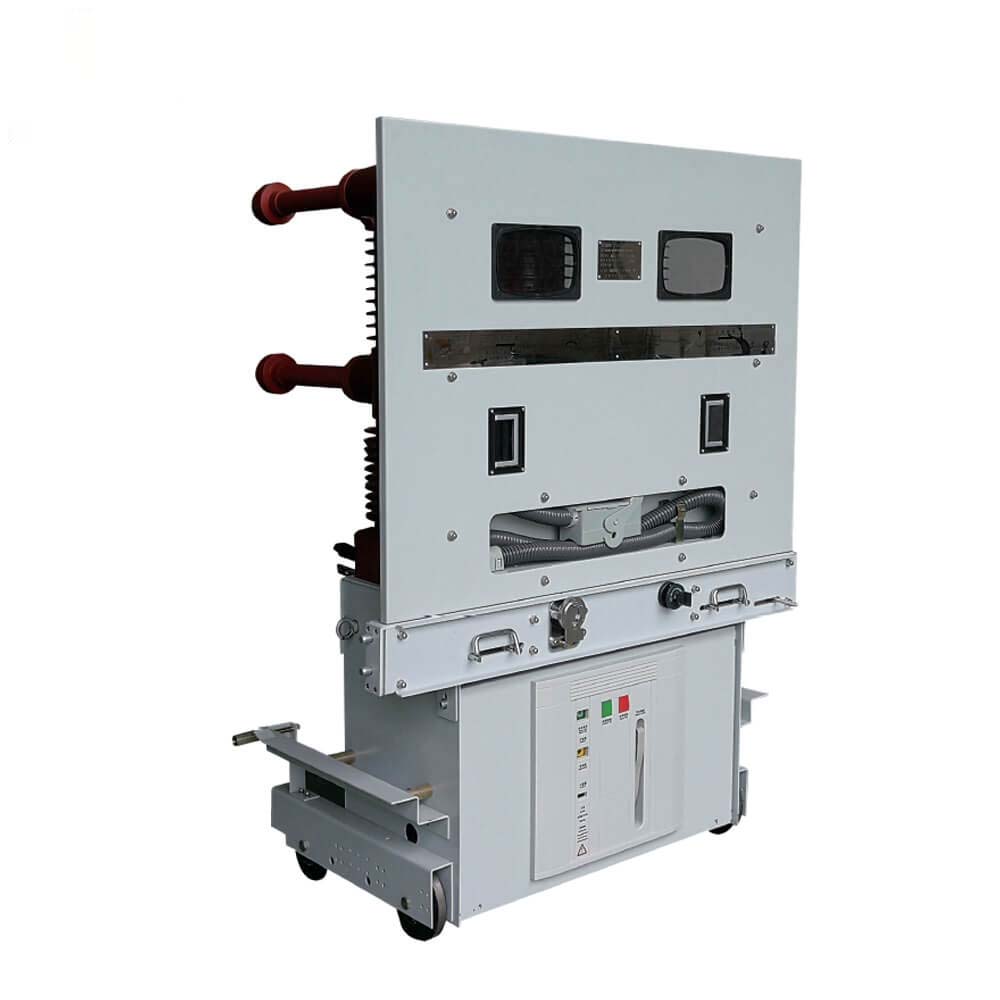

VSG-40.5KV High Voltage Withdrawable Indoor Floor Mounted Circuit Breaker

VSG-40.5 series vacuum circuit breaker is a new type of three-phase 50Hz according to the unique design concept and combined with the market demand and development, the rated voltage of indoor switchgear40.5kV, it can be provided to industrial and mining enterprises, powerplant and substation as the control and protection of electrical equipment,and is suitable for frequent operation.

Feature

• Isolation: Ensures operator safety during maintenance by separating the equipment from power supply.
• Trolley Design: Facilitates easy movement, installation, and replacement, enhancing operational agility.
• High Reliability: Built with premium materials and advanced techniques for stable, long-term performance in high-voltage settings.
• Comprehensive Protection: Features a full suite of safeguards, like overcurrent and overvoltage protection, to handle anomalies and safeguard equipment & systems.

Application site

• Substation: In a substation, the main switchgear is used to control the transmission and distribution of electrical energy, as well as to achieve rapid isolation in case of failure.
• Power plant: At the power output end of the power plant, it is used to safely connect electrical energy to the grid while providing isolation during maintenance or troubleshooting.
• Industrial and mining enterprises: in the self-provided power station or power system of large industrial and mining enterprises, it is used for power distribution and fault protection to ensure the safety and stability of production electricity.

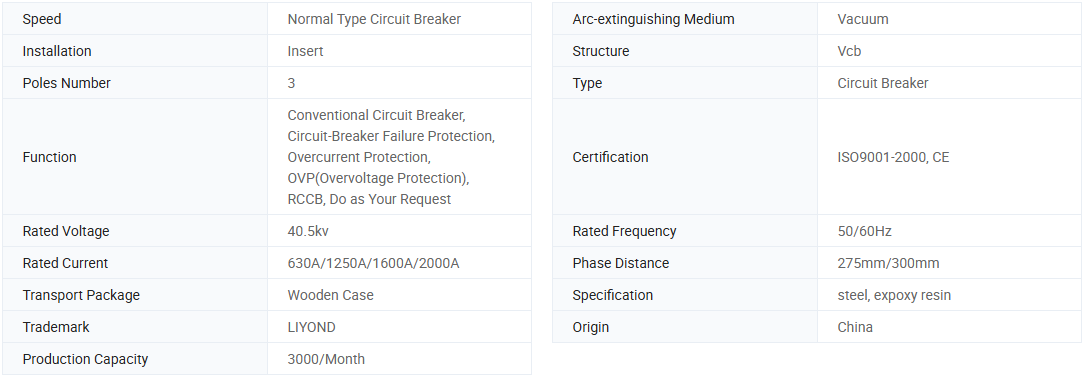

Basic Info.

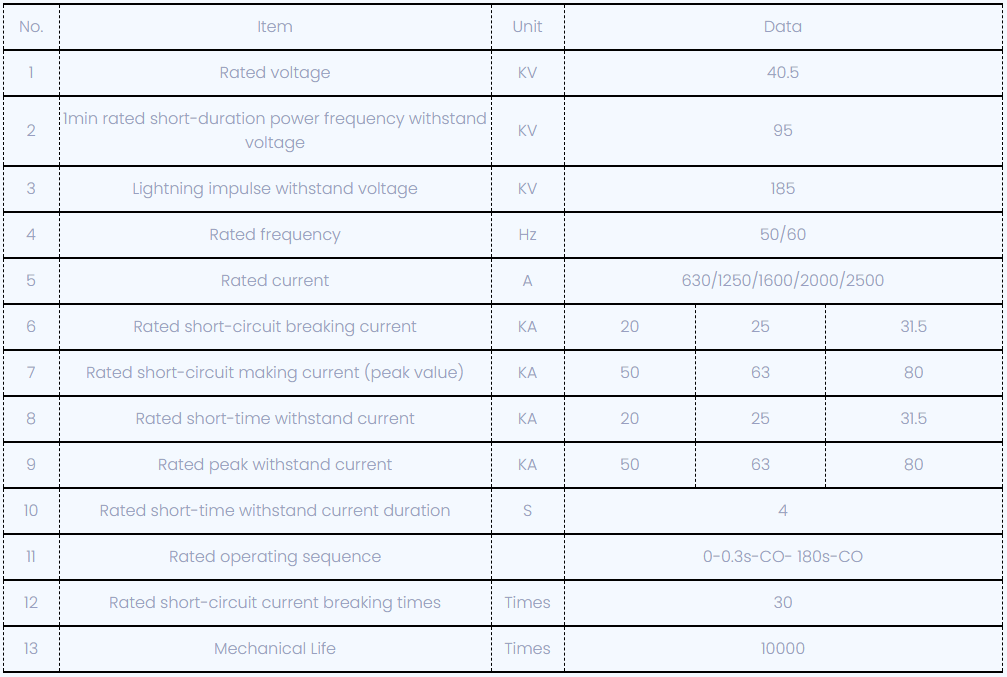

Technical Parameters

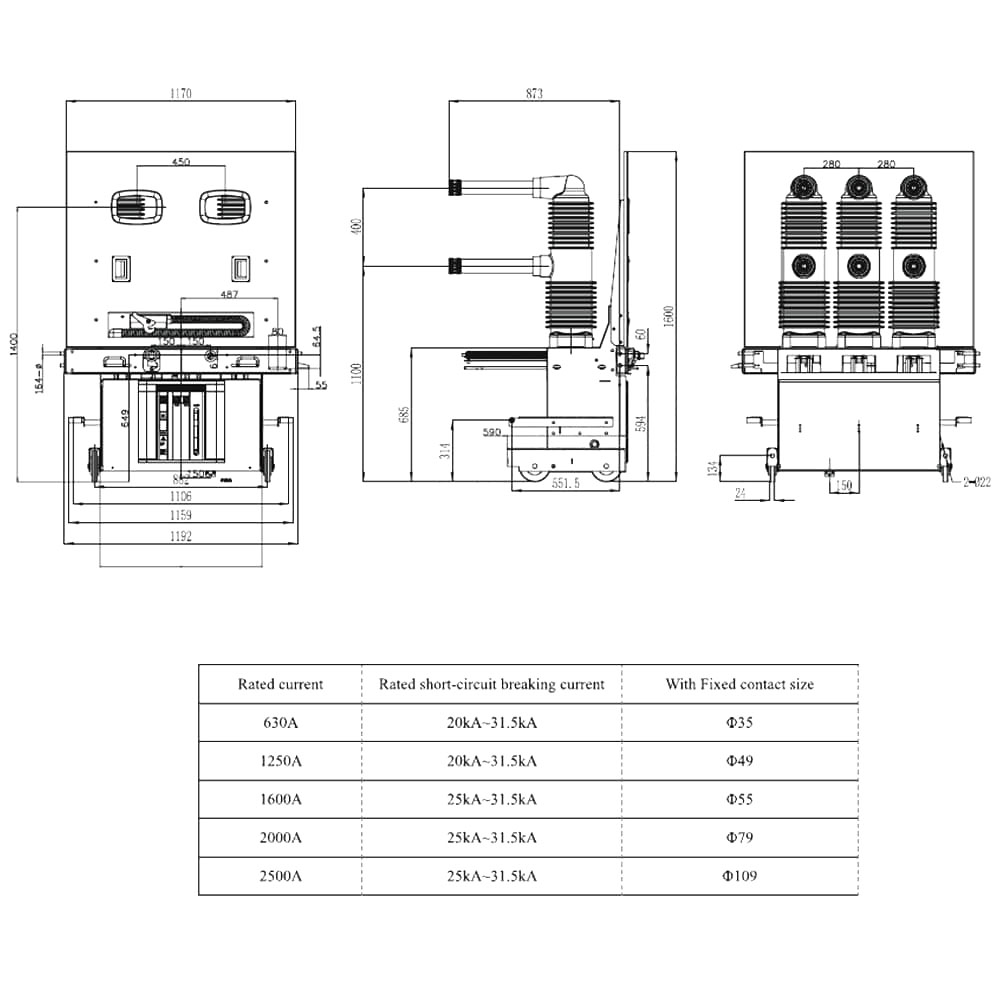

Technical Drawings

Applying Ambient Conditions:

1. Ambient temperature: -25℃一+40℃

2. Relative humidity: the average humidity of a day should be no mare than 95％; the average humidity of a month should be no more than 90 ％.

3. Saturated vapor pressure: the average pressure of a day should be no more than 2. 2kPa, the average humidity of a month should be no more than 1.8kPa.

4. Earthquake intensity: not exceed 8 degrees.

5. Height above sea level: ≤1000m(not including special requirements)

6. Environmental conditions: It should be used in the places without fire, explosion, serious filth, chemical erosion and violent  ration.
