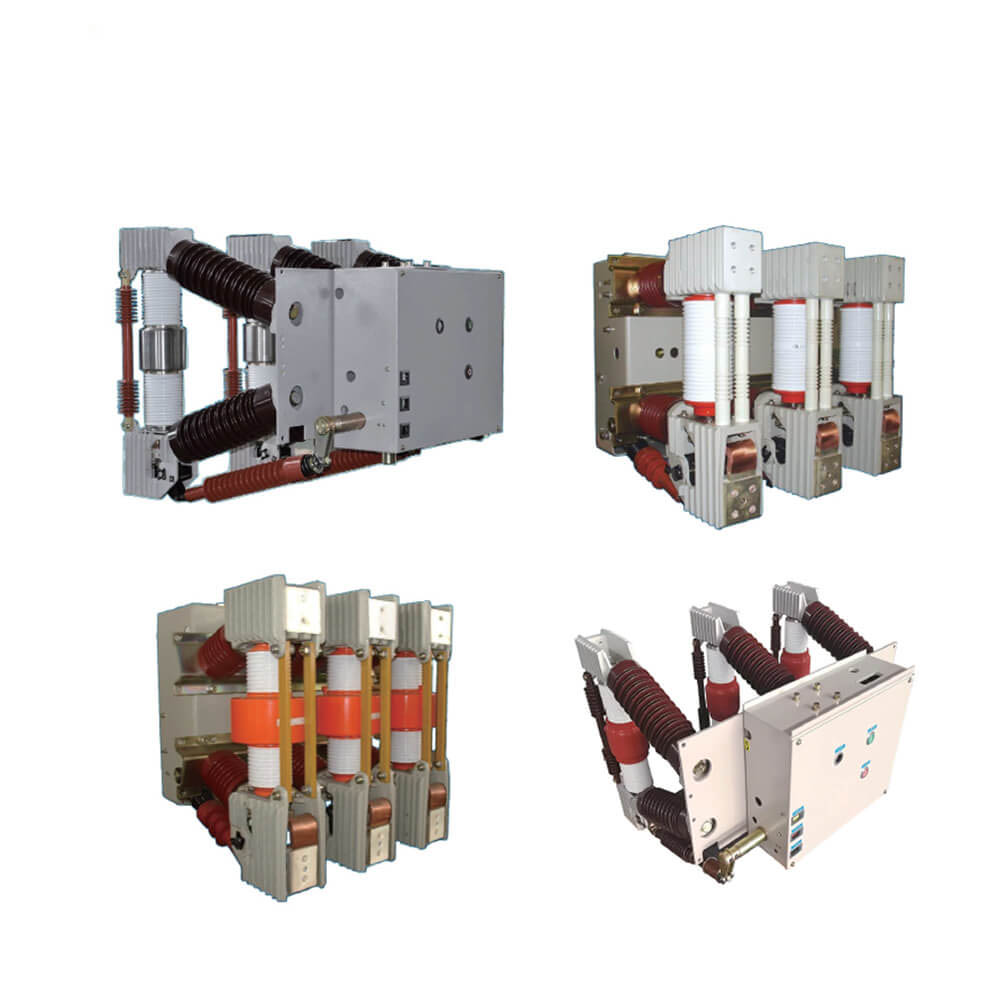

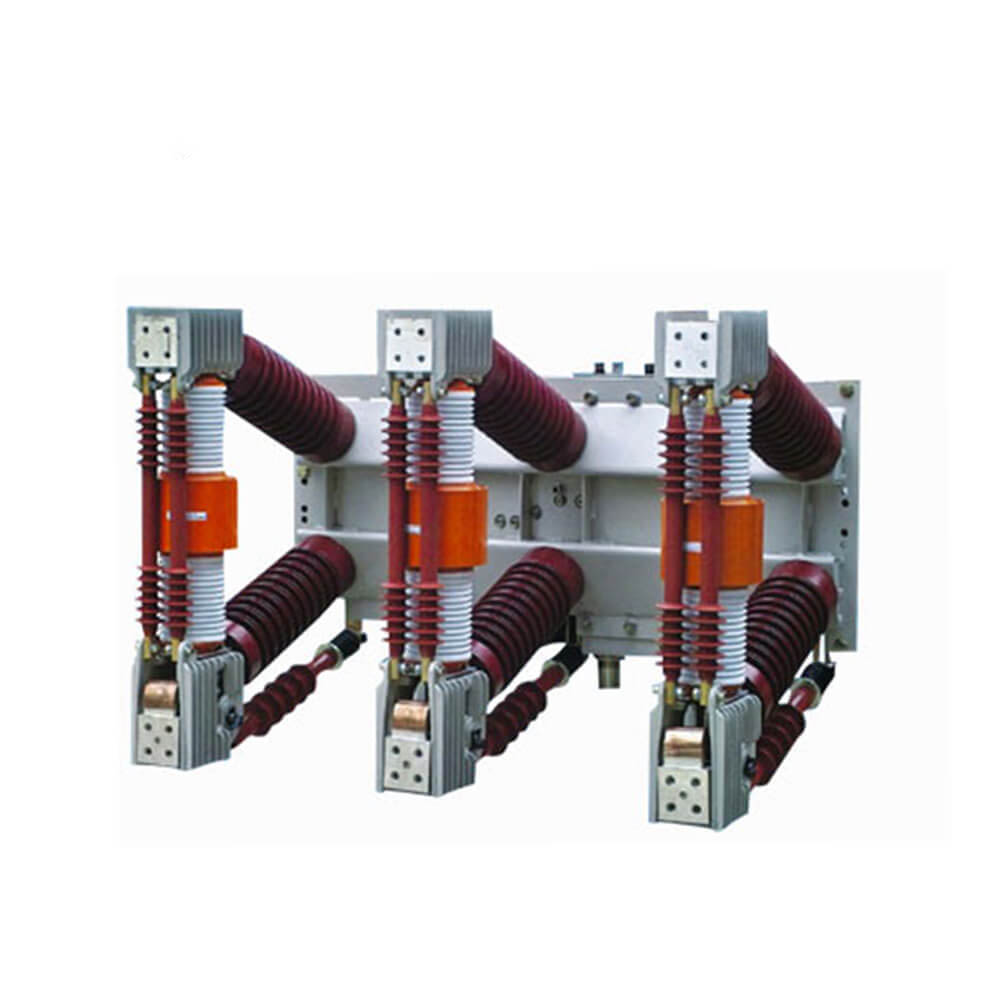

ZN12-12 indoor high-voltage vacuum circuit breaker rated voltage of 12KV and the following indoor high-voltage switchgear, mainly installed in fixed switchgear, for industrial and mining enterprises, power plants and substations for the protection and control of electrical facilities, and is suitable for breaking important loads and frequent operation of the place!
ZN12 series vacuum circuit breakers are indoor high-voltage switchgear device with rated voltages of 12kV, 24kV, and 40.5kV, and three-phase AC 50Hz. It is a domestic product developed by introducing German Siemens 3AF technology.The operating mechanism of the circuit breaker is a spring energy storage type, which can be operated by AC or DC, or manually. The circuit breaker has simple structure, strong breaking capacity, long service life and complete operation functions. And there is no danger of explosion, and the maintenance is simple. It is suitable for the control or protection switch of power transmission and distribution systems such as power plants, substations and industrial and mining enterprises, especially suitable for breaking important loads and frequent operation places. The installation form of the circuit breaker in the switch cabinet can be either a fixed type or a withdrawable type circuit breaker.This product complies with relevant standards such as GB1984, JB3855 and IEC62271-100 “High Voltage AC Circuit Breaker”.
Advantages:
1.The circuit breaker passed the appraisal of the Ministry of Machinery and the Ministry of Electric Power in August 96th,which means the quality is absolutely guaranteed.
The circuit breaker mechanism is integrated with the switch, and the special spring energy storage type actuator mechanism can be operated by AC and DC energy storage or manually operated.
With simple structure, strong breaking capacity, long service life, complete operation functions, no explosion danger and easy maintenance, this circuit breaker is suitable for control or protection switch of power transmission and distribution system such as power plant, city power grid, substation, etc. It is especially suitable for breaking important loads and places with frequent operation.
Features:
1. The breaking capacity of the arc extinguish chamber is high, the current carrying capacity is low, and the electrical life is long.
2. layout is from front to back, simple and compact structure, complete operation and easy maintenance.

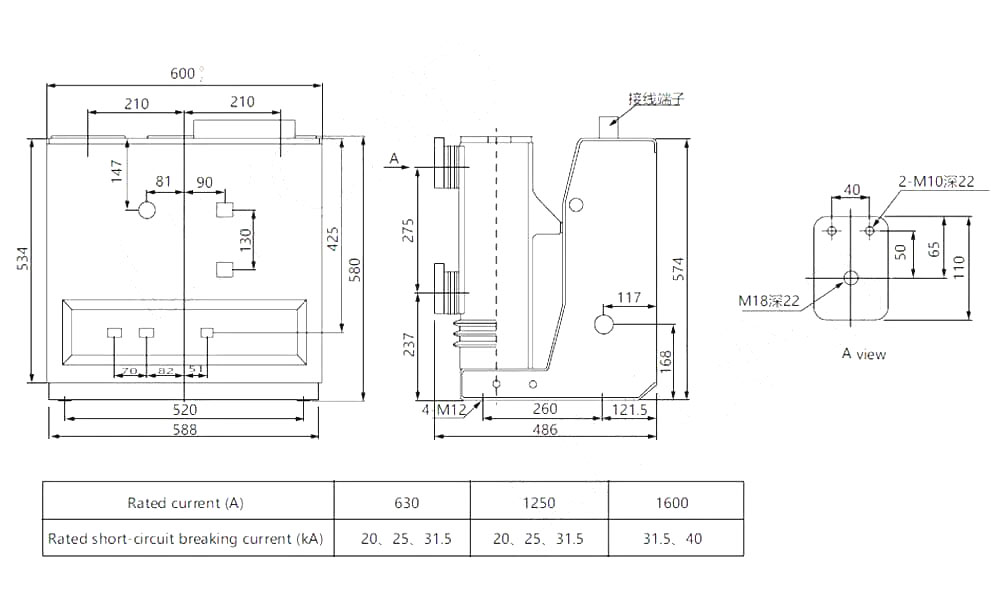

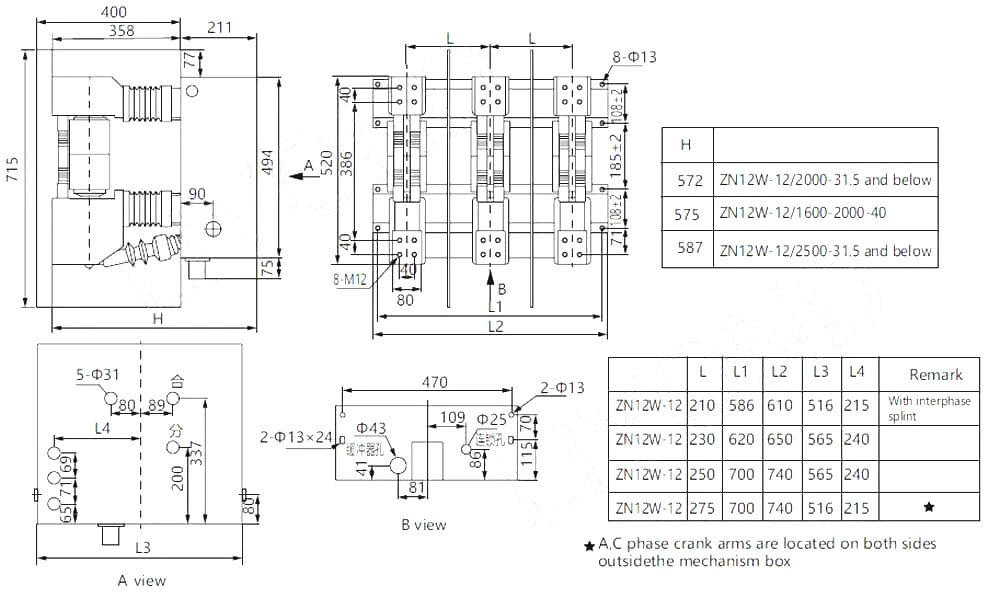

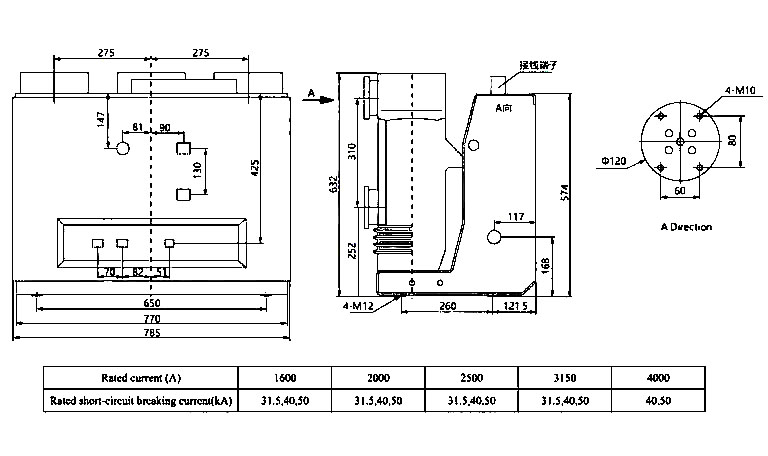

3. In order to structure and installation, they can be divided into: Horizontal fixed type, inclined fixed type, middle set movable type.
 |
 |
2. Ambient temperature: highest +40°C, lowest -25°C;
3. Relative humidity: daily average not more than 95%, monthly average not more than 90%;
4. Earthquake intensity: less than 8;
5. Installation environment: no fire, explosion hazard, no corrosive gas and no violent vibration place.
6. Please contact the vacuum circuit breaker manufacturer if the usage environment exceeds the above.
Q: Could I have prices of your products?
A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.
Q: Can I get a sample before the bulk order?
A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q: Can we print our logo/ company name on products?
A: Yes, of course, we accept OEM, then need you to provide brand authorization to us
Q:Do you accept product customization?
A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation
Q: What is the lead time?
A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.
Q: What is your Trade Terms?
A: We accept EXW, FOB, CIF, FCA, etc.
Q: What is your payment method?
A: We accept T/T, Western Union, Paypal, irrevocable L/C at sight, etc
Q: Do you inspect the finished products?
A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment
Q: How to solve the quality problems after sales?
A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
