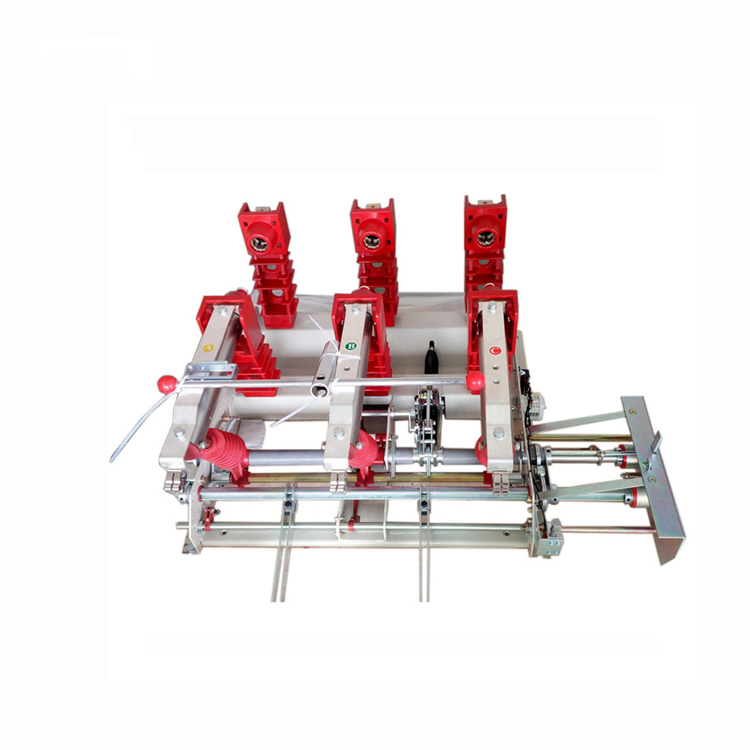

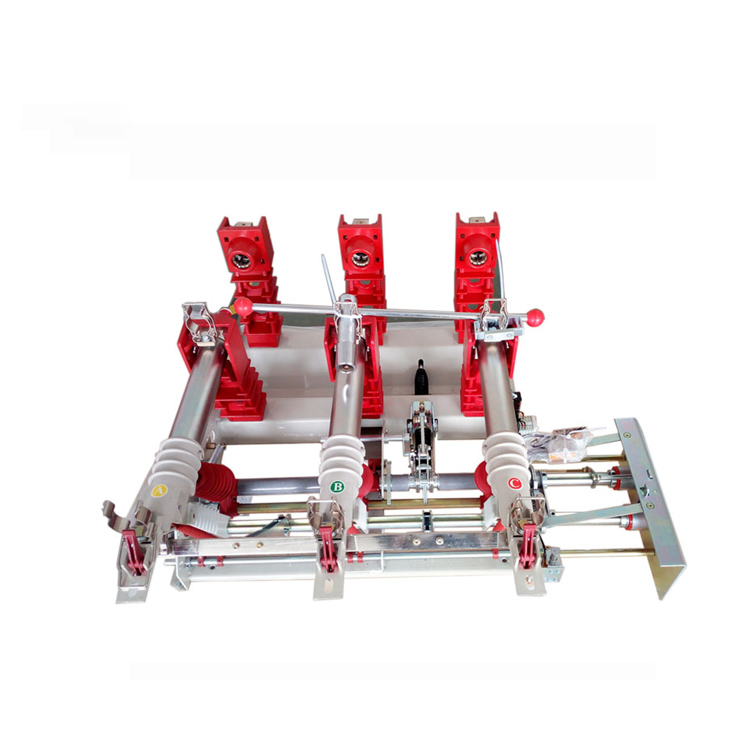

FKRN24D when load break switch equip with high voltage current limited fuse(with striker), it comes into being load break switch and fuse combination apparatus, acting as protecting and control apparatus for transformers, cable and overhead wiring. When a phase or multiphase fuse fusing, load break switch automatic brake three-phase.
These series load break switch are especially applicable in rural, urban terminal substation and prefabricated substations, as well as ring network power supply.
The FKRN24D type load protector is equipped with an overvoltage protection device (with an insurance mechanism). It serves as both a load protector and a protection and control combined device, and can be used as a protective and control device for transformers, cables, and ventilation ducts. In a single or multiple safety protection systems, a load overload will automatically trigger the braking trigger point.
 |
 |
|
No. |
Item |
Unit |
Data |
| 1 |
Rated voltage |
kV |
24 |
| 2 |
Rated power frequency |
Hz |
50 |
| 3 |
Rated current |
A |
630 |
| 4 |
Maximum rated current(fuse) |
A | 80 |
| 5 |
Rated active load open circuit current, rated closed-loop open circuit current |
A | 630 |
| 6 |
Rated short-time withstand current(2s) |
KA | 20 |
| 7 |
Rated short circuit making current, rated peak withstand current |
KA | 50 |
| 8 |
1min PF withstand voltage(phase to phase, phase to earth, across open contacts) |
KV | 65/79 |
| 9 |
Lightning impluse withstand voltage(peak)(phase to phase, phase to earth, across open contacts) |
KV | 125/145 |
| 10 |
Rated cable charging breaking current |
A | 16 |
| 11 |
Mechanical life |
time |
2000 |
| 12 |
Rated breaking transfer current |
A | 1050 |
| 13 |
Rated short circuit breaking current(fuse) |
KA | 31.5 |
