FN18 12kV 3 Phase Gang Operated Air Load Break Switch With Earthing Device And Fuse Switch Nalf
  • FN18 12kV 3 Phase Gang Operated Air Load Break Switch With Earthing Device And Fuse Switch NalfFN18 12kV 3 Phase Gang Operated Air Load Break Switch With Earthing Device And Fuse Switch Nalf
  • FN18 12kV 3 Phase Gang Operated Air Load Break Switch With Earthing Device And Fuse Switch NalfFN18 12kV 3 Phase Gang Operated Air Load Break Switch With Earthing Device And Fuse Switch Nalf

FN18 12kV 3 Phase Gang Operated Air Load Break Switch With Earthing Device And Fuse Switch Nalf

Model:FN18-12DR
FN18 load switches and load switch-fuse combinations are high-voltage, high-performance load switches combining compressed-air arc extinguishing and gas-produced arc extinguishing. The combination of load switch and fuse combines the advantages of the load switch with those of the fuse to switch any load current up to the rated breaking current of the load switch, and to switch any overcurrent up to the rated short-circuit breaking current of the combination by means of the operation of the fuse and its impinger. It is used in three-phase power distributions of AC 50Hz rated voltage 12kv and rated current 630A Esp For power ring network in city net work construction improvement high-rise buildings and public facilities as an ideal product to protect package substation and transformer It has the features of advanced design simple operation impact structure smart appearance light weight complete function fast on-and off speed and high reliability.

We are committed to developing Load Switch, Outdoor High Voltage Auto Recloser, Indoor Voltage Vacuum Breaker that are closer to the needs of consumers and provide consumers with better products. We always take rewarding society as a blessing and take the prosperity and revitalization of the motherland as our own responsibility. Our company takes our enterprise reputation and staff quality ahead of enterprise development as our development guarantee. We insist on the idea of science and technology is the first productive force. With our technical skils, efficient management and high-quality products, we have won praise from our customers with our cost-effective goods.


FN18-口is a general purpose, three-pole, load break switch that offers switchgear owners and assemblers the advantages of an advanced interrupting technology and proven, dependable performance in a compact design. The switch is available to switchgear assemblers as a building block for metal-enclosed and pad-mounted switchgear applications in ratings from 12-40.5 kV.

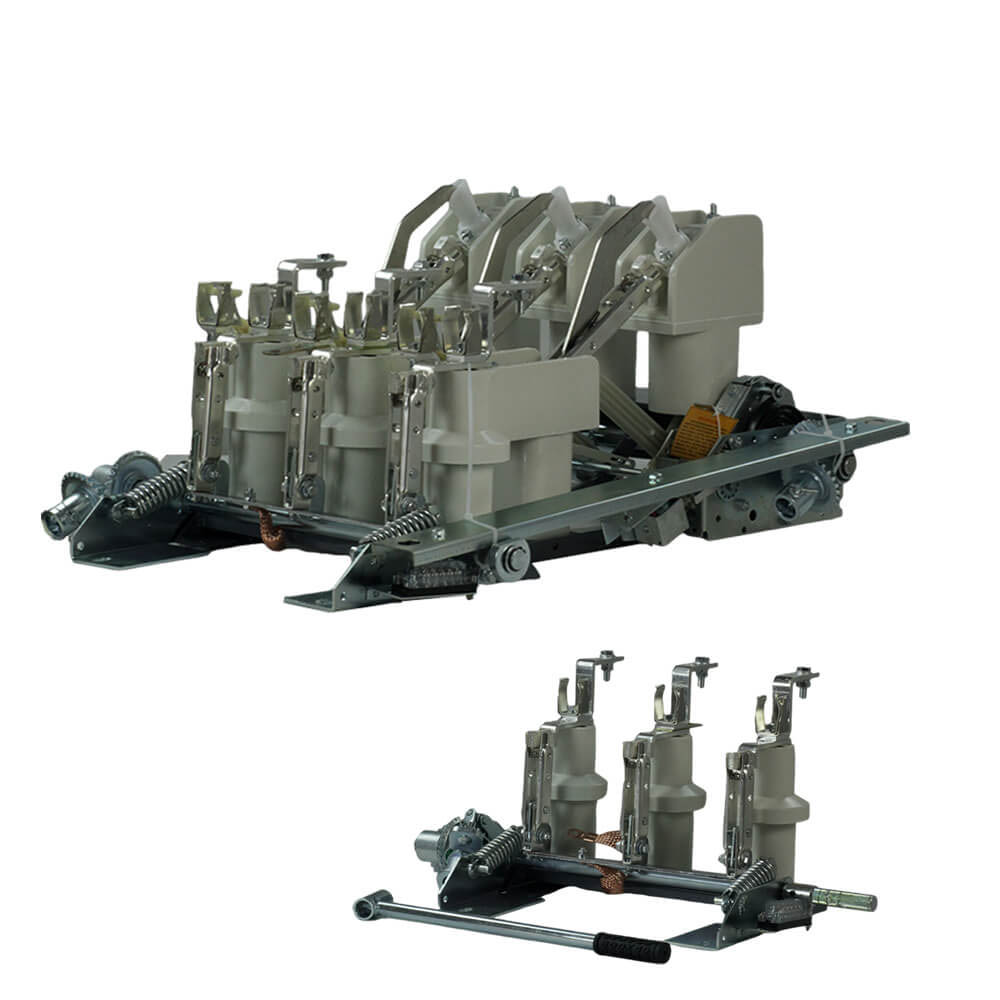

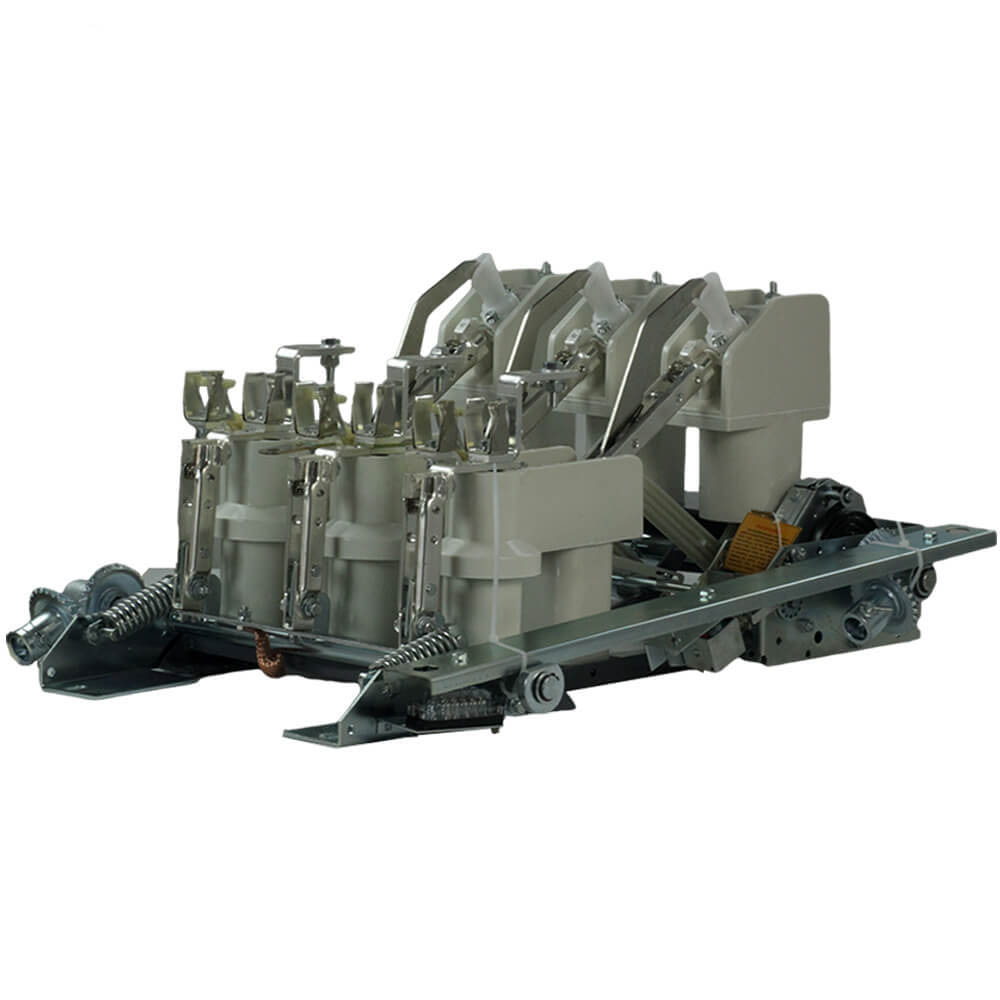

The standard FN18 switch includes a heavy-duty steel frame with stand-off insulators, a unique puffer-type arc extinguishing system, an operating mechanism and current-carrying components, including blade-type interrupters with cast hinges and jaw connectors.

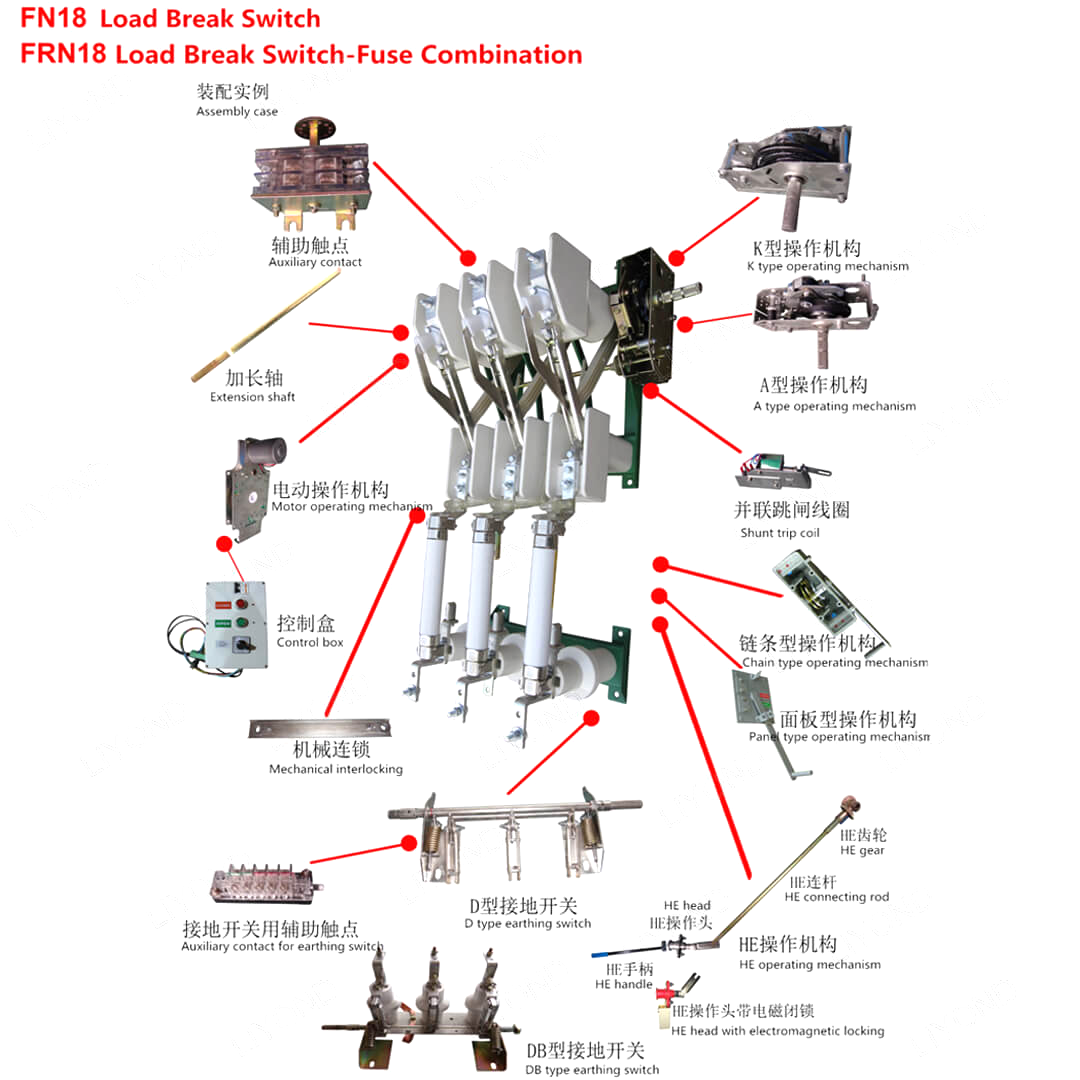

Optional accessories and features include a variety of operating handles, a motor operator, auxiliary switches, a shunt trip device, fuse bases, mechanical fuse tripping, grounding switches, mechanical door interlocking and key interlocking.

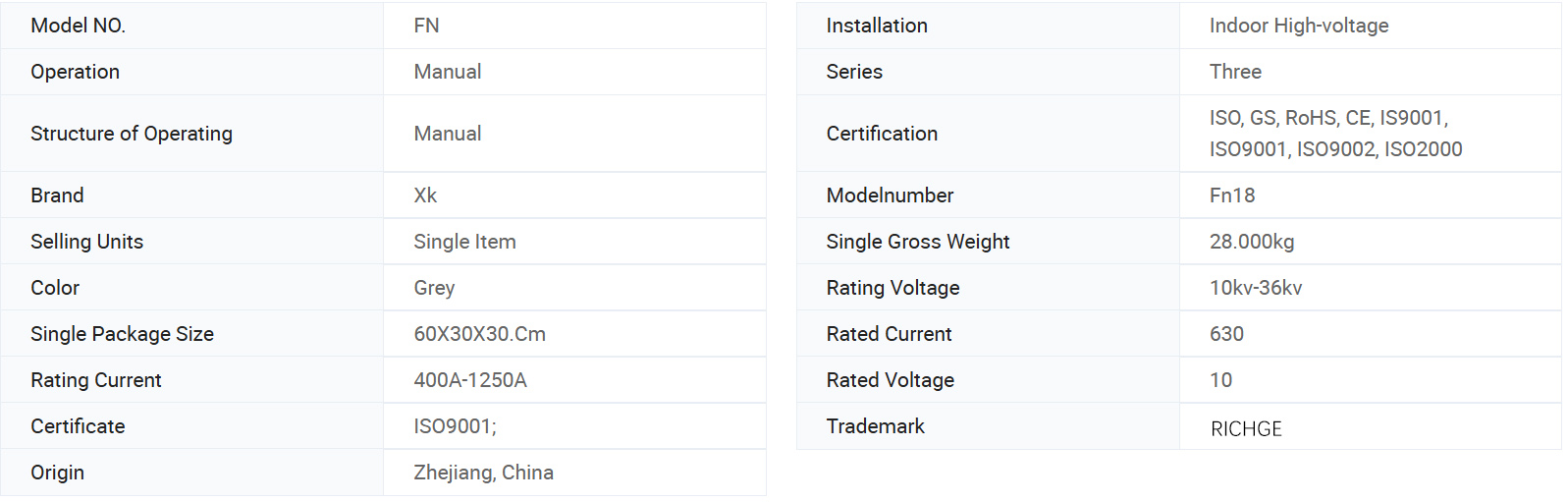

Basic Info.



Structure

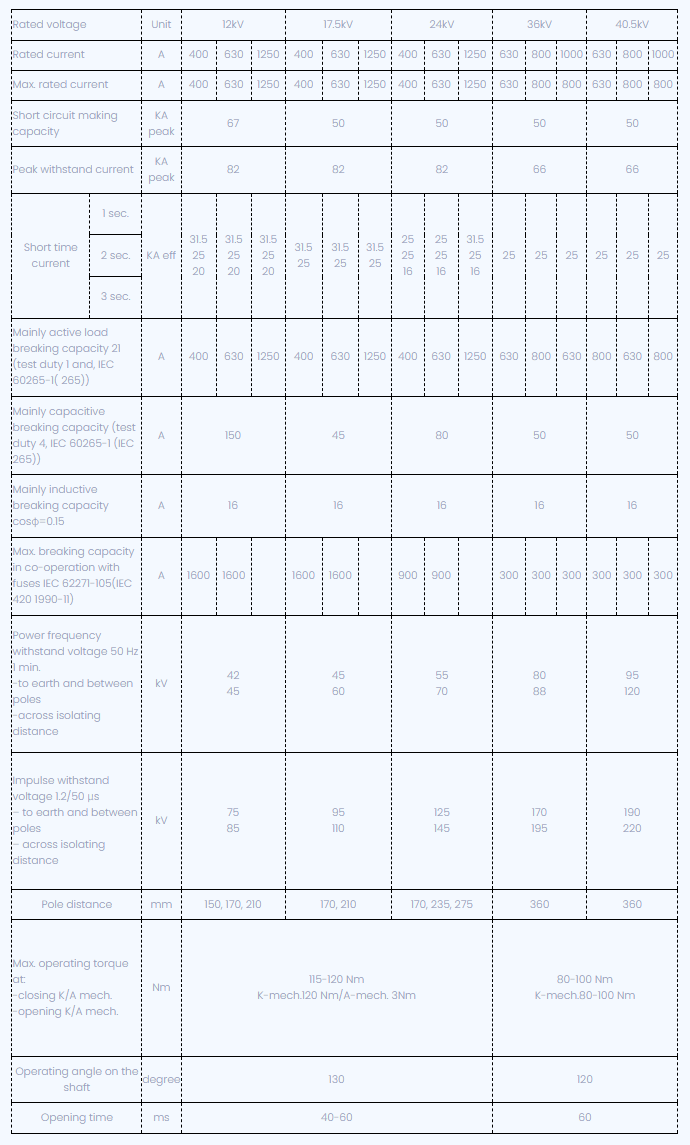

Technical parameter

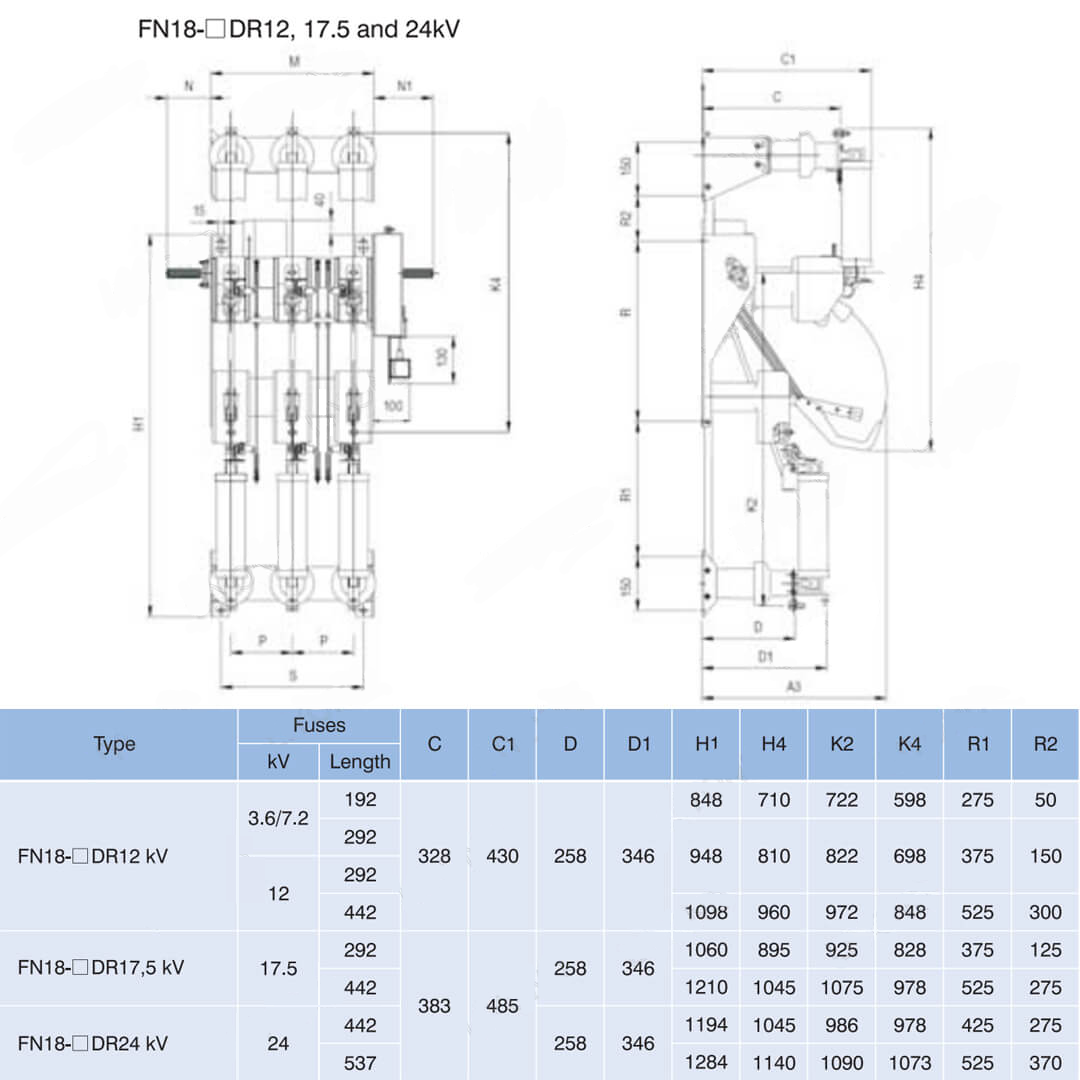

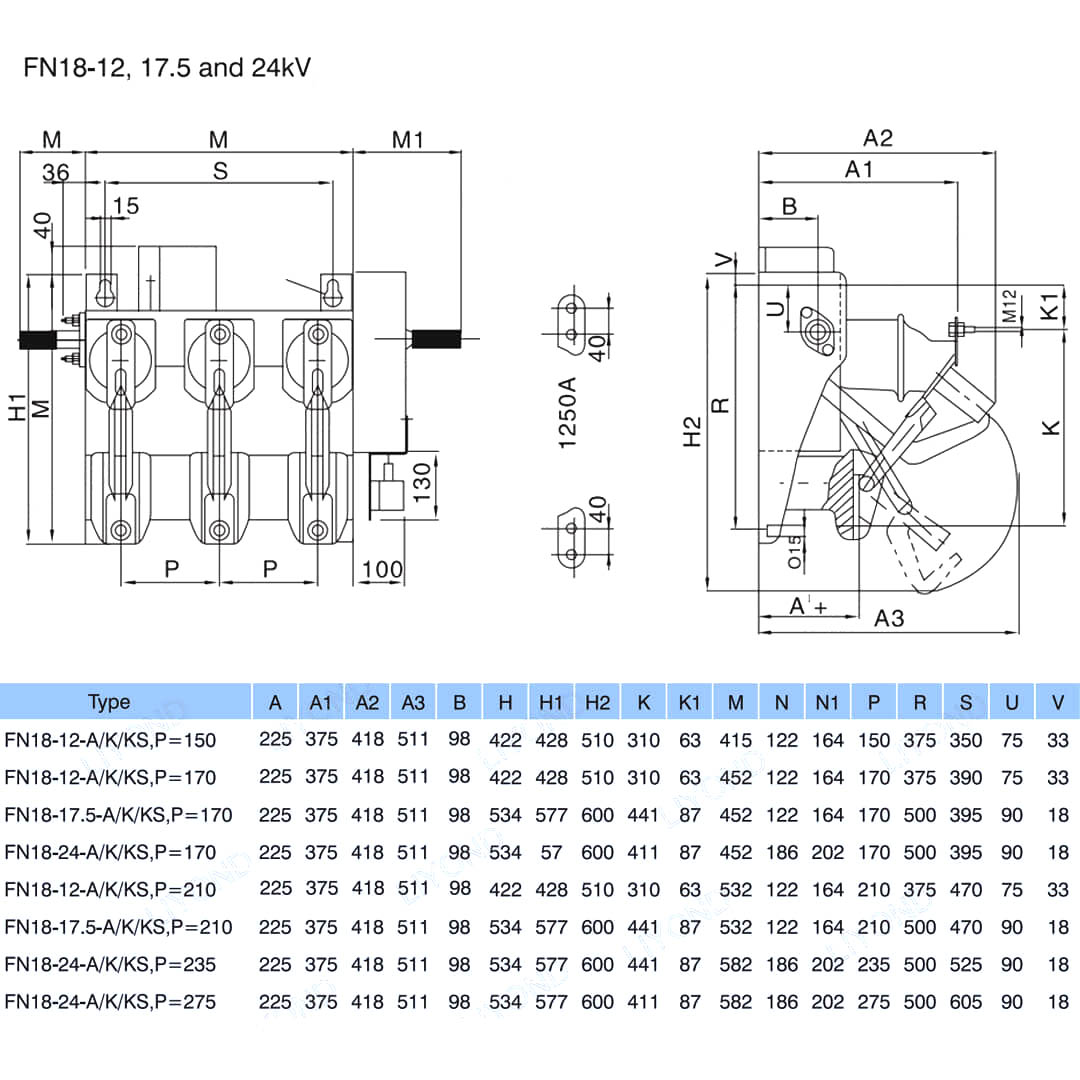

Model & Drawing






FAQ

Q: Could I have prices of your products?

A: Welcome. Please feel free to send us inquiry here. We will reply you within 24 hours.

Q: Can I get a sample before the bulk order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: Can we print our logo/ company name on products?

A: Yes, of course, we accept OEM, then need you to provide brand authorization to us.

Q:Do you accept product customization?

A:Yes, of course, please provide specific drawings or parameters, we will quote you after evaluation.

Q: What is the lead time?

A: The lead time depends on the quantities ordered, generally within 7-20 days after receiving the payment.

Q: What is your Trade Terms?

A: We accept EXW, FOB, CIF, FCA, etc.

Q: What is your payment method?

A: We accept T/T, Western Union, Paypal, etc.

Q: Do you inspect the finished products?

A: Yes, each step of production and finished products will be came out inspection by QC department before shipping. And we will provide goods inspection reports for your reference before shipment

Q: How to solve the quality problems after sales?

A: Take photos of the quality problems and send to us for our checking and confirming, we will make a satisfied solution for you within 3 days.
